VARITO VT-DS212 Optical Swing Turnstile
VARITO VSB-1802B Speed Gate Turnstile is a high-speed entrance control solution designed to deliver secure, reliable, and efficient access management for a wide range of applications. Combining advanced security performance with a modern and elegant design, it offers a premium passage solution for facilities that require both protection and convenience.
The VARITO Speed Gate Turnstile is ideal for environments such as corporate offices, universities, hospitals, airports, railway stations, banks, shopping centers, supermarkets, and government buildings. It is engineered to prevent unauthorized access while ensuring fast and smooth movement for authorized users. The system can be integrated with a variety of access control technologies, including RFID readers, bio-metric systems, bar-code scanners, and other authentication devices.
Built with high-quality stainless steel and tempered glass, the speed gate offers excellent durability, long service life, and dependable performance even in high-traffic areas. Its sleek and contemporary appearance enhances the professional image of any facility while maintaining strong security standards.
Product Details:
| Brand: | VARITO |
| Model | VVSB-1802B |
| Passage width | 600–900mm |
| Indicator Display | Blue, Green and Red LED Indicator |
| Sensor |
Infrared sensor alarm function/pcs |
| Function |
Anti-intrusion and Anti-reverse |
Many Features
Infrared sensor alarm function
In case of illegal intrusion and reverse intrusion
Anti-intrusion function
The gate is locked automatically until a valid opening signal is input
Anti-reverse function
The turnstile alarms if someone tries to enter in the reverse direction
Anti-trailing function
The speed gate alarms if someone attempts to pass through without permission
Secure and Reliable
Advanced security features such as bio-metric authentication
LED indicator
Blue, Green and Red LED indicator display passing status
Easy to install
Easy to install and maintain
Mechanism self-protection
Arm length can range from 600mm up to 900mm
Specification
| Item | Details |
|---|---|
| Product Size | 1400×180×1000mm |
| Material | SUS 304 stainless steel; vacuum plating |
| Thickness | 1.2mm |
| Passage Direction | Single directional / Bi-directional |
| Passage Width | 600mm (Customizable up to 900mm) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30 persons/min (Using Card) |
| Reaction Time | 0.2s |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | -20°C to +70°C |
| Power Input | AC220V, 50Hz |
| Power Input | AC110~220V ±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor (12V/3A) |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Product Description
The VARITO VT-DS212 Optical Swing Turnstile
A Legacy of Security Excellence
Combining advanced security performance with a modern and elegant design, it offers a premium passage solution for facilities that require both protection and convenience. When you choose VARITO, you are aligning with a brand built on the pillars of innovation and reliability. VARITO has established itself as an industry authority by consistently delivering products that withstand the test of time and high-frequency usage. The brand’s commitment to quality ensures that every component of the VT-DS212, from its stainless steel chassis to its internal logic board is crafted for peak performance.
Optimizing Your Entry Experience
Built with high-quality stainless steel and tempered glass, the speed gate offers excellent durability, long service life, and dependable performance even in high-traffic areas. While the VT-DS212 is the gold standard for luxury lobbies, VARITO provides a versatile range of entry solutions tailored to different security needs. For high-volume areas requiring rugged durability, the VARITO Tripod Turnstile is an excellent choice. If your facility demands a blend of visual appeal and security, the VARITO Flap Barrier Gate offers an ideal middle ground. For maximum perimeter protection in sensitive areas, the VARITO Full-Height Turnstile Gate ensures total entry control.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

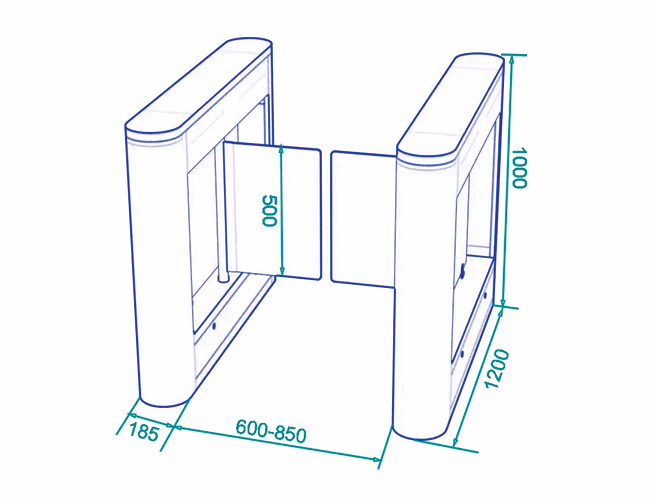

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
The VARITO VT-DS212 Optical Swing Turnstile
In the evolving landscape of 2026, where corporate aesthetics are as vital as high-level security, the VARITO VT-DS212 Optical Swing Turnstile stands as the ultimate synthesis of form and function. Designed for environments that demand a prestigious look without sacrificing safety, the VT-DS212 provides a frictionless access control experience. As a cornerstone of the modern smart building, this optical swing turnstile ensures that your lobby remains secure, stylish, and highly efficient.
Key Features of Flap Barrier
- High-Speed Throughput: Capable of processing up to 40 people per minute, reducing bottlenecks during peak hours.
- Advanced Safety Logic: Anti-pinch and anti-collision technology ensures that the arms stop or reverse if an obstruction is detected, protecting pedestrians.
- Intelligent Alarms: The system instantly triggers a notification for tailgating, reverse entry, or unauthorized intrusion.
- Wide Lane Design: Design for disabled access and smooth pedestrian flow
- High-Speed Operation: Ensures quick entry and exit without congestion
- Durable Build: Premium stainless steel body for long-lasting performance
- Anti-Tailgating Function: Prevents unauthorized multiple entries
- Silent Operation: Smooth and noiseless flap movement
- Emergency Mode: Compliant with fire safety regulations, the arms automatically open during a power failure to provide an unobstructed exit path.
Why the VT-DS212 Defines Modern Access
The VT-DS212 is not just a gate; it is an intelligent security asset. Featuring a sleek 304-grade stainless steel body and transparent Plexiglas arms, it blends seamlessly into the architecture of banks, hotels, and luxury office spaces. Unlike traditional physical barriers, the “optical” nature of this swing gate relies on a sophisticated array of high-density infrared sensors to monitor passage with pinpoint accuracy.
The Benchmark of Security Innovation
The VARITO brand has long been a symbol of excellence in the security industry. By prioritizing precision engineering and user-centric design, VARITO has become the go-to authority for facilities that require 24/7 reliability. When you invest in a VARITO VT-DS212, you are not just buying hardware; you are adopting a security legacy built on durability and cutting-edge software integration.
While the VT-DS212 excels in high-aesthetic indoor settings, VARITO offers a complete ecosystem of entrance solutions. For high-volume pedestrian control in gyms or factories, the VARITO Tripod Turnstile remains a robust favorite. If your facility requires a more visual barrier with rapid movement, the VARITO Flap Barrier Gate is an excellent alternative. For maximum security at sensitive perimeters, the VARITO Full-Height Turnstile Gate provides an un-climbable, iron-clad solution.
To build a complete security ecosystem, VARITO also offers:
1. VARITO Full Height Turnstile
2. VARITO Tripod Turnstile Gate
3. VARITO Flap Barrier Gate
4. VARITO Metal Detector Gate
Ideal Applications of Speed Gate
- Corporate offices and commercial buildings
- Industrial factories and warehouses
- Educational institutions and campuses
- Stadiums, event venues, and amusement parks
- Government facilities and secure premises
- Metro stations, bus terminals, and transport hubs
Conclusion
The VT-DS212 is designed for the long haul. With a high MCBF (Mean Cycles Between Failure) and low power consumption (40W), it offers an exceptional return on investment. It integrates effortlessly with RFID, facial recognition, and QR code scanners, allowing you to upgrade your credentials without changing your hardware.
Frequently Asked Questions (FAQs)
1. Can the passage width of the VT-DS212 be customized for wheelchairs?
Yes, while the standard width is 600mm, the VT-DS212 can be configured with an extended arm to provide a passage width of up to 850mm-900mm, making it fully ADA-compliant for handicapped access.
2. How does the turnstile handle tailgating attempts?
The VT-DS212 uses a multi-point infrared sensor array to detect more than one person trying to pass on a single valid credential. It will immediately sound an alarm and signal the security desk.
3. Is the VT-DS212 suitable for outdoor use?
The VT-DS212 is primarily designed for indoor use. However, it can be installed in semi-outdoor environments if it is properly sheltered from rain and direct, harsh sunlight to protect its optical sensors.
4. What material is used for the gate arms?
The standard arms are made of high-transparency Plexiglas, which provides a modern look and is lightweight for fast operation. For specific security needs, tempered glass options are also available.
5. How difficult is it to integrate with third-party software?
VARITO systems are designed with open communication protocols (RS485/Dry Contact), allowing for easy integration with almost any third-party biometric or attendance management software on the market.
