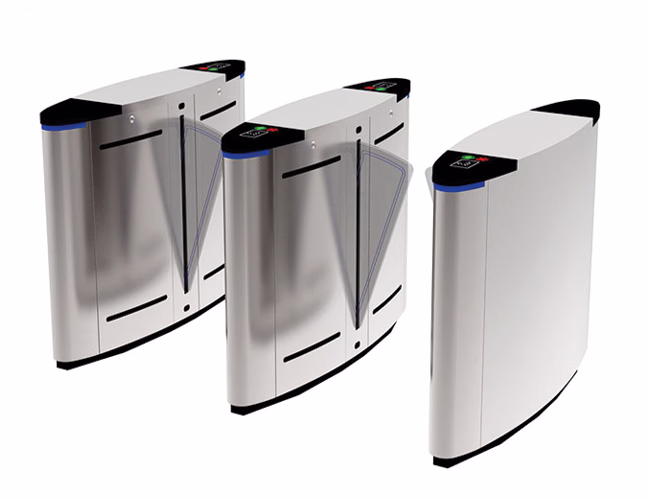

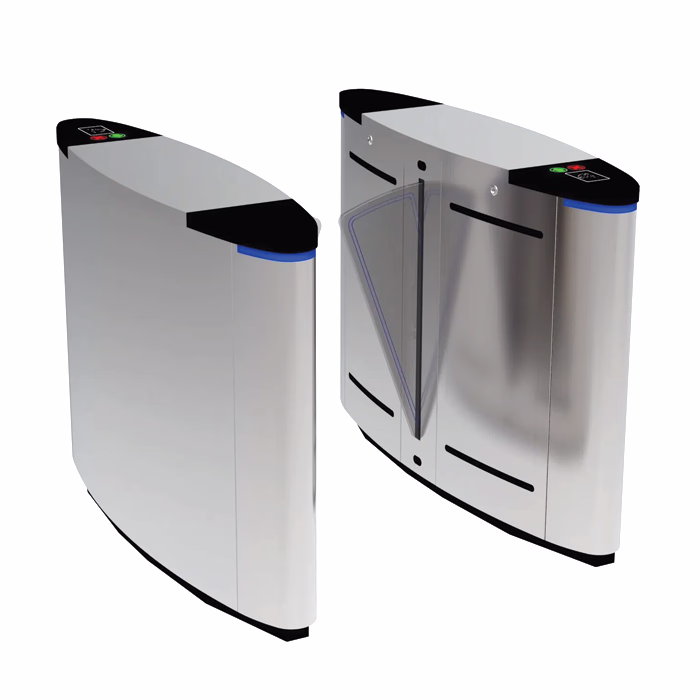

VARITO VT-H203 Half-Height Flap Barrier Turnstile
VT-H203 flap barrier turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Product Details:
| Brand | VARITO |
| Model | VT-H203 |
| Size | 1400*300*990mm |
| Material | 1.2 Mm SUS 304 Stainless Steel |
| Pass Width |
550mm |
| Working Voltage |
24V |
Features
Use IC cards, ID cards, Bar code
Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
A direction indicator
A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
Display
Display has been in use for statistics and numbers
A combination of infrared sensors
A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.
Specification
| Item | Details |
|---|---|
| Model No. | VT-H203 |
| Brand | Varito |
| Product Size: | 1400*300*990mm |
| Pass Width: | 550mm |
| Net Weight: | 75kg |
| Body Material: | 1.2mm stainless steel |
| Top Cover Material: | 8mm Acrylic + 2.0mm SUS304 Hair Line Stainless Steel |
| Wing Panel Material: | 15mm Transparent Acrylic |
| Driver: | Brushed motor |
| Infrared Sensor: | 5 pairs |
| Pass Rate: | 35–40 p/m |
| Power Supply: | 100–240V (AC) |
| Operational Voltage: | 24V (DC) |
| Power Supply: | 10K 30W |
| Frequency: | 50–60Hz |
| Working Temperature: | -25°C to +70°C |
| Access Controller: | 24V 120W Controller box, Tidy wiring |
| MCBF: | 5,000,000 cycles |
Product Description
VARITO VT-H203 Half-Height Flap Barrier Gate
Features and Benefits
1) Support connection fire alarm
2) Opening function in case of power off
3) Service life 5-8 years
4) Multiple intelligent anti-clamping
5) Support sound and light alarm
Advanced Design Meets Reliable Security
1. Operating Mode: Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction 4. Always free or locked
4.Communication • Dry contact relay with 12 volt or 24 volt pulse
5. Rs485 or Tcp-lp communication with computer
We Provide Multiple Solutions
Can integrate a variety of access control equipment

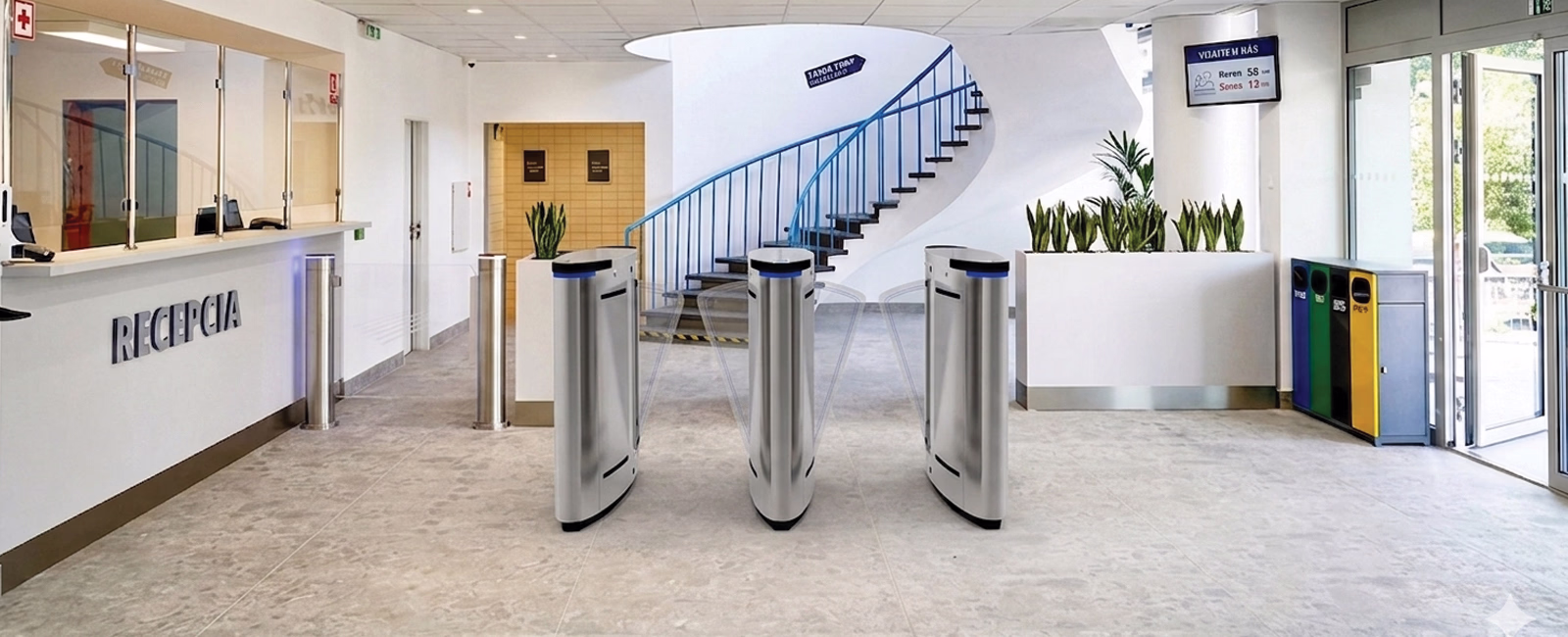

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
The VARITO VT-H203 Half-Height Flap Barrier Gate
In today’s security-conscious world, controlling pedestrian access efficiently is essential for commercial buildings, corporate offices, metro stations and high-security zones. The VARITO VT-H203 Half-Height Flap Barrier Turnstile Gate is a modern and intelligent solution designed to provide seamless entry management while maintaining high security standards.
Key Features of Flap Barrier
Advanced Design Meets Reliable Security
The VARITO VT-H203 Flap Barrier Turnstile Gate combines sleek aesthetics with cutting-edge technology. Its half-height design ensures smooth pedestrian flow without creating a sense of restriction, making it ideal for environments that demand both security and convenience.
Manufactured with premium stainless steel, the VT-H203 offers durability and resistance to wear, ensuring long-term performance even in high-traffic areas. The flap panels operate quickly and silently, allowing authorized users to pass efficiently while preventing unauthorized access.
Smart Access Control Integration
One of the key advantages of the VARITO VT-H203 is its compatibility with various access control systems. It can be integrated with RFID cards, biometric systems, QR code scanners, and face recognition technologies. This flexibility makes it suitable for modern smart buildings and automated environments.
For businesses aiming to upgrade their security infrastructure, integrating this flap barrier with advanced systems ensures both safety and operational efficiency.
To build a complete security ecosystem, VARITO also offers:
1. VARITO Full Height Turnstile
2. VARITO Tripod Turnstile Gate
3. VARITO Flap Barrier Gate
4. VARITO Metal Detector Gate
Ideal Applications of Speed Gate
- Corporate offices and commercial buildings
- Industrial factories and warehouses
- Educational institutions and campuses
- Stadiums, event venues, and amusement parks
- Government facilities and secure premises
- Metro stations, bus terminals, and transport hubs
Why Choose VARITO VT-H203?
VARITO is a globally recognized brand known for delivering high-quality security and automation products. The VT-H203 model reflects VARITO’s commitment to innovation, reliability, and user-friendly design.
Boost Your Security with VARITO
Choosing the VARITO VT-H203 means investing in a secure, efficient, and future-ready access control system. With its advanced features and trusted brand reputation, VARITO continues to lead the industry in delivering innovative turnstile solutions.
Frequently Asked Questions (FAQs)
1. How many people can the VT-H203 process per minute?
The VARITO VT-H203 is designed for high-density traffic, comfortably allowing 35 to 45 people per minute to pass, depending on the response speed of the integrated reader.
2. Can the VT-H203 detect someone trying to “sneak in” behind an authorized user?
Yes. The advanced optical sensor array is specifically calibrated to detect “tailgating.” If a second person attempts to pass without a valid credential, the system will trigger an audible alarm and stay closed.
3. Is the T-H203 suitable for wheelchair access?
Absolutely. VARITO offers a wide-lane version of the VT-H203 specifically designed to accommodate wheelchairs and large equipment, ensuring your entrance is fully ADA-compliant.
4. What happens if the power goes out?
The VT-H203 features an automatic fail-safe system. In a power-off situation, the flaps will automatically open to allow for a free and safe exit for all occupants.
5. How difficult is the maintenance for these gates?
Due to the high-quality brushless motors and precision-engineered parts, the VT-H203 requires very little maintenance. A periodic cleaning of the infrared sensors and an annual mechanical inspection are usually sufficient to keep it running for years.
