Dynamic Face, Fingerprint, Card and Password Recognition. VM-AI06QR is Widely Used in
Passenger Turnstile, Government Institution, Office, Building Apartment, Community,
College and Various Enterprise etc.
Brand : VARITO
Model:VM-AI06F / VM-AI06QR
- Description
Quick Details :
Display : HD Touch Screen
Screen size : 4.3 Inch, Capacitive touch screen Verify Method :Face, Card, QR Code, Password
Operation : LINUX 3.10 System
Camera : 200W Colorful WDR+200W Infrared
Application : Indoor (ourdoor customized)
Warranty : 1 Year (Non-artificial Damages)
SPECIFICATION
| Product | AI Dynamic Face Recognition, Time attendance, Access control Terminal |
| CPU, NPU | 1.2G Dual-Core ARM Cortex-A7, 600G (0.6T) |
| Keypad | Touch keypad |
| RAM | 256M DDR3L |
| ROM | eMMC Flash 4G |
| Binocular Camera | 200W Colorful WDR + 200W Infrared live camera |
| Logs Capacity | 500,000 |
| Display | 4.3 Inch Touch Screen, HD 1280×720, Capacitive Touch Screen |
| Operation System | LINUX 3.10 |
| Face Registration | Local operation: Enroll face with machine, import user photo with U disk. Software operation: Import user photo to software, capture user photo with camera. |
| Verification | Dynamic face recognition, password, ID/IC card optional |
| Face / Password Capacity | 10,000 (20,000 Optional) |
| Fingerprint Capacity | Dynamic face recognition, password, ID/IC card optional |
| Card Capacity | 15,000 (20,000 optional), ID Card Standard, IC Card optional |
| Password Capacity | 15,000 (20,000 optional) |
| Face Recognition | Accuracy 99.70% |
| Recognition Speed | <0.2s, supports up to 5 users at the same time |
| Recognition Distance | 0.5~2.5 meters (0.5~1.5m with live face recognition) |
| Prevent Photo | Dual camera anti-counterfeiting, prevents recognition with photo/video |
| Principle of Identification | Face algorithm using multi-task cascaded convolutional neural network for video-based dynamic detection, tracking, recognition |
| WDR | Supports strong light, dark light, and backlight recognition |
| USB | USB 2.0 x1, supports U disk import/export |
| Power Supply | DC12V interface x1 |
| Speaker Interface | Reserved for extension |
| Network Communication | TCP/IP, supports C/S LAN communication, Wi-Fi (optional) |
| Face Attendance Software | Export Excel reports via U disk |
| Shift | Supports shift settings and import via U disk |
| Management Software | Supports PC management via LAN |
| Access Control Function | Door alarm, forced door alarm, signal outputs, time control, Wiegand 26/34 |
| Environmental Adaptability | -15℃~+50℃ (work), -40℃~+65℃ (storage), 20%-90% humidity, ambient light 0–50,000 Lux, auto LED fill light |
| Multi-language | English, Spanish, Arabic, Thai, Japanese, Korean, etc. |
| Broadcast and Ring | Supports name display, voice broadcast, and built-in bell |
| Automatic Fill Light | Infrared + white fill light for dark environments |
| Working Current | Stand-by: 310mA, Working: 520mA |
| QR Code Scanner | Support |
| Working Voltage | DC12V |

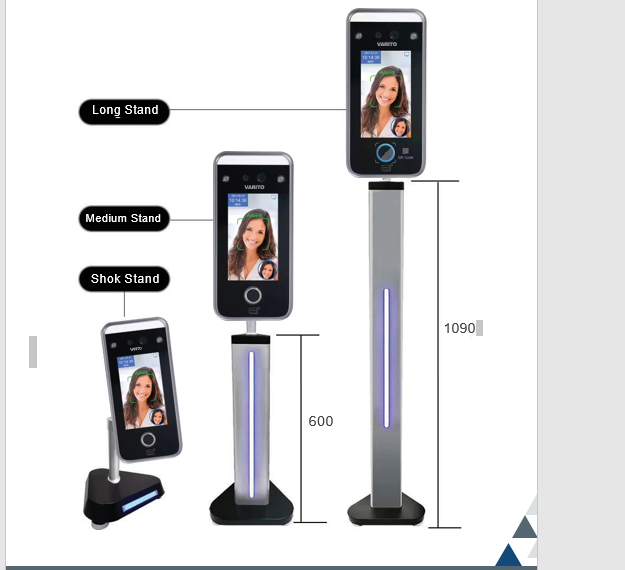

| Installation Way | Wall mount, desktop stand, optional turnstile or floor stand |
| Machine Dimension | 187.5 × 87.5 × 26 mm |
Suppok capture stranger’s photo if anybody in the camera and upload photo to soflware real time.

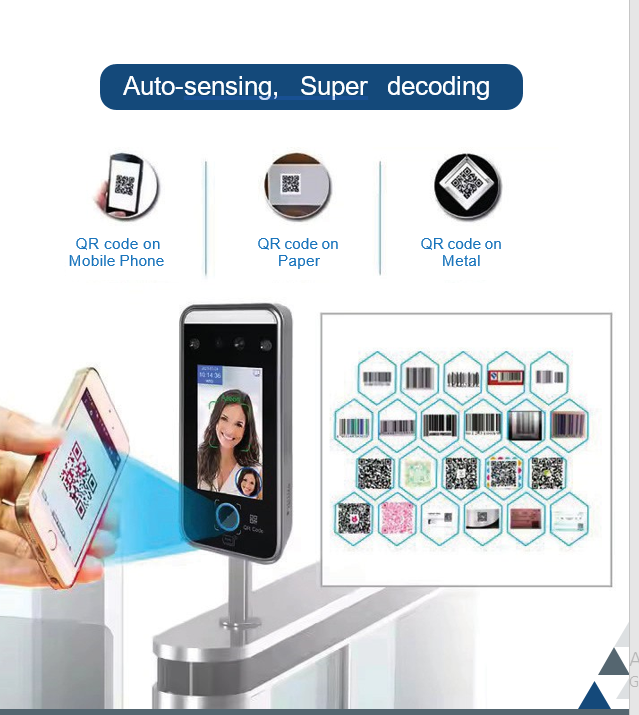

Suppok capture QR Code on mobile Phone, QR code on Paper, QR code on Metal Serface.

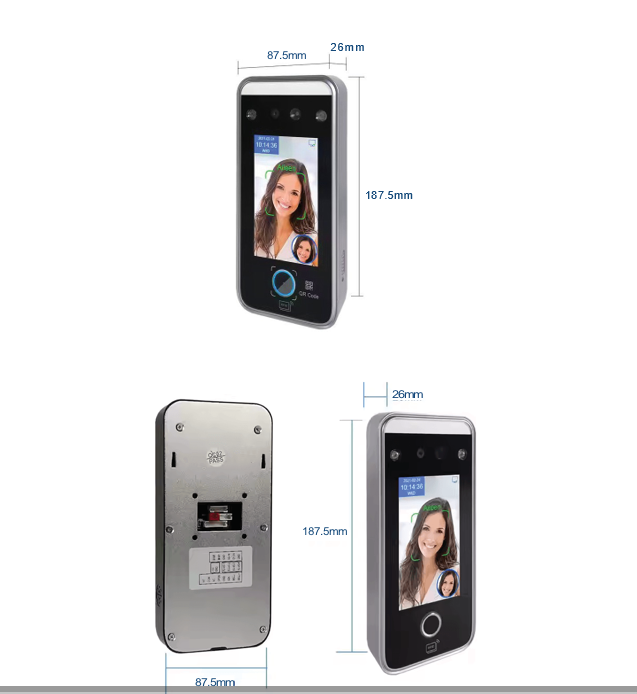

Product Dimension
