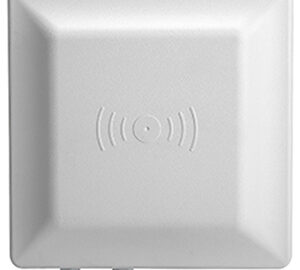

VARITO VUH-10 is a High Performance UHF integrated reader
for long range operation. The reader operates in frequency
range of 860MHz～ 960MHz design to read ISO18000‐6C
and ISO18000‐6B protocol ID Tag.The reader can be widely
applied in many RFID application systems such as logistics,
access control, and anti-counterfeit and industrial production
process control system.
Brand : VARITO
Model:VUH-10
- Description
Specification
| ITEMS | DESCRIPTION |
|---|---|
| Model: | VUH-10 |
| System Parameter: | ARM7+UHF model |
| Operating Frequency: | International（920～925MHz） USA（902～928MHz） EUR（865～868MHz） Others（Customized Tag） |
| Read Range: | >5m |
| Group of reading performance: | >50PCS |
| Support Protocol: | ISO18000-6C（EPC GEN2） |
| Frequency Hopping Mode: | Fixed Frequency Band and FHSS Software Programmable |
| Operating Mode: | Master-Slave Mode（Online Mode）、Time Scheduled Modes、Trigger Mode |
| Output Power: | 0-30dBm（Adjustable） |
| Antenna: | 8dBi circular polarize antenna（Integrated） |

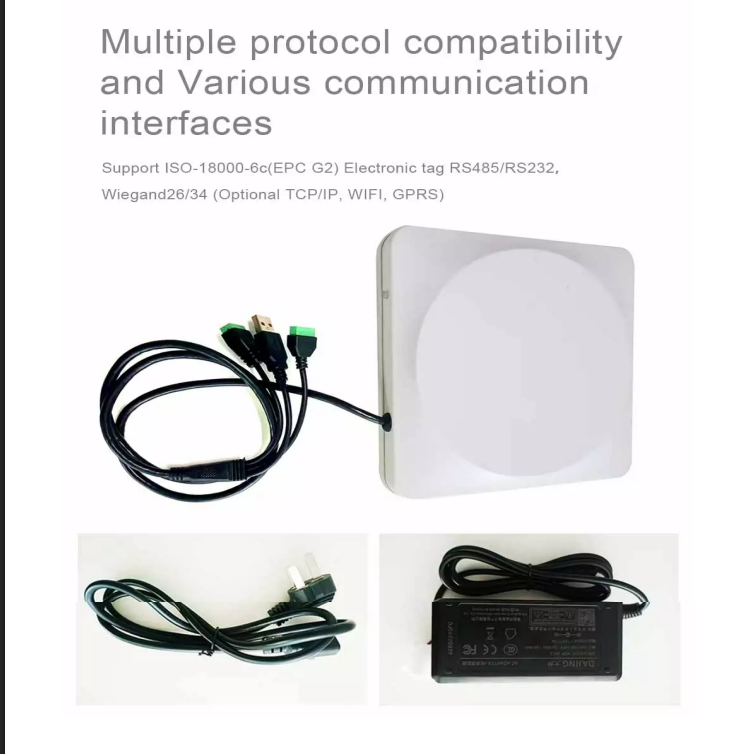

| Communication Port: | S232, RS485, Wiegand26, Wiegand34, USB |
| Power: | +12V |
| Prompt: | Beep or LED light flash |
| Power Consumption: | < 3W |
| OPERATING ENVIRONMENT | |
| Operation: | −20℃ ～ +70℃（Customized） |
| Humidity: | 20% ～ 95%（without condensation） |
| Storage: | −40℃ ～ +125℃ |
| PHYSICAL PARAMETER | |
| Dimension: | 180x180x47MM |
| Net Weight: | 750G |
| Weight: | 1500G |
