XR3E-6550C X-ray baggage scanner uses the penetrating ability of X-rays to quickly inspect luggage and cargo
without opening the suitcase. It is suitable for government departments, transportation departments, logistics
industry, courts, procuratorates, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls and
entertainment venues, for the security checking of briefcases, postal parcels, express mail, hand luggage and small
packages.
Brand : VARITO
Model:XR3E-6550C
- Description
FEATURES
Idetification Mode: Fingerprint, Promimity
Card, PIN and its combination
◆ Slave Readers: Our access control panel
support our own access control reader as
well as other factories’ readers with Weigand
26/34 connection.
◆ Remote Access: Our access control
support Desktop softwae and Web-based
software
◆ Real-time monitring: Monitor real-time
access logs(Through Software)
• software Access Managment: 8 Time zone
groups(Day, Week). 10 departments/groups,
5 Identification Methods.
• Door Interlock(A/B Door)

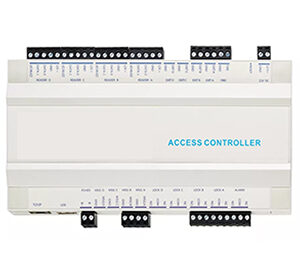

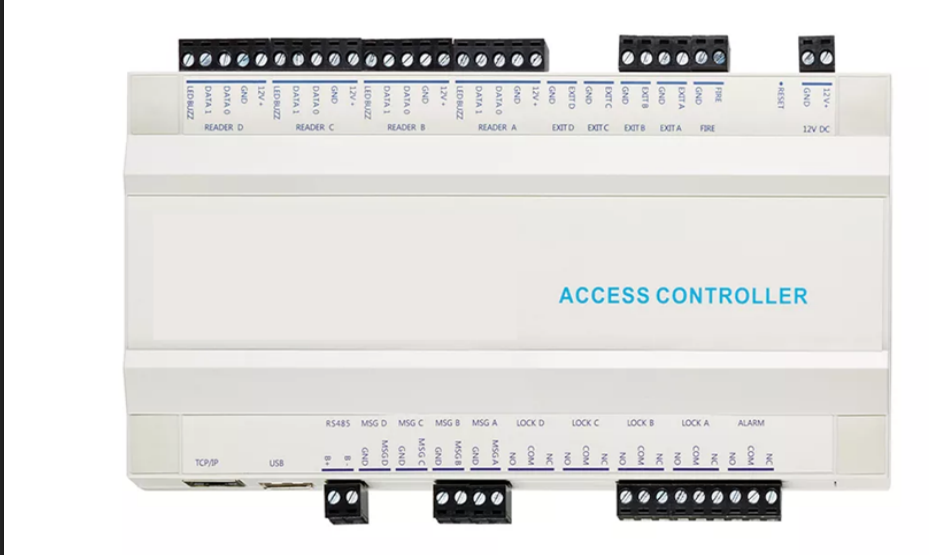

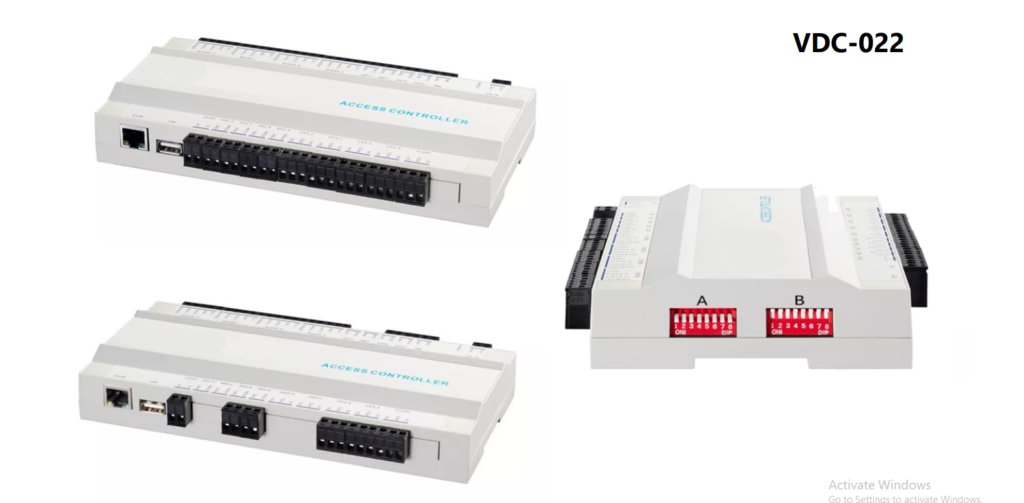

| Product Name | 2 Doors Access Control |
|---|---|
| Door Support | 2 Door |
| Fingerprint Capacity | 3000 Fingerprint / Password/Card |
| Logs Capacity | 100,000 |
| Verify Mode | Fingerprint / Password, EM/Mifare Card and its combination. |
| Working voltage | 12V |
| Identification Speed | <1s |
| Identification Mode | 1:1, 1:N |
| Device Dimension | 18.7*7.3*3.3cm |
| Communication | TCP/IP, RS485,Weigand in& Out; WIFI/ GPRS/3G/4G(Optional). |
| Database Support | ACCESS and SQL |
| Door Open Delay | 1-255s(Adjustable) |
.

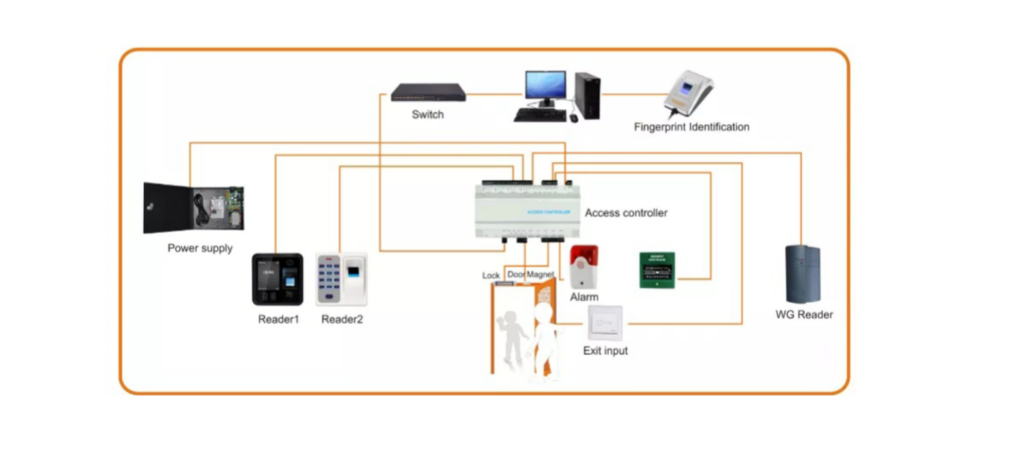

Installation Example
.
