Dual Energy Baggage Scanner

VARITO XR3G-100100C X-Ray Baggage Scanner

Model: XR3G-100100C Brand: VARITO

The defining feature of the XR3G-100100C is its expansive 1000mm (width) by 1000mm (height) tunnel.

Product Details

Brand OriginGermany
Dimensions2080mm×2100mm×1950mm
Penetration Capability12mm steel plate
X-Ray Source80-100 kV,0.5 mA
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

XR3G-100100C Key Features

Key highlights of the VARITO XR3G 100100C Baggage Scanner at a glance.

The equipment uses infrared sensing

The equipment uses infrared sensing to automatically adjust the conveyor belt height,

Penetration Capability

42mm steel plate

Capable of penetrating complex materials

Capable of penetrating complex materials and Al- enabled to identify potential risks,it achieves organic/inorganic material layered imaging

Demonstrates robust quality

Demonstrates robust quality,providing global customers with a transparent,reliable basis for procurement decisions and highly precise,efficient security inspection solutions

XR3G-100100C Specifications

ParameterModel XR3G-100100C
Channel Size1000mm×1000mm (W×H)
Penetration Capability40mm steel plate
X–ray Source140-160 kV,0.5-25 mA
Equipment Weight750 kg
Conveyor Belt Speed0.2 m/s (adjustable)
Equipment Dimensions3300mm×1360mm×1760mm (L×W×H)
Wire ResolutionAWG 38 (⌀0.102mm)
Spatial ResolutionHorizontal: 1.0mm; Vertical: 1.0mm
Single Inspection Dose<5 μGy/h
X–ray Beam DirectionTop irradiation
DisplayHigh-resolution 21.5-inch LCD display
Conveyor Belt Height310mm (from ground)
Energy-saving & Eco-designAutomatic object sensing; conveyor runs when luggage present, stops when idle. Lead curtain coated with protective film to avoid contamination and extend service life.
Image ProcessingColor/B&W, Layer Enhancement, High/Low Penetration, Super Enhancement, Organic Material Extraction, Inorganic Material Removal, Color Inversion, Brightness Adjustment, Grayscale Sweep, Zoom, Pseudo-color, Image Restoration, Save Export.

XR3G-100100C Product Description

Superior Penetration and Clarity

The defining feature of the XR3G-100100C is its expansive 1000mm (width) by 1000mm (height) tunnel. This "One Meter Square" aperture is the industry standard for bulk screening.

1. Oversized Check-in Luggage: No more manual checks for bulky sports gear or large trunks.

2. Commercial Cargo: Ideal for scanning boxes and shrink-wrapped goods in warehouse environments.

3. Consolidated Mail: Efficiently processes large sacks of mail or courier parcels in one pass.

VARITO XR3G 100100C Baggage Scanner
VARITO XR3G 100100C Baggage Scanner

Building a Unified Security

1. Dual-Energy Detection: Uses advanced sensors to color-code materials (Organic = Orange, Inorganic = Green, Metal = Blue).

2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.

3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.

4. Heavy-Duty Conveyor: Built to support a staggering 700kg to 750kg distributed load, ensuring the motor handles heavy cargo without lagging.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO XR3G 100100C Baggage Scanner
X-Ray Generator
X-Ray Generator
Detector Array
Detector Array
Conveyor Belt
Conveyor Belt
Radiation Shield
Radiation Shield
Scanning Tunnel
Scanning Tunnel
Image Processing
Image Processing
Operator Control Console
Operator Control Console

XR3G-100100C Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

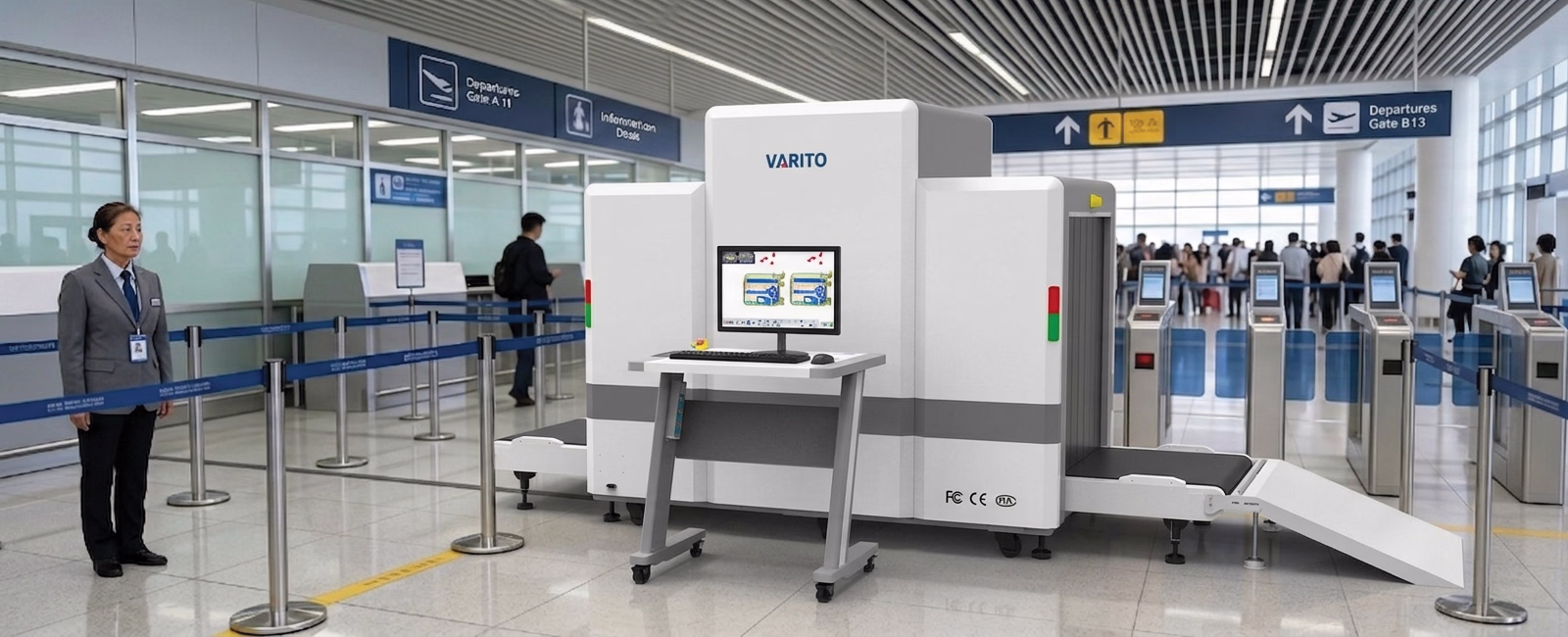

XR3G 100100C Baggage Scanner – installation view

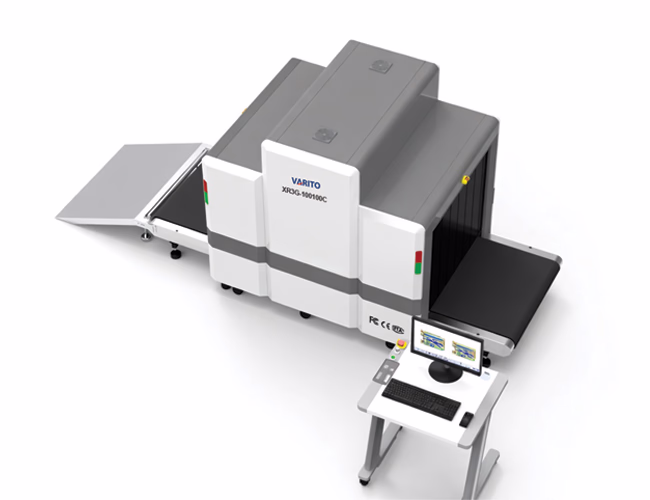

XR3G 100100C Baggage Scanner – product view

XR3G-100100C Details and Dimensions

All the details and dimensions can be customized according to your project site

XR3G 100100C Baggage Scanner front view
  • X-Ray Generator
  • Screening Monitor
  • Conveyor Belt
  • Full 304 stainless steel
XR3G 100100C Baggage Scanner dimensions

More About the XR3G 100100C Baggage Scanner

Smart Access Control Solution for Modern Security

VARITO XR3G-100100C X-Ray Baggage Scanner

When it comes to securing high-traffic zones like international airports, seaports, and industrial logistics centers, standard-sized scanners often fall short. Enter the VARITO XR3G-100100C X-Ray Baggage Scanner, a high-performance system specifically engineered to handle oversized luggage, large parcels and even small pallets.

As a cornerstone of the VARITO brand’s security lineup, the XR3G-100100C combines a massive tunnel opening with elite-level penetration power. It is designed to meet the rigorous standards by providing a professional-grade screening experience that users and security experts trust globally.

Unmatched Capacity: 1000mm x 1000mm Tunnel

The defining feature of the XR3G-100100C is its expansive 1000mm (width) by 1000mm (height) tunnel. This "One Meter Square" aperture is the industry standard for bulk screening. It allows for the seamless inspection of:

Oversized Check-in Luggage: No more manual checks for bulky sports gear or large trunks.

Commercial Cargo: Ideal for scanning boxes and shrink-wrapped goods in warehouse environments.

Consolidated Mail: Efficiently processes large sacks of mail or courier parcels in one pass.

Precision Engineering & High Penetration

Despite its size, the VARITO X-Ray Baggage Scanner does not compromise on detail. Equipped with a powerful X-ray generator, the system achieves deep penetration (up to 40mm-43mm of steel), ensuring that even within a large, crowded crate, hidden threats like weapons, explosives, or contraband are clearly identified.

1. Dual-Energy Detection: Uses advanced sensors to color-code materials (Organic = Orange, Inorganic = Green, Metal = Blue).

2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.

3. Heavy-Duty Conveyor: Built to support a staggering 700kg to 750kg distributed load, ensuring the motor handles heavy cargo without lagging.

Integrating a Total Security Infrastructure

The VARITO brand is synonymous with "Total Access Control." To build a world-class security checkpoint, the XR3G-100100C should be integrated with other specialized hardware.

For comprehensive pedestrian safety, we recommend installing a VARITO Metal Detector Gate at the entrance. To manage the flow of personnel and contractors, a VARITO Access Control System linked to a VARITO Tripod Turnstile Gate provides a foolproof barrier against unauthorized entry.

Furthermore, for outdoor perimeter and logistics safety, the VARITO Boom Barrier Gate is the perfect companion to manage vehicle traffic at loading docks where these large scanners are typically deployed.

Ideal Applications of Baggage Scanner

  • Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
  • Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
  • Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
  • Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.

Conclusion: Invest in Authoritative Security

The VARITO XR3G-100100C is more than just a machine, it is a high-capacity sentinel for your facility. Its ability to process large items quickly without sacrificing image quality makes it an invaluable asset for high-stakes environments. When you choose the VARITO brand, you are choosing a legacy of reliability, technical expertise and superior protection.

Frequently Asked Questions (FAQs)

1. Can the XR3G-100100C handle heavy industrial pallets? Yes, its conveyor is reinforced to handle up to 200kg standard (upgradable for higher loads), making it suitable for small-to-medium industrial pallets and crates.

2. Does this scanner help in identifying liquid explosives? Absolutely. The dual-energy imaging system is highly sensitive to atomic numbers, allowing it to highlight liquid threats in a distinct orange color for further inspection.

3. Is it possible to save and export scan images for investigations? Yes, the system features a massive internal storage capacity (over 100,000 images) and supports USB/LAN export for forensic review.

4. What are the space requirements for installation? Due to the 1000x1000mm tunnel, this unit has a larger footprint than standard scanners. It is best suited for loading bays, dedicated security checkpoints, or warehouse entrances.

5. How safe is it for operators working nearby? VARITO scanners adhere to the strictest international safety standards. Radiation leakage is negligible, and lead curtains at both ends of the tunnel ensure maximum protection for the public and staff.
