VARITO XR-6550C is an intelligent X-ray scanner uses the penetrating ability of X-Rayto quickly in
spect luggage and cargo without opening the suitcase. It’s suitable for Government departments,
transportation departments, logistics industry, courts, procuratorates, prisons, embassies, factories,
schools, hospitals, gymnasiums, exhibition briefcases, postal parcels,express mail. hand luggage and
small packages
Brand : VARITO
Model:XR-6550C
- Description
FEATURES
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Auto archiving
* Energy saving design
* One key turn off
* Indication of the date and time
* Baggage counter
FUNCTIONS
X-ray Sensor : L-Shaped Photodiode Array, 12bit deep
Conveyor Load : Load Capacity Maximum 150KG
Images process : 24bit real time processing ,4colors analysis, Images displayed marked date and
ID No., Count the number of bags
Image display: High resolution of 1920*1080 pixel; Image Grey Level: 65536
Image Enhancement: 1-32 times enlargement continuity, Color/BW, negative, high/low penetration
enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organics/
inorganics, local enhancement, pseudo color processing, edge enhancement, etc.
Image Recall: 30 images recallable
Image Archive : Up to 10,000 images stored automatically, enable transferring to USB disk, and
converting to JPG format
Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on
timers, power on self test, built-in diagnostic facilities, system log, system standby and
stimulant training, etc
| SPECIFICATION | |
|---|---|
| Dimensions | Channel Size: 650mm(W) x 500mm(H) |
| Device Size: 2195mm(L) x 902mm(W) x 1362mm(H) | |
| Performance Parameters | Line Resolution: AWG40 (0.0787mm Copper wire) |
| Spatial Resolution: Horizontal 1.0mm, Vertical 1.0mm | |
| Penetration: 30mm Steel Plate | |
| X-ray Source: 160kv | |
| Radiation Dose | Leakage Dose: <1Mgy/h |
| Single Dose: <2Mgy/h | |
| Conveyor Parameters | Conveyor Belt: 660mm (Belt to ground) |
| Conveyor Speed: 0.22 Meters/second | |
| Screen | Display Size: 21.5” |
| Resolution: 1920x1080p | |
| Overall Parameters | Power Consumption: 800W |
| Power Supply: AC220v 50Hz | |
| Noise: <60dB (1m Away from device housing) | |
| Working Temperature: 5℃~40℃, 0~90% No Condensation | |
| Storage Temperature: -20℃~60℃, 0~90% No Condensation | |
| Weight: 348KG | |
| Monitor System Parameters | Sensor Type: 1/2.8” Progressive Scan CMOS |
| Number of Cameras: 1 channel Entrance | |
| Wide Dynamic Range: 120dB | |
| Video Compression: H.265/H.264Mjpeg | |
| Maximum Image Size: 1920×1080 | |
| Storage Duration: Not Less than 30 days | |
Measurements:
.

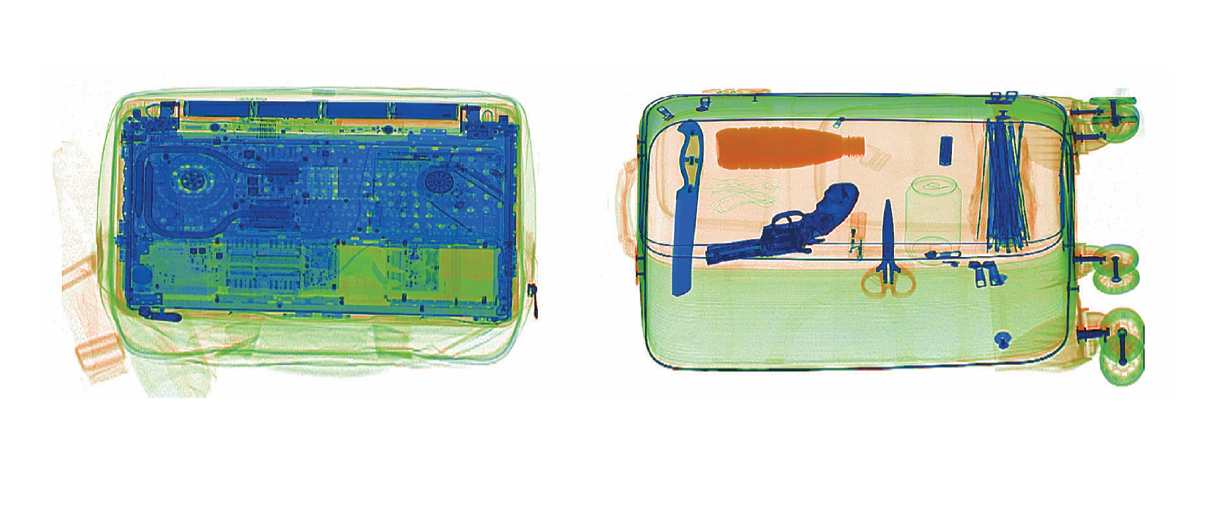

Scan View:
.
