XR3E-6550C X-ray baggage scanner uses the penetrating ability of X-rays to quickly inspect luggage and cargo
without opening the suitcase. It is suitable for government departments, transportation departments, logistics
industry, courts, procuratorates, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls and
entertainment venues, for the security checking of briefcases, postal parcels, express mail, hand luggage and small
packages.
Brand : VARITO
Model:XR3E-6550C
- Description
FEATURES
Modularization: The internal circuit structure of the device adopts modular design ideas. Through reasonable
layout design, the anti-interference ability of the device is improved to ensure a stable operation and easy
maintenance;
Digitalization: The hardware system adopts the latest ASIC fully digital solution design, IN-depth acquisition
technology. Compared with the analog acquisition solution, the circuit design in this device, is optimized and
has the characteristics of high integration, strong anti-interference ability, and clear imaging effect;
Full-featured: Additional functional modules can be customized according to private demand, and customized
ports can be inserted according to customer requirements. For example, AI intelligent image recognition (dangerous product alarm function).
FUNCTIONS
Image processing functions: colorful/black and white, local enhancement, high penetration, low penetration,
super enhancement, organic discrimination, inorganic discrimination, inversion, brightening, darkening, gray
scan, enlarging, false color, image restoration, image storage
System functions: automatic self-diagnosis, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, record checking, multi format image export, OSD operation function, image mirroring, 1-64 times image magnification, magnifying glass, operator training, precise positioning
of baggage images, clear channel reminder, remote operation software, one-click shutdown.
| SPECIFICATIONS | |
|---|---|
| Dimensions | |
| Channel Size | 659(L)*504(W) mm |
| Device Size | 1893(L)*916(W)*1411(H) mm |
| Performance Parameters | |
| Line Resolution | AWG38(Φ0.0787mm) |
| Spatial Resolution | Horizontal 1.0mm; Vertical 1.0mm |
| Penetration | 40mm Steel Plate |
| X-ray Source | 140Kv 0.5ma-1.25ma |
| Radiation Dose | |
| Leakage Dose | <1μGy/h at any point 5 centimeters outside |
| Single Dose | ≤2.5 μGy |
| Conveyor Parameters | |
| Conveyor Belt Height | 700mm (Belt To Ground) |
| Conveyor Speed | 0.22 Meters/second |
| Screen | |
| Display Size | 21.5″ |
| Resolution | 1920*1080p |
| Overall Parameters | |
| Power Consumption | 800w |
| Power Supply | Ac220v 50hz |
| Noise | <55 Db (1 Meter Away From The Device) |
| Working Temperature & Humidity | 5°C~40°C 10%~90% No Condensation |
| Storage Temperature & Humidity | -20°C~40°C 0~90% No Condensation |
| Weight | 450kg |
| Monitor System Parameters | |
| Sensor Type | 1/2.8″ Progressive Scan Cmos |
| Number Of Cameras | 1 Channel Entrance |
| Wide Dynamic Range | 120db – |
| Video Compression Standards | H.265 / h.264 Mjpeg |
| Maximum Image Size | 1920×1080 |
| Storage Duration | Not Less Than 30 Days |
| System | Win 10 |
| System Language | English / Chinese / Russia / Turkish |

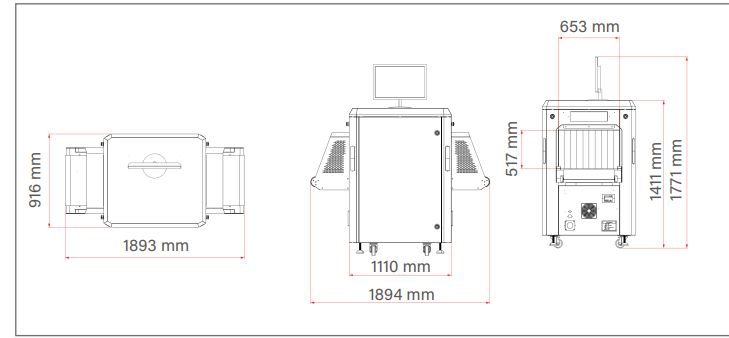

Dimensions:
.
