Dual Energy Baggage Scanner

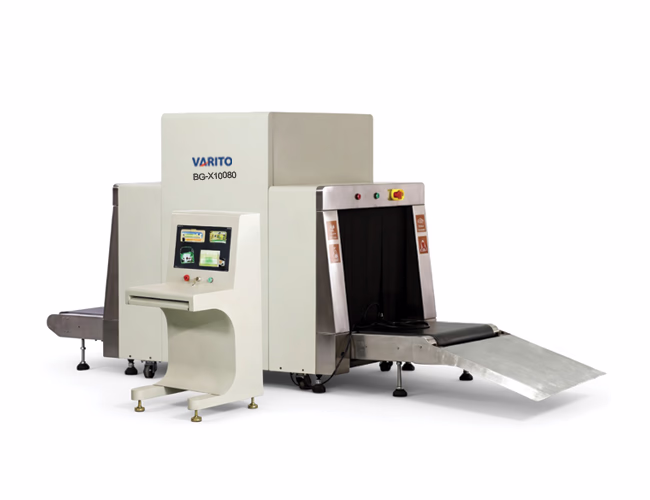

VARITO BG-X10080 Luggage Inspection System

Model: BG-X10080 Brand: VARITO

The VARITO BG-X10080 Luggage Inspection System is a heavy-duty X-ray solution specifically engineered for environments that handle oversized baggage, commercial parcels and small pallets.

Product Details

Unit Size (mm)3638(L)*1295(W)*1916.5(H)
Gross Weight (kg)950
Tunnel Size (mm)1010(L)*1003.5(W)
X-Ray Generator80kV-140kV
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

BG-X10080 Key Features

Key highlights of the VARITO BG-X10080 Baggage Scanner at a glance.

Display:

Display: High Resolution Color Display

Conveyor belt rated load

Conveyor belt rated load: 120kg

Pass rate test

Pass rate test: >700/h

Image gray level:

Image gray level: ≥4096

BG-X10080 Specifications

ItemDetails
Model No.BG-X100100
Physical Specifications
Unit weight (kgs)850
Unit size (mm)3638(L)*1295(W)*1916.5(H)
after packed in wooden pallet –
Gross weight (kgs)950
Packing size#1: 287*142*213cm
#2: 113*89*142cm
General Specifications
Tunnel size(mm)1010(L)*1003.5(W)
Conveyor Speed(m/s)0.2
Conveyor height(mm)334.5
Conveyor Max Load(kgs)200
X ray dose per each inspectionTypical 1.5 μGy/h, guarantee 2.0 μGy/h
X ray leakageTypical 1.0 μGy/h, guarantee 1.5 μGy/h
PenetrationTypical 10mm
Wire ResolutionTypical AWG36
Penetration ResolutionTypical AWG24, guarantee AWG24
Spatial resolution:Typical dia2.0mm,Vertical: dia2.0mm; Guarantee dia2.0mm,Vertical: dia2.0mm;
Power Consumptionmax. 1KW
Noise< 60 dB
Film SafetyGuarantee ASA/ISO1600 Film
X-ray Generator (single)
Anode Voltage100 KV
Anode power0.8mA
Generate angle80 degree downward
Generate directfrom top to bottom
Cooling / Duty CycleOil Cooling /100%
Brandlocal made
Image System
X-ray SensorL-Shaped Photodiode Array (multi-energetic) , 16bit Deep
Image DisplayHigh resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image RecallAll preceding images recallable, retrieval
Explosives & Narcotics DetectionExplosives & narcotics alarm and highlight according to atomic number signature
High Density Region AlarmImpenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image ProjectionInserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image ArchiveUp to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous FunctionsTime/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network ApplicationsMultiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
Images process24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
Operating Environment
Operation temperature/Humidity0℃-45℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity-40℃to 70℃ / 5%-95%(non-condensing)
Operation Power220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS15mins, 30mins, 60mins etc, optional
Computer and other
MonitorHigh Resolution Color, LCD Accord, 17inch
Hard DiskSEAGATE 500G 3.5”
CPUCortex A9
Storage1G
Main boardSafeway IMX6_mainboard-V030
Compliance
International* ISO19001; ISO14001; OHSMS18001; * CE * USA FDA * Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard – less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China)* Health Inspection Report * Computer Software Copyright Registration Certificate * Software Product Registration Certificate * Radiation Safety Certificate from Ministry of Public Security * Quality Certification from Safety and Police Electronic Products Quality Inspection Center * Design pantent certification: Patent No.: 201020700245.2; Patent No.: 201020700245.8; Patent No.: 201020700256.0

BG-X10080 Product Description

The defining feature of the BG-X10080 is its expansive aperture

Built for Bulk & Oversized Cargo

The defining feature of the BG-X10080 is its expansive aperture. This large-format tunnel is strategically designed for "Out-of-Gauge" items that standard scanners simply cannot accommodate. It allows for the seamless processing of:

1. Check-in Luggage & Trunks: Ideal for travel hubs where passengers carry oversized or oddly shaped baggage.

2. Express Warehouse Cargo: Perfect for courier services needing to scan consolidated boxes and large parcels.

3. Industrial Shipments: Capable of handling small palletized goods, ensuring that commercial shipments are free of contraband or hazardous materials.

VARITO BG-X10080 Baggage Scanner
VARITO BG-X10080 Baggage Scanner

High-Penetration 80kV-140kV Imaging Technology

1. Dual-Energy Detection: Uses advanced sensors to color-code materials (Organic = Orange, Inorganic = Green, Metal = Blue).

2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.

3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.

4. Deep Penetration: Effortlessly pierces through thick metallic layers and high-density materials, achieving a penetration level of up to 38mm of steel.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO BG-X10080 Baggage Scanner
X-Ray Generator
X-Ray Generator
Detector Array
Detector Array
Conveyor Belt
Conveyor Belt
Radiation Shield
Radiation Shield
Scanning Tunnel
Scanning Tunnel
Image Processing
Image Processing
Operator Control Console
Operator Control Console

BG-X10080 Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

BG-X10080 Baggage Scanner – installation view
BG-X10080 Baggage Scanner – product view

BG-X10080 Details and Dimensions

All the details and dimensions can be customized according to your project site

BG-X10080 Baggage Scanner front view
  • X-Ray Generator
  • Screening Monitor
  • Conveyor Belt
  • Full 304 stainless steel
BG-X10080 Baggage Scanner dimensions

More About the BG-X10080 Baggage Scanner

Smart Access Control Solution for Modern Security

VARITO VARITO BG-X10080 Luggage Inspection System

In the demanding world of logistics, international transit, and high-level security, the ability to screen large volumes without compromising on detail is the ultimate necessity. The VARITO BG-X10080 Luggage Inspection System is a heavy-duty X-ray solution specifically engineered for environments that handle oversized baggage, commercial parcels and small pallets. With its massive 1000mm x 800mm tunnel size, this system ensures that no item is too bulky for a thorough, high-resolution security check.

As a flagship model under the globally trusted VARITO brand, the BG-X10080 is built to align with modern security standards, providing an authoritative security barrier for airports, seaports, and express warehouses.

Large-Format 10080 Tunnel: Built for Bulk and Cargo

The defining feature of the BG-X10080 is its expansive aperture. This large-format tunnel is strategically designed for "Out-of-Gauge" items that standard scanners simply cannot accommodate. It allows for the seamless processing of:

1. Check-in Luggage & Trunks: Ideal for travel hubs where passengers carry oversized or oddly shaped baggage.

2. Industrial Shipments: Capable of handling small palletized goods, ensuring that commercial shipments are free of contraband or hazardous materials.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Superior Safety: Reduced radiation leakage profiles make it ideal for busy public environments where staff and visitors are in close proximity.

High-Penetration Imaging & Dual-Energy Intelligence

The BG-X10080 isn't just about size; it's about the power to see through complexity. Equipped with a high-performance 80kV-140kV X-ray generator, this VARITO X-Ray Baggage Scanner delivers:

Elite Penetration: Easily pierces through thick metallic layers and high-density materials, reaching penetration levels of up to 38mm–42mm of steel.

Dual-Energy 4-Color Imaging: Automatically identifies materials by atomic weight. Organic materials (explosives/narcotics) appear orange, while metals and inorganic materials appear in blue and green.

Advanced Analysis Tools: The system includes real-time image manipulation, allowing operators to utilize up to 64x zoom to inspect suspicious components or thin wires.

4. Real-Time Image Manipulation: Operators can use the ergonomic control desk to zoom (up to 64x), invert colors, and enhance edges to identify thin wires or small detonators.

Building an Integrated Security Ecosystem with VARITO

The VARITO brand is a global authority in total security infrastructure. A high-capacity scanner like the BG-X10080 works best when it is part of a synchronized defense strategy. To achieve maximum efficiency and safety, we recommend pairing the BG-X10080 with other VARITO security layers.

For an impenetrable facility, we recommend pairing your scanner with:

For comprehensive pedestrian safety, we recommend installing a VARITO Metal Detector Gate at the entrance. To manage the flow of personnel and contractors, a VARITO Access Control System linked to a VARITO Tripod Turnstile Gate provides a foolproof barrier against unauthorized entry.

Furthermore, for outdoor perimeter and logistics safety, the VARITO Boom Barrier Gate is the perfect companion to manage vehicle traffic at loading docks where these large scanners are typically deployed.

Ideal Applications of Baggage Scanner

  • Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
  • Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
  • Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
  • Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.

Conclusion: Invest in Authoritative Security

The VARITO BG-X10080 is an investment in absolute peace of mind for large-scale operations. Its combination of massive tunnel capacity, high-energy penetration, and dual-energy intelligence makes it an indispensable asset for any high-security site. When your mission is to protect bulk assets and maintain public safety, choose the authority of the VARITO brand.

Frequently Asked Questions (FAQs)

1. Is the BG-X10080 suitable for palletized goods? Yes. With its 1000x800mm tunnel and high-capacity conveyor, it is specifically designed to handle small pallets, large crates, and oversized luggage.

2. How does the 4-color imaging help in threat detection? It acts as a primary filter. If an operator sees an orange (organic) mass inside a blue (metallic) crate, they know to flag it for manual inspection, as it could indicate explosives or liquid contraband.

3. Is the radiation safe for the people working around the machine? Absolutely. All VARITO scanners feature lead-shielded walls and multi-layer lead curtains. Radiation leakage is negligible, staying well below international safety thresholds.

4. Can the conveyor handle continuous operation? Yes. The 160kV generator is oil-cooled and designed for high-frequency use, while the reinforced motor handles constant heavy loads.

5. Does the system support remote monitoring? Yes. The BG-X10080 supports LAN connectivity, allowing security managers to monitor scans from a central control room for enhanced oversight.
