Dual Energy Baggage Scanner

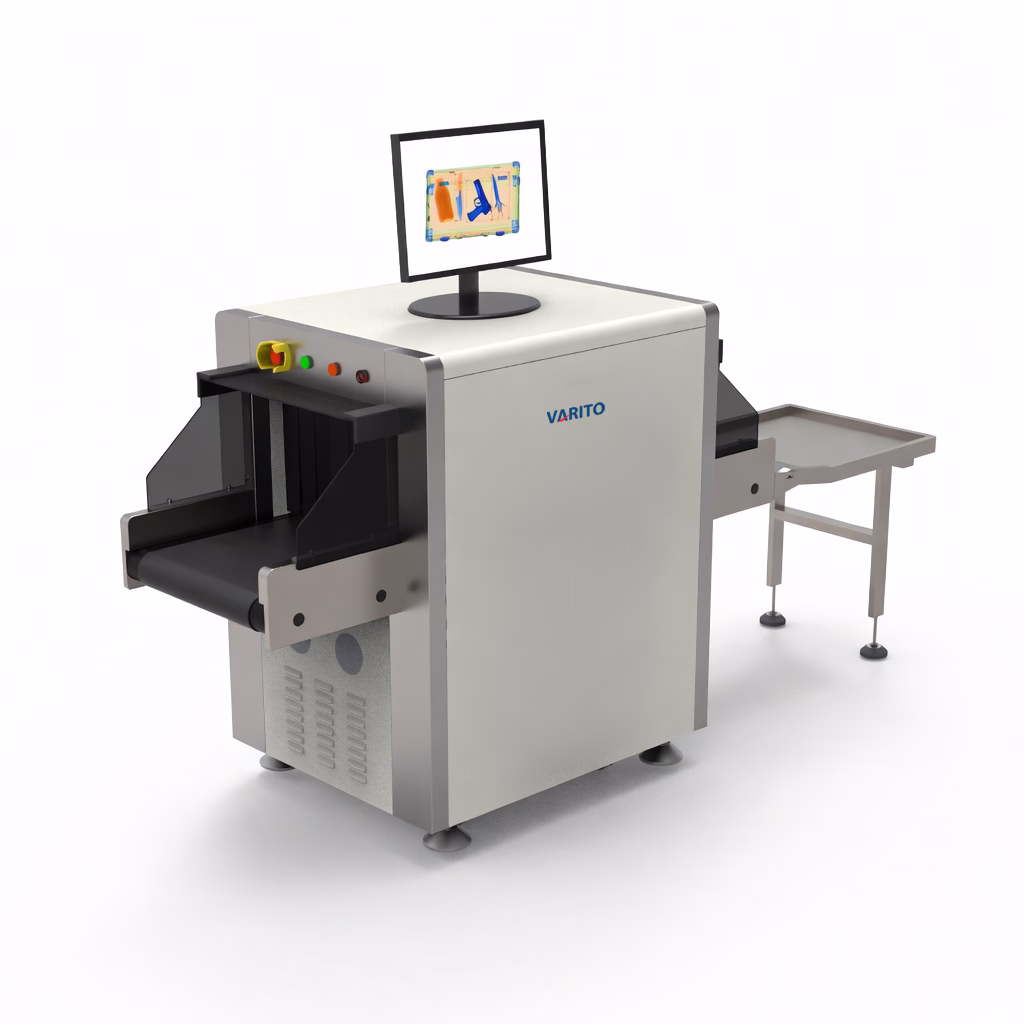

VARITO BG-X6550 X-Ray Baggage Scanner

Model: BG-X6550 Brand: VARITO

VARITO BG-X6550 X-ray baggage scanner series features a unique design and delivers exceptional image clarity, making it a top choice for security inspections.

Product Details

Brand OriginGermany
DisplayHigh Resolution Color Display
Tunnel Size (mm)650(W) × 500(H)mm
X-Ray Generator140kV
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

BG-X6550 Key Features

Key highlights of the VARITO BG-X6550 X-Ray Baggage Scanner at a glance.

Display:

Display: High Resolution Color Display

Dual Energy

Dual Energy, L-shaped array detector

Detector crystal

Japan HAMMATSU detector crystal, Detecting board from Deetee Finland.

IPC from Taiwan

IPC from Taiwan, Interroll Roller from German

High-resolution

High-resolution PHILIP 19 inch color LCD display

Four colors

Four colors to distinguish organic, inorganic and dangerous material

Multiple functions

Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,

Image enlarge, recurrence, restoration

Image enlarge, recurrence, restoration, storage, network

BG-X6550 Specifications

Physical Specfications
Dimensions2762mm × 766mm × 1211mm (L×W×H)
Tunnel Size650mm × 500mm (W×H)
Console TableNA
Equipment Weight245Kg
Conveyor Speed0.22 m/s (adjustable)
Conveyor Load170KG
Conveyor Belt Height660mm (from ground)
X-Ray Generator
X-Ray Generator140kV
EnergyDual-energy
Penetration38mm steel plate
Wire ResolutionAWG 38 (φ0.102mm)
Material SeparationLow Z, Medium Z, High Z to 0.5 Z accuracy
Spatial ResolutionHorizontal: 1.0mm; Vertical: 1.0mm
Single Inspection Dose<5μGy/h
X-ray Leakage<0.5μGy/h at 5cm outside external surface
OrientationTop irradiation
Generator CoolingSealed oil cooling / 100%
Tube Current0.5–1.25mA
Power Consumption500W
Noise<55 dB
Film SafetyGuarantee ASA/ISO1600 Film
Power SupplyAC 220V, 50 HZ
System & Monitor
Operating SystemEmbedded Windows 10 operating system
Monitor18.5-inch LCD, 1920×1080
Memory1TB
KeyboardSpecial designed with shortcut buttons
Electric RollerSingle-phase
Imaging Features
X-ray SensorL-Shaped Photodiode Array, 12bit deep
Image Processing24bit real-time processing, 4 colors analysis, date & ID display, bag counter
Image Display1920×1080; 1–64× zoom; Color/B&W; Partial Increasing; High/Low Penetration; Over-Increasing; Organic Removal
Explosives & Narcotics DetectionSuspicious organics highlight (Zeff = 7, 8, 9)
Suspicious AlarmAlarm + box line for explosives, drugs, hard-to-penetrate materials
Threat Image Projection (TIP)Inserts fictional threat images for training & vigilance
Image RecallHundreds
Misc FunctionsTime/date, counters, user management, timers, self-test, diagnostics, system log, standby, stimulant training
Scanning DirectionDual-direction
Operating Environment
Storage Temperature-20℃ to 40℃
Operating Temperature5℃ to 40℃ / 10%–90% RH
Relative Humidity0%–90% RH (non-condensing)
Storage Humidity0%–90% RH (non-condensing)
Options
AI Feature41 classes in 15 major types
CamerasReal-time video for item-person association & lost item retrieval
UPS1.5 KVA, 15–20 mins backup
OEM BrandingMetal frame & interface
Packaging Information
Packing ListEnglish Manual ×1; Cable ×1; Tools ×1 set
Packaging MethodWooden Pallet
Packaging Dimensions1700mm × 870mm × 1460mm
N.W.245KG
G.W.290KG
Regulatory Compliance
China StandardGB 12664-2024
InternationalCE, ROHS, FCC

BG-X6550 Product Description

Precision 140kV Imaging for High-Detail Detection

The heart of the BG-X6550 is its high-frequency 140kV X-ray generator. While standard scanners in this size class often struggle with thick metallic objects, the VARITO BG-X6550 achieves a staggering 38mm steel plate penetration.

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, can handle heavy loads with consistent, smooth movement.

4. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.

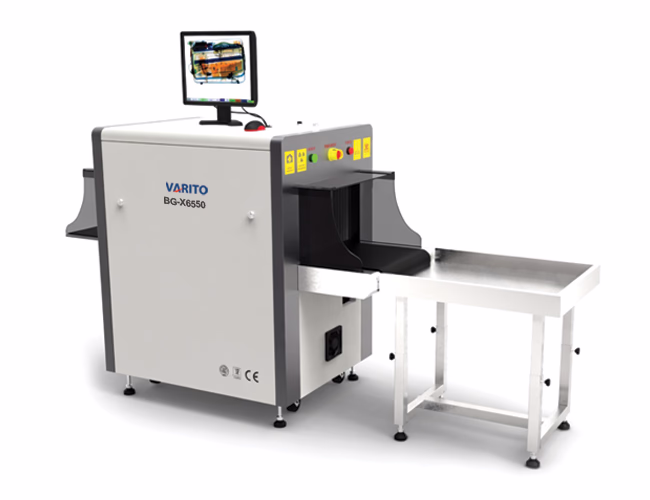

VARITO BG-X6550 X-Ray Baggage Scanner
VARITO BG-X6550 X-Ray Baggage Scanner

Engineered for Small Spaces & High Mobility

1. 170kg Load Capacity: The heavy-duty conveyor belt is designed to handle up to 170 kg, easily accommodating heavy backpacks and commercial courier bags.

2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.

3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.

4. Heavy-Duty Conveyor: Built to support a staggering 500kg distributed load, ensuring the motor handles heavy cargo without lagging.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO BG-X6550 X-Ray Baggage Scanner
X-Ray Generator
X-Ray Generator
Detector Array
Detector Array
Conveyor Belt
Conveyor Belt
Radiation Shield
Radiation Shield
Scanning Tunnel
Scanning Tunnel
Image Processing
Image Processing
Operator Control Console
Operator Control Console

BG-X6550 Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

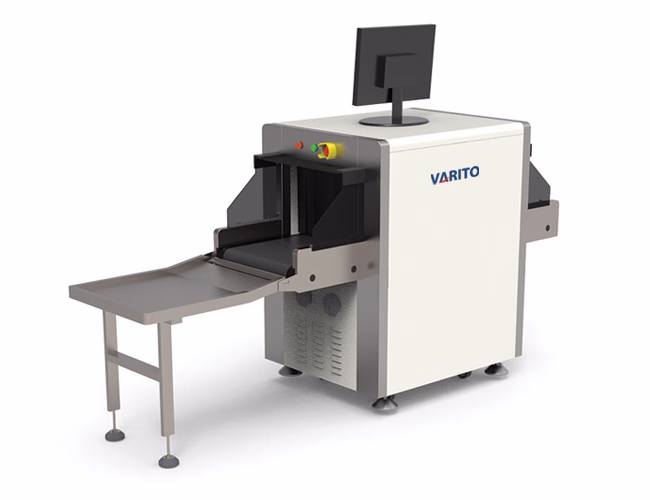

BG-X6550 X-Ray Baggage Scanner – installation view
BG-X6550 X-Ray Baggage Scanner – product view

BG-X6550 Details and Dimensions

All the details and dimensions can be customized according to your project site

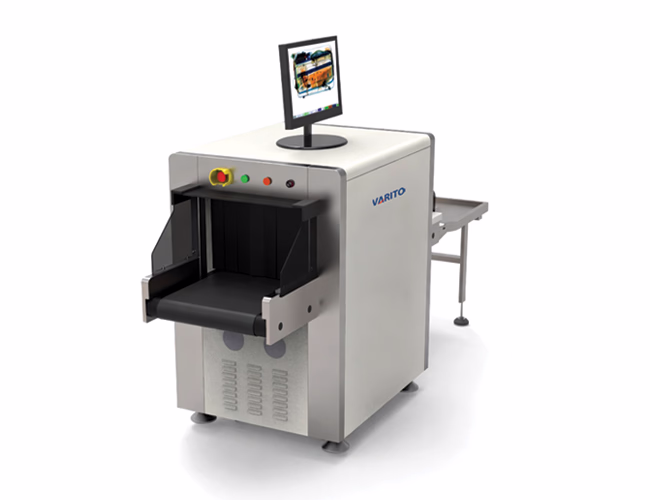

BG-X6550 X-Ray Baggage Scanner front view
  • Screening Monitor
  • X-Ray Generator
  • Conveyor Belt
  • Full 304 stainless steel
BG-X6550 X-Ray Baggage Scanner dimensions

More About the BG-X6550 X-Ray Baggage Scanner

Smart Access Control Solution for Modern Security

VARITO VARITO VARITO BG-X6550 X-Ray Baggage Scanner

In an era where security threats are becoming increasingly sophisticated, your screening technology must be one step ahead. The VARITO BG-X6550 X-Ray Baggage Scanner is a premier security solution designed for those who demand uncompromising clarity and high-speed efficiency. Featuring the industry-standard 650mm x 500mm tunnel size, this model is perfectly suited for airport checkpoints, government secretariats and high-traffic corporate lobbies.

As a signature product under the globally recognized VARITO brand, the BG-X6550 adheres to ensuring your facility is protected by world-class engineering.

Precision 140kV Imaging for High-Detail Detection

The BG-X6550 is powered by a specialized 80kV X-ray generator. While optimized for lower power consumption, it does not compromise on the clarity required to identify hidden threats.

1. 38mm Steel Penetration: Effortlessly sees through standard suitcase frames, laptops, and thick clothing to identify hidden metallic objects.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Reduced Energy Consumption: The 80kV source is more energy-efficient, making it ideal for 24/7 operation in facilities looking to maintain a lower carbon footprint without sacrificing safety.

Engineered for Small Spaces & High Mobility

The VARITO BG-X6550 is designed with the user’s environment in mind. It is lightweight enough for easy relocation but robust enough for 24/7 duty.

1. 170kg Load Capacity: The reinforced conveyor belt can handle heavy backpacks and courier bags weighing up to 100 kg, ensuring a steady flow at your entrance.

2. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the belt speed can be fine-tuned to match your security team’s pace, preventing bottlenecks during peak hours.

3. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.

Total Security Integration with VARITO Authority

A high-quality checkpoint is only as strong as its weakest link. To achieve a 360-degree security posture, the XR3G-5030A should be integrated into a wider ecosystem provided by the VARITO brand.

For a complete "Smart Entrance" setup, we recommend pairing this scanner with:

* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.

* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.

* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.

By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.

Key Technical Specifications

* Tunnel Size: 650(W) × 500(H) mm

* Penetration: 12mm Steel Plate (Elite Standard)

* Generator: 140kV (Oil-cooled for continuous use)

* Weight: 245 kg (Highly Mobile)

* Safety: Double-layer lead-impregnated curtains for maximum operator protection.

Ideal Applications of Baggage Scanner

  • Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
  • Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
  • Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
  • Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.

Conclusion: Invest in Authoritative Security

The VARITO BG-X6550 is more than just hardware; it is a commitment to the absolute safety of your premises. By combining high-energy 140kV penetration with a versatile 650x500mm tunnel and dual-energy intelligence, it provides a future-proof solution for any high-security site. When you choose the VARITO brand, you are choosing a global leader dedicated to technical excellence and professional protection.

Frequently Asked Questions (FAQs)

1. Is 38mm steel penetration enough for airport security? Yes. 38mm is a high-level standard for cabin baggage scanners, allowing operators to see through almost all consumer electronics and reinforced suitcase frames.

2. Can the conveyor speed be adjusted for peak hours? Absolutely. The 0.22 m/s speed is adjustable, allowing you to slow it down for high-detail manual inspections or speed it up during high-traffic periods.

3. Is it safe for photographic film and electronic devices? Yes. The radiation dosage is strictly controlled and complies with international safety standards, making it 100% safe for high-speed film (up to ISO 1600) and sensitive electronics.

4. How does the 4-color imaging assist the operator? The system highlights organic materials (like plastic explosives or liquids) in orange. This distinct visual cue helps operators immediately identify suspicious items that look "different" from inorganic clothing or metal objects.

5. Does the machine support image storage for review? Yes, it features a massive internal storage capacity (100,000+ images) and supports LAN/USB export for forensic review or staff training purposes.
