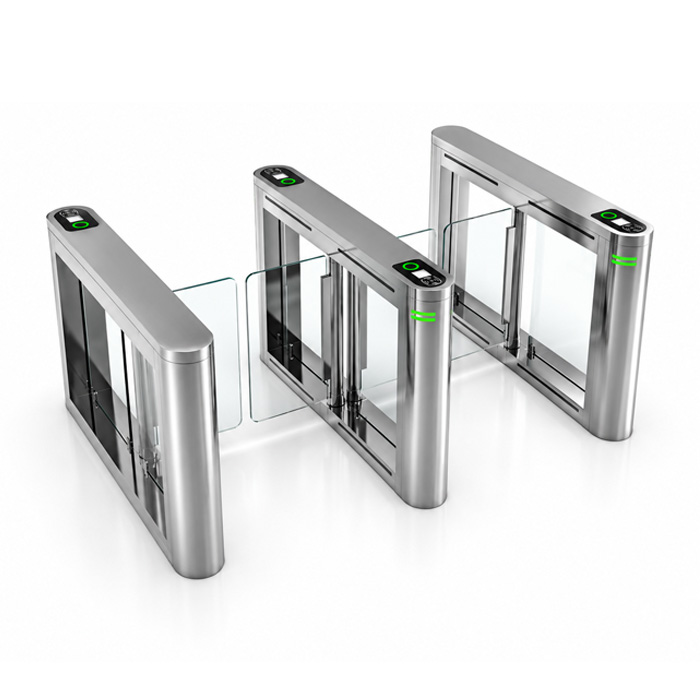

VARITO VTD-ST608 High-Speed Turnstile Gate
The VARITO VTD-ST608 High-Speed Turnstile Gate is an industrial-grade optical servo speed gate turnstile engineered for high-traffic corporate headquarters, government ministries, IT technology parks, transport interchanges, commercial bank headquarters, and modern architectural complexes. Crafted from heavy-duty 1.5mm to 2.0mm SUS304 brushed stainless steel, the VTD-ST608 combines physical durability with a streamlined architectural profile. Powered by an industrial high-speed servo motor drive rated for over 30 million maintenance-free cycles, transparent high-impact acrylic barrier swing arms, an active 8-point infrared optical sensor system (expandable up to 12 pairs) for smart anti-tailgating and anti-pinch safety, passage widths from 550mm to 900mm (expandable up to 1120mm for wheelchair access), bi-directional throughput of up to 45 persons per minute, and automatic fail-safe fire emergency release, it provides reliable pedestrian access security.
Quick Overview
- Brand & Model: VARITO VTD-ST608
- Chassis Architecture: Heavy-Duty SUS304 Brushed Stainless Steel
- Cabinet Footprint: 1500 mm Length × 200 mm Width × 980 mm Height
- Drive Mechanism: High-Speed Servo Motor Drive (30M+ Cycles Maintenance-Free)
- Optical Sensing: 8-Point Active Infrared Sensors (Expandable to 12 Pairs)
- Passage Clearance: Standard 550–900 mm (Expandable to 1120 mm Barrier-Free)
- Throughput Speed: ≤ 45 Persons / Minute High Flow Rate
- Safety & Compliance: Smart Anti-Tailgating, Anti-Pinch & Fail-Safe Fire Escape Release
| Brand Name | VARITO (ST608 Fast Access Series) |
| Model Number | VTD-ST608 (IM.ST608 Architecture) |
| Device Category | High-Speed Optical Servo Speed Turnstile Gate |
| Cabinet Material | 1.5 mm Thickness SUS304 Stainless Steel (Optional Marine-Grade SUS316) |
| Surface Finish | Brushed Hairline Polish / Mirror Polish Architectural Treatment |
| Cabinet Dimensions (L × W × H) | 1500 mm × 200 mm × 980 mm |
| Passage Channel Width | Standard 550 mm – 900 mm (Expandable up to 1120 mm for Barrier-Free Access) |
| Barrier Arm Material | High-Impact Transparent Acrylic Wing / Organic Tempered Glass Panels |
| Chassis Net Weight | Approx. 70 kg – 80 kg per Pedestal (Master / Slave Units) |
| Drive Engine | High-Speed Industrial Servo Motor Drive (Brushless DC / Servo Architecture) |
| Operating Lifespan | ≥ 30,000,000 Cycles Maintenance-Free Continuous Operation |
| Actuation / Opening Speed | 0.5 Seconds to 1.0 Second per Passage (Smooth, Silent Arm Movement) |
| Throughput Efficiency | ≤ 45 People / Minute (Dual-Direction High-Speed Flow Rate) |
| Optical Sensing System | 8-Point Active Infrared Sensors (Field Expandable to 12 Pairs) |
| Anti-Tailgating Detection | Smart Anti-Tailgating Detection with Instant Audible Alerts & Event Logging |
| Anti-Pinch / Anti-Collision Safety | Dual Protection: Optical Light Beam Interruption + Motor Torque Obstacle Rebound |
| Passing Direction Modes | Dual-Direction Access Mode / Single-Direction Field Selectable |
| User Guidance Indicators | Clear LED Direction Indicators & Multi-Language Voice Prompt Navigation |
| Power Supply Voltage | AC 110V – 220V ±10%, 50/60 Hz Universal Mains Input |
| Operational Power Consumption | Operating: ≤ 80W | Standby Mode: ≤ 25W |
| Control Communication | RS-485 Serial Network, Relay Dry Contact Interfaces & Remote Access Log Support |
| Credential System Compatibility | RFID, NFC, QR Code Scanning, Biometric Fingerprint & AI Facial Recognition |
| Life-Safety Emergency Mode | Automatic Arm Retraction / Free Push-Open during Power Loss & Fire Alarm Activation |
| Operating Temperature | -20°C to +70°C |
| Environmental Application | IP54 Rated Weatherproof Protection for Indoor & Harsh Outdoor Deployments |
| Product Certifications | CE, FCC, ISO Certified |
| Warranty Coverage | Comprehensive Manufacturer Warranty with Core Motor Support |
| Technical Support | VARITO Certified Engineering Support, CAD Foundation Layouts & Wiring Schemes |
| Supply & Commissioning | Global Delivery, Turnkey Hardware Packages & Enterprise Project Integration |
The VARITO VTD-ST608 High-Speed Turnstile Gate is a commercial optical servo speed gate turnstile engineered for demanding corporate headquarters, government ministries, IT software facilities, multinational banking towers, transit hubs, and modern commercial complexes. Designed with an elongated 1500mm × 200mm cabinet profile manufactured from heavy-gauge 1.5mm SUS304 brushed stainless steel, the VTD-ST608 delivers high mechanical strength, corrosion resistance, and protection against heavy pedestrian traffic. Driven by an industrial-grade high-speed servo motor mechanism rated for over 30 million maintenance-free cycles (MCBF), the transparent acrylic barrier swing arms actuate smoothly in 0.5 to 1.0 seconds without mechanical bouncing, motor humming, or gear backlash. The turnstile delivers a high throughput capacity of up to 45 persons per minute, helping to eliminate lobby congestion during peak entry and exit hours. The VTD-ST608 incorporates an active 8-point infrared optical sensing array (expandable up to 12 pairs) positioned along the passage corridor. This sensor matrix actively tracks pedestrian movement to detect and deter unauthorized tailgating, reverse-direction passage, and crawling. The optical sensors simultaneously provide dual anti-pinch protection: if an obstruction, child, or luggage enters the wing arc during closure, the barrier wings instantly halt and reverse outward to prevent physical impact. Accommodating standard passage widths from 550mm to 900mm and expandable up to 1120mm, the VTD-ST608 ensures full barrier-free accessibility for wheelchairs, prams, and luggage. For building life safety compliance, the turnstile features fail-safe fire alarm integration—automatically retracting the barrier arms upon mains power failure or a central fire alarm trigger to ensure an unobstructed emergency evacuation passage. With universal dry-contact relay, RS-485, and digital interfaces compatible with AI facial recognition access terminals, RFID smart cards, and dynamic QR ticketing scanners, it provides a comprehensive entrance automation solution.
High-Speed Servo Motor
Industrial servo motor drive provides smooth 0.5s–1.0s barrier opening, quiet acoustic operation, and exceeds 30M maintenance-free cycles.
8 to 12 Pairs IR Sensing
8-point infrared sensor array (expandable to 12 pairs) actively detects unauthorized tailgating and provides anti-pinch safety.
Up to 1120mm Wide Lane
Standard 550–900mm passage width expandable up to 1120mm provides barrier-free accessibility for wheelchairs and luggage.
Emergency Fire Auto-Release
Barrier arms automatically retract or open freely during power interruption or fire alarm activation, ensuring safe emergency building egress.
Explore our comprehensive range of entrance automation and security access systems at VARITO Germany, covering advanced optical speed gates, flap barriers, and full-height physical security turnstiles.
What makes the VARITO VTD-ST608 suitable for demanding commercial entrances?
The VTD-ST608 combines a high-speed industrial servo motor drive rated for over 30 million maintenance-free cycles with 1.5mm heavy-gauge SUS304 stainless steel and an expandable 8-to-12-pair infrared safety curtain, providing reliable physical security and continuous throughput of up to 45 persons per minute.
Can the VARITO VTD-ST608 accommodate wheelchair and barrier-free access?
Yes, while standard passage widths range from 550mm to 900mm, the VTD-ST608 chassis can be configured with extended barrier arms to deliver up to 1120mm of passage width, ensuring full barrier-free accessibility for wheelchairs, prams, and luggage.
Which access control verification methods work with the VTD-ST608?
The speed gate features universal dry-contact relay, RS-485, and digital interfaces compatible with AI facial recognition access terminals, RFID/NFC smart cards, dynamic QR code mobile ticketing, and biometric fingerprint scanners.
Need VARITO VTD-ST608 Turnstile Specifications & Project Inquiry?
Contact VARITO for technical datasheets, CAD planning support, and project consultation for high-speed entrance automation systems.
