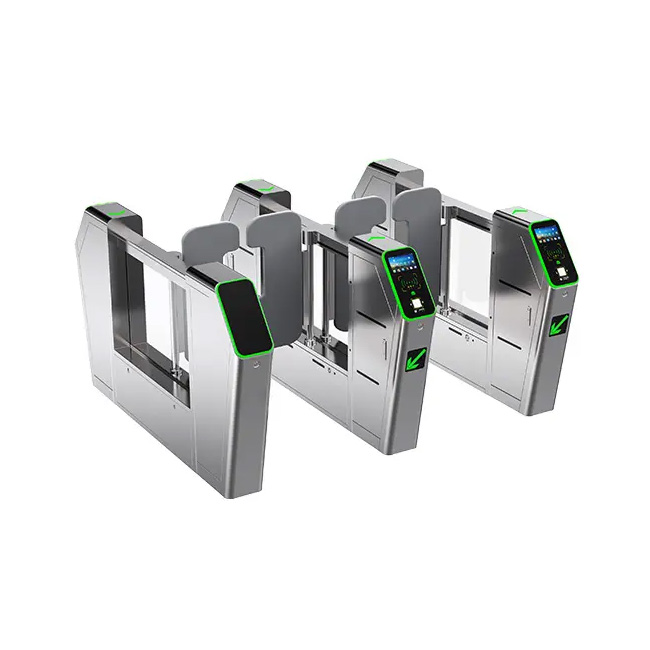

VARITO VA-T3630 High-Security Subway Ticket Checking Speed Gate
The VARITO VA-T3630 High-Security Subway Ticket Checking Speed Gate is an industrial-grade automated optical fare validation speed gate engineered for high-density public transport terminals including metro underground rail stations, intercity high-speed train interchanges, international airport boarding portals, and municipal transit concourses. Designed with an extended 2100mm cabinet length constructed from 2.0mm heavy-gauge SUS304 stainless steel, the VA-T3630 establishes an elongated corridor specifically configured for high-volume fare collection and transit security. Driven by an industrial 200W servo direct-drive brushless motor paired with an advanced 48V 450W power supply, 10mm transparent acrylic or high-elasticity polyurethane (PU) barrier arms, an active matrix of 24 pairs of infrared optical sensors, bi-directional throughput up to 55 passengers per minute, and automatic fail-safe emergency evacuation release, it delivers dependable passenger throughput and tailgating prevention.
Quick Overview
- Brand & Model: VARITO VA-T3630
- Chassis Dimensions: Extended 2100 mm Length × 220 mm Width × 1150 mm Height
- Cabinet Craftsmanship: Heavy-Duty 2.0 mm SUS304 Stainless Steel Construction
- Drive Mechanism: Heavy-Duty 200W Direct-Drive Brushless Servo Motor with Zero Rebound
- Sensor Detection: Dense Array of 24 Pairs of Active Infrared Light Curtains
- Barrier Panels: 10 mm Transparent Acrylic / Polyurethane (PU) Impact-Resistant Arms
- Passage Clearance: 600 mm Standard Transit Lane / Up to 900 mm ADA Luggage Lane
- Safety & Emergency: 24-Pair Anti-Clip Logic & Fail-Safe Fire Evacuation Auto-Release
| Brand Name | VARITO (Engineered to German Standards) |
| Model Number | VA-T3630 (T3630 Transit Architecture) |
| Device Category | High-Security Subway Ticket Checking Speed Gate / Flap Barrier Turnstile |
| Cabinet Material | Reinforced SUS304 Brushed Stainless Steel (Optional Marine-Grade SUS316) |
| Material Thickness | Top Lid Cover: 2.0 mm SUS304 | Body Casing: 2.0 mm Heavy Stainless Steel |
| Cabinet Dimensions (L × W × H) | 2100 mm × 220 mm × 1150 mm (Extended Transit Corridor Footprint) |
| Passage Channel Width | 600 mm Standard Pedestrian Lane (Configurable to 900 mm for ADA / Luggage Access) |
| Door Panel / Barrier Wing | 10 mm Transparent Acrylic Wing / High-Elasticity Soft PU Arm |
| Pedestal Net Weight | Approx. 110 kg – 130 kg per Pedestal (Heavy Vibration-Free Foundation) |
| Drive Engine | Industrial 200W Servo Direct-Drive Brushless Motor |
| Movement Mechanism | Servo Direct-Driver Swing Gate Mechanism with Zero Mechanical Rebound |
| Electronic Control System | Triple-Board Architecture: Servo Standard Board + Driver Board + Logic Board |
| Gate Operating Speed | 0.2 Seconds to 0.4 Seconds Ultra-Fast Opening / Closing Speed |
| Throughput Efficiency | 45 to 55 Passengers / Minute High-Volume Transit Flow Rate |
| Infrared Sensor Array | 24 Pairs of High-Precision Military-Grade Active Infrared Beams |
| Anti-Tailgating & Intrusion | Multi-Zone Intelligent Algorithm Detects Close Tailgating, Reversal & Unpaid Entry |
| Anti-Pinch / Anti-Clip Logic | Infrared Anti-Clip Function (Active when Gate is Open, Moving, or Closing) |
| Passing Modes | Two Modes: Normally Open (N/O) or Normally Closed (N/C); Two-Way or One-Way Validation |
| Visual Direction Guidance | Integrated High-Luminance Top Lid LED Transit Guidance Icons (Green Arrow / Red Cross) |
| Operating Mains Voltage | AC 100V – 240V, 50/60 Hz Universal Mains Supply |
| Internal Driving Power Supply | 48V 450W High-Torque Regulated Power Supply System |
| Electrical Protection | Integrated 2P Air Switch Circuit Breaker & Surge Suppression |
| Power Consumption | Standby: ≤ 35W | Peak Motor Driving: ≤ 200W |
| Communication Protocols | Standard Dry Contact Relay Inputs, RS-485 Serial & TCP/IP Network Interfaces |
| AFC & Credential Compatibility | Automatic Fare Collection (AFC), IC/ID Transit Cards, QR Code Ticketing, Face Recognition |
| Life-Safety Emergency Mode | Automatic Barrier Wing Open to Clear Passage upon Power Failure or Fire Alarm Signal |
| Operating Environment | Operating Temp: -25°C to +70°C | Operating Humidity: ≤ 90% Non-Condensing |
| Ingress Protection Rating | IP54 Rated Protection for High-Traffic Indoor & Semi-Outdoor Transit Vestibules |
| Mean Cycles Between Failures (MCBF) | ≥ 10,000,000 Continuous Maintenance-Free Operations |
| Warranty Coverage | Comprehensive Manufacturer Warranty with Core Motor Support |
| Technical Support | VARITO Certified Engineering Support, CAD Foundation Layouts & Wiring Schemes |
| Supply & Commissioning | Global Delivery, Turnkey Hardware Packages & Mass Transit Project Integration |
The VARITO VA-T3630 High-Security Subway Ticket Checking Speed Gate is an automated optical fare collection speed gate engineered for heavy-traffic public transit infrastructure, including underground subway networks, railway terminals, airport gates, and large athletic stadiums. In mass transit environments where high volumes of commuters pass through ticketing checkpoints during brief peak intervals, entrance gates require structural durability, responsive motor actuation, and high-resolution tracking. The VA-T3630 provides an elongated 2100mm cabinet length fabricated from 2.0mm heavy-gauge SUS304 brushed stainless steel, creating a defined passage corridor that tracks pedestrian trajectory with precision. Powered by a 200W direct-drive brushless servo motor with a triple-board control architecture (servo board, driver board, and logic board) backed by a 48V 450W power supply, the gate opens and closes its 10mm transparent acrylic or high-elasticity PU barrier wings in 0.2 to 0.4 seconds without gear bounce or mechanical chatter. The turnstile incorporates an active matrix of 24 pairs of military-grade infrared optical sensors along the 2.1-meter channel. This dense light curtain analyzes passenger speed to detect and prevent unpaid tailgating, counter-flow walking, and crawling attempts, while multi-zone anti-clip protection prevents the wings from closing on luggage, prams, or trailing pedestrians. For life safety, the system integrates with station fire alarm networks—automatically opening the barrier wings to a fully flush position during power interruptions or emergency signals to create an unobstructed evacuation corridor. The gate supports Normally Open (N/O) and Normally Closed (N/C) modes and integrates with Automatic Fare Collection (AFC) systems, contactless transit RFID smart cards, barcode/QR ticket scanners, and biometric facial recognition systems.
Extended 2100mm Corridor
Elongated 2100mm cabinet crafted from 2.0mm SUS304 stainless steel provides an extended tracking zone for high-density transit fare control.
200W Direct-Drive Servo
Heavy-duty 200W brushless direct-drive servo motor with triple-board logic ensures 0.2s wing actuation and 10 million MCBF cycles.
24 Pairs IR Anti-Tailgating
Dense 24-pair active infrared safety light curtain actively detects unauthorized tailgating, reverse flow, and prevents passenger clipping.
AFC Ticketing & Fire Release
Seamlessly integrates with QR, RFID, and AFC ticketing validators, with fail-safe automatic barrier opening during power loss or fire alarms.
Explore our comprehensive range of entrance automation and security access systems at VARITO Germany, covering advanced optical speed gates, flap barriers, and full-height physical security turnstiles.
Why is the extended 2100mm chassis and 24-pair IR sensor matrix essential for mass transit?
The elongated 2100mm passage channel establishes an extended tracking corridor. Combined with a dense 24-pair military-grade infrared light curtain, the turnstile accurately monitors passenger speed and trajectory, prevents ticketless tailgating in dense commuter crowds, detects reverse passenger flow, and prevents barrier wing pinch incidents with luggage or children.
Can the VARITO VA-T3630 operate in Normally Open (N/O) mode during rush hours?
Yes, the VA-T3630 supports both Normally Open (N/O) and Normally Closed (N/C) modes. In Normally Open mode, the barrier wings stay retracted inside the cabinet and only close when an unvalidated passenger attempts entry, maintaining free-flowing transit throughput up to 55 passengers per minute.
How does the speed gate respond during emergency evacuations and power loss?
The turnstile features integrated fail-safe safety protocols. In the event of a mains power interruption or an emergency signal from a central station fire alarm system, the direct-drive servo motor disengages and the barrier wings automatically open and remain recessed to maintain an unobstructed emergency evacuation route.
