Airport and Metro Station Turnstile

Varito Double Check Train Station Turnstile with Integrated Passport & ID Reader AB Door

Model: VT-M300 Brand: VARITO

VT-M300 swing gate which is made of metal+painting and acrylic in a modern style. It has anti-collision and anti-clamp function.

Product Details

Product Size2400*185*960mm
Arm Material10MM Tawny Acrylic
Throughput Rate35p/m
Power Supply100-240V(AC)
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

VT-M300 Key Features

Key highlights of the VARITO VT-M300 Train Station Turnstile with Passport Reader at a glance.

Double anti-clipping function:

Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the Swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.

Swing barrier

Swing barrier is with standard electrical interface for the integration of various readers and writers.

Direction display

Direction display to guide passenger which direction is to go.

Card-reading

Card-reading with memory or without memory function.

VT-M300 Specifications

ItemDetails
Model NumberVT-M366
Product Size2700*200*1300mm
Pass Width600mm
Net Weight160kg
Thickness2.0mm
Cabinet Material of Train Station Turnstile2.0mm Metal + Painting
Side Panel Material10mm Transparent PC
Arm Material10mm Transparent Acrylic
Photocell of Train Station Turnstile17 pairs
Pass Rate35 p/m
Power Supply24V 240W
Operational Voltage24V (DC)
Max Power Consumption100W
Frequency50–60Hz
Working Temperature-20°C to +70°C
MCBF15,000,000 cycles

VT-M300 Product Description

Varito Integrated Passport & ID Reader Turnstile – Double Check AB Door for Train Stations

Swing Train Station Gate Barrier Gate Turnstile Description

VT-M300 swing gate which is made of metal+painting and acrylic in a modern style. It has anti-collision and anti-clamp function. It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing

VARITO Train Station Turnstile with Passport Reader
VARITO Train Station Turnstile with Passport Reader

Varito Train Station Turnstile Gate with AB Door & Built-in Passport/ID Verification System

1. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the Swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm. 2. Swing barrier is with standard electrical interface for the integration of various readers and writers. 3. Direction display to guide passenger which direction is to go. 4. Card-reading with memory or without memory function.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO Train Station Turnstile with Passport Reader
Face Recognition Machine
Face Recognition Machine
Barcode-QR
Barcode-QR
Card Collector Machine
Card Collector Machine
Biometric Device
Biometric Device
Push Button
Push Button
RFID Card Reader
RFID Card Reader
RFID TAG
RFID TAG

VT-M300 Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

Train Station Turnstile with Passport Reader – installation view

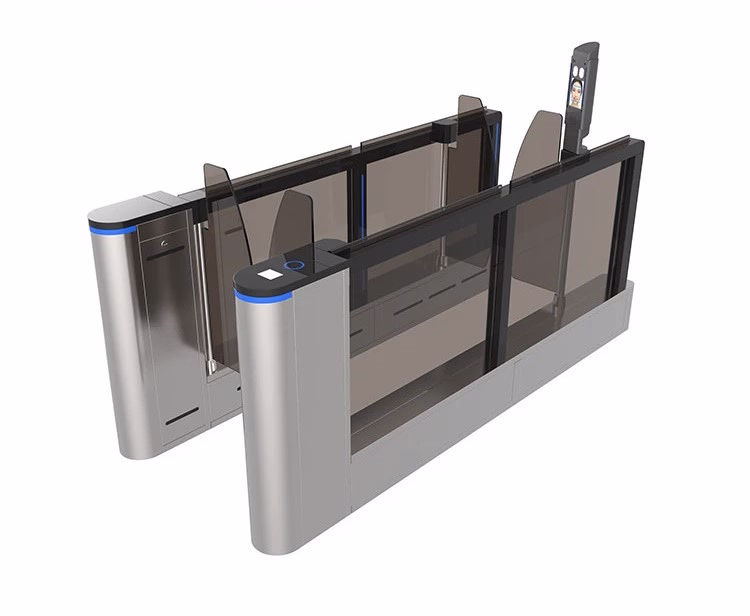

Train Station Turnstile with Passport Reader – product view

VT-M300 Details and Dimensions

All the details and dimensions can be customized according to your project site

Train Station Turnstile with Passport Reader front view
  • RFID card reader
  • LED indicator
  • Full 304 stainless steel
  • Bearing base cover
Train Station Turnstile with Passport Reader dimensions
