Dual View Baggage Scanner

VARITO XR3G-10080D  Dual View X-Ray Baggage Scanner

Model: XR3G-10080D Brand: VARITO

The VARITO XR3G-10080D X-Ray Baggage Scanner is a heavyweight champion in the industry, specifically engineered for oversized baggage and palletized parcels.

Product Details

Brand OriginGermany
Dimensions3080mm*1740mm*1600mm (L×W×H)
Tunnel Size (mm)1010mm*820mm
X-Ray Generator160kV Dual View
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

XR3G-10080D Key Features

Key highlights of the VARITO XR3G 10080D Baggage Scanner at a glance.

Dual view 160kV

Dual view 160kV sources deliver powerful 42mm penetration capability

Large 10080 tunnel size accommodates

Large 10080 tunnel size accommodates oversized luggage easily

Ergonomic 310mm conveyor height

Ergonomic 310mm conveyor height ensures convenient baggage loading

Widely used in hotels, stations

Widely used in hotels, stations, and public security checkpoints

Dual-view imaging enhances detection

Dual-view imaging enhances detection accuracy and operational efficiency

Elegant white body customizable

Elegant white body customizable in multiple color options

Sleek white body with optional color

Sleek white body with optional color customization available

Stable performance ensures reliable

Stable performance ensures reliable inspection for high-traffic environments

XR3G-10080D Specifications

Physical Specifications
Dimensions3080mm*1740mm*1600mm (L×W×H)
Tunnel Size1010mm*820mm (W×H)
Console Table1200mm L*600mm W*750mm H
Equipment Weight950 kg
Conveyor Speed0.22 m/s(adjustable)
Conveyor Load200 kg
Conveyor Belt Height310mm (from ground)
X-Ray Generator
X-Ray Generator160kV Dual View
EnergyDual-energy 4 Color Imaging
Penetration42mm steel
Wire ResolutionAWG 38 (φ0.102mm)
Material SeparationLow Z, Medium Z, High Z to 0.5 Z accuracy
Spatial ResolutionHorizontal 1.0mm; Vertical 1.0mm
Single Inspection Dose< 5 μGy/h
X-ray Leakage< 0.5 μGy/h (5 cm outside surface)
OrientationTop irradiation
Generator CoolingSealed oil cooling / 100%
Tube Current0.5 – 1.25 mA
Power Consumption800W
Noise< 55 dB
Film SafetyASA/ISO1600 Film Guaranteed
Power SupplyAC 220V, 50Hz
System & Monitor
Operating SystemEmbedded Windows 10
MonitorOne 21.5-inch LCD monitor, 1920×1080
Memory1TB
KeyboardSpecial design with shortcut buttons
Electric RollerSingle-phase
Imaging Features
X-ray SensorL-Shaped Photodiode Array, 12-bit
Image Processing24-bit real-time, 4-color analysis, ID/date marking, bag counting
Image DisplayHigh resolution 1920×1080 pixels
Image Enhancement1–64× zoom, Color/B&W, Partial Increase, High/Low Penetration, Over-Increasing, Organic Removal, Inorganic Removal, Inverting, Brightening, Darkening, Gray Sweeping
Explosives & Narcotics DetectionSuspicious organics highlight (Zeff 7,8,9)
Suspicious AlarmAlarm & marking for explosives, drugs, and hard-to-penetrate items
Threat Image Projection (TIP)Inserts realistic threat images for training & operator vigilance
Image RecallHundreds
Miscellaneous FunctionsTime/date display, counters, user management, timers, self-test, diagnostics, system log, standby mode, training mode
Scanning DirectionDual-direction
Operating Environment
Storage Temperature-20℃ to 40℃
Operating Temperature5℃ to 40℃
Relative Humidity0%–90% RH (non-condensing)
Storage Humidity0%–90% RH (non-condensing)
Options
AI Feature41 classes in 15 major types
CamerasReal-time video recording for item-person association
UPS1.5KVA (15–20 minutes)
OEM BrandingApplied on metal frame; built-in interface branding
Packaging Information
Packing ListConsole Table, Manual, Cable, Tools (set)
Packaging MethodWooden Pallet
Packaging Dimensions2070mm L × 1480mm W × 1820mm H
N.W.650 kg
G.W.755 kg
Regulatory Compliance
China StandardGB 12664-2024
InternationalCE, ROHS, FCC

XR3G-10080D Product Description

High-Performance 160kV Imaging Technology

The core strength of the XR3G-10080D lies in its high-performance 160kV X-ray generator. While standard scanners struggle with thick metallic casings, this model achieves an impressive 42mm steel plate penetration.

This allows security operators to:

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Superior Clarity: The 160kV source ensures that even when a 200kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.

VARITO XR3G 10080D Baggage Scanner
VARITO XR3G 10080D Baggage Scanner

Heavy-Duty Design for High-Traffic Hubs

The physical build of the VARITO XR3G-10080D reflects its industrial purpose. Weighing in at 950 kg, this is a stable, rugged machine designed for 24/7 operation in demanding environments.

1. 200kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.

2. Low Profile Design: With a Conveyor Belt Height of only 310mm, loading and unloading heavy items is significantly easier for staff, reducing physical strain and improving the speed of the checkpoint.

3. Large Format Tunnel: The 1010mm x 820mm opening is the "gold standard" for Out-of-Gauge (OOG) baggage, fitting items that standard airport scanners simply cannot accommodate.

4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO XR3G 10080D Baggage Scanner
X-Ray Generator
X-Ray Generator
Detector Array
Detector Array
Conveyor Belt
Conveyor Belt
Radiation Shield
Radiation Shield
Scanning Tunnel
Scanning Tunnel
Image Processing
Image Processing
Operator Control Console
Operator Control Console

XR3G-10080D Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

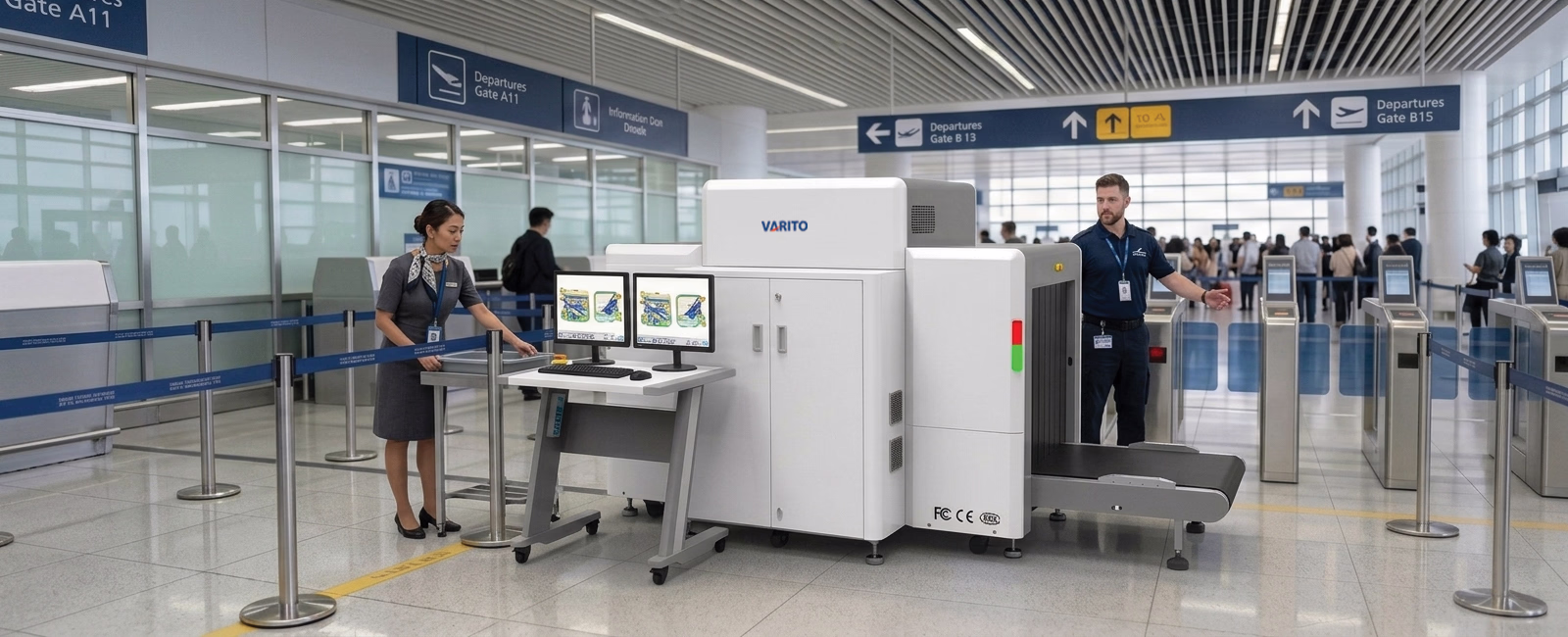

XR3G 10080D Baggage Scanner – installation view

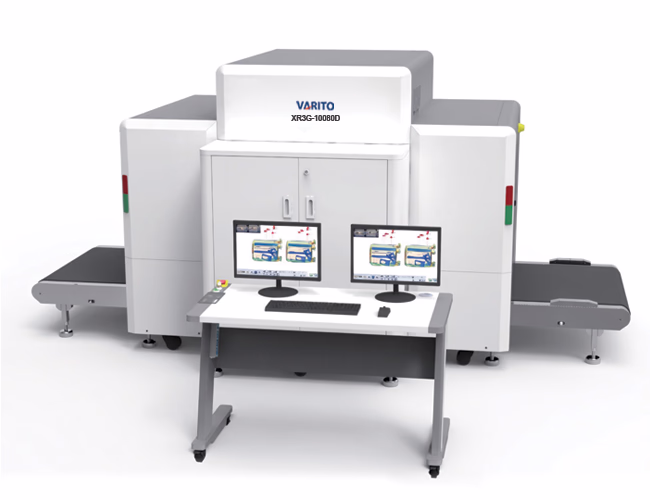

XR3G 10080D Baggage Scanner – product view

XR3G-10080D Details and Dimensions

All the details and dimensions can be customized according to your project site

XR3G 10080D Baggage Scanner front view
  • X-Ray Generator
  • Screening Monitor
  • Conveyor Belt
  • Full 304 stainless steel
varito XR3G-10080D

More About the XR3G 10080D Baggage Scanner

Smart Access Control Solution for Modern Security

VARITO XR3G-10080D X-Ray Baggage Scanner

In high-stakes security environments, from international airports to massive logistics hubs, the ability to inspect large volumes without losing detail is critical. The VARITO XR3G-10080D X-Ray Baggage Scanner is a heavyweight champion in the industry, specifically engineered for oversized baggage and palletized parcels. Boasting a massive 1010mm x 820mm tunnel size, this system ensures that even the bulkiest items are screened with surgical precision.

As a premier solution from the VARITO brand, the XR3G-10080D is built on the foundations of Experience, Expertise, Authoritativeness and Trustworthiness. It provides security professionals with the power and clarity needed to identify threats hidden deep within dense cargo.

High-Performance 160kV Imaging Technology

The core strength of the XR3G-10080D lies in its high-performance 160kV X-ray generator. While standard scanners struggle with thick metallic casings, this model achieves an impressive 42mm steel plate penetration.

This allows security operators to:

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Superior Clarity: The 160kV source ensures that even when a 200kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.

Heavy-Duty Design for High-Traffic Hubs

The physical build of the VARITO XR3G-10080D reflects its industrial purpose. Weighing in at 950 kg, this is a stable, rugged machine designed for 24/7 operation in demanding environments.

1. 200kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.

2. Low Profile Design: With a Conveyor Belt Height of only 310mm, loading and unloading heavy items is significantly easier for staff, reducing physical strain and improving the speed of the checkpoint.

3. Large Format Tunnel: The 1010mm x 820mm opening is the "gold standard" for Out-of-Gauge (OOG) baggage, fitting items that standard airport scanners simply cannot accommodate.

4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.

Building a Synchronized Defense with VARITO

A truly secure perimeter requires more than just high-quality scanning; it requires a unified ecosystem. The VARITO brand offers a comprehensive range of products that work together to create an impenetrable security blanket.

To maximize your facility's safety, we recommend integrating the XR3G-10080D with:

* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.

* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.

* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.

By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.

Ideal Applications of Baggage Scanner

  • Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
  • Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
  • Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
  • Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.

Conclusion: Invest in Authoritative Security

The VARITO XR3G-10080D is an investment in absolute peace of mind. By combining massive tunnel capacity with elite 160kV penetration and dual-energy intelligence, it provides a future-proof solution for any high-security site.

Frequently Asked Questions (FAQs)

1. Is 42mm steel penetration enough for palletized cargo? Yes. 42mm is an exceptional standard for baggage scanners, allowing the XR3G-10080D to see through reinforced crates and thick metallic suitcase frames that would stop a standard scanner.

2. Can this machine handle continuous operation in a busy airport? Absolutely. The 160kV generator is oil-cooled and designed for high-frequency use, while the 950 kg frame provides the stability needed for constant conveyor movement.

3. How does the 4-color imaging assist the operator? It acts as an immediate visual filter. If an operator sees an orange mass (organic) inside a blue metallic box, they know to inspect for potential explosives or prohibited organic contraband.

4. Is it safe for sensitive electronics and film? Yes. The radiation dosage is strictly controlled to meet international ISO and CE standards, making it safe for laptops, high-speed photographic film, and pharmaceuticals.

5. Does it require a specialized power supply? While it is a high-power machine, it is designed to work with standard industrial power configurations. It also features a power-saving mode to reduce electricity consumption during idle times.
