Dual View Baggage Scanner

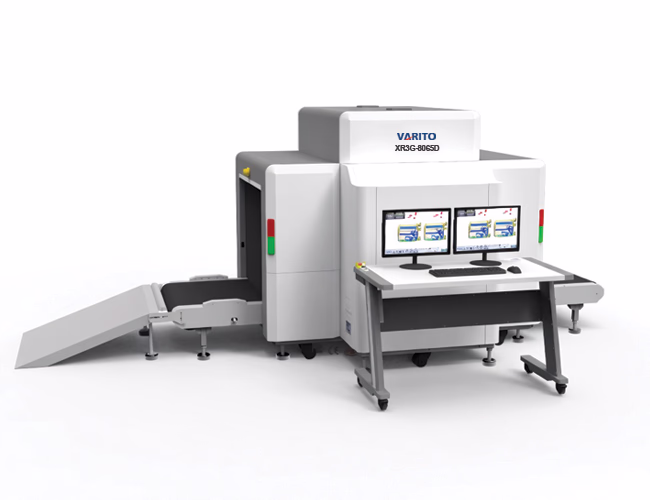

VARITO XR3G-8065D  Dual View X-Ray Baggage Scanner

Model: XR3G-8065D Brand: VARITO

The VARITO XR3G-8065D X-Ray Baggage Scanner is engineered for professionals who refuse to compromise on clarity

Product Details

Brand OriginGermany
Dimensions2780mm×1540mm×1450mm
Tunnel Size (mm)800mm×650mm
X-Ray Generator160kV Dual View
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

XR3G-8065D Key Features

Key highlights of the VARITO XR3G 8065D Baggage Scanner at a glance.

Dual view 160kV

Dual view 160kV sources ensure clear and accurate imaging

42mm penetration capability enhances

42mm penetration capability enhances detection performance

8065 tunnel size

8065 tunnel size fits medium and large baggage

310mm conveyor height allows

310mm conveyor height allows easy luggage handling

Widely used in hotels

Widely used in hotels, stations, and public venues

Central alarm indicator

Central alarm indicator for clear visual alerts

Sleek white body customizable

Sleek white body customizable to preferred colors

Designed for efficiency

Designed for efficiency, safety, and user convenience

XR3G-8065D Specifications

Physical Specifications
Dimensions2780mm × 1540mm × 1450mm (L×W×H)
Tunnel Size800mm × 650mm (W×H)
Console Table1200mm L × 600mm W × 750mm H
Equipment Weight650 kg
Conveyor Speed0.22 m/s (adjustable)
Conveyor Load200 kg
Conveyor Belt Height320mm (from ground)
X-Ray Generator
X-Ray GeneratorPrimary 160Kv; Side 160Kv
EnergyDual-energy, 4 Color Imaging
PenetrationPrimary & Side: 42mm steel plate
Wire ResolutionPrimary & Side: AWG 40 (φ0.0787mm)
Material SeparationLow Z / Medium Z / High Z (0.5 Z accuracy)
Spatial ResolutionPrimary & Side: Horizontal 1.0mm; Vertical 1.0mm
Single Inspection Dose< 5 μGy/h
X-ray Leakage< 0.5 μGy/h (5 cm outside surface)
OrientationTop & Side Irradiation
Generator CoolingSealed oil cooling / 100%
Tube Current0.5–1.25mA
Power Consumption1000W
Noise< 55 dB
Film SafetyASA/ISO1600 Film Guaranteed
Power SupplyAC 220V, 50Hz
System & Monitor
Operating SystemEmbedded Windows 10
MonitorTwo 21.5-inch LCD monitors, 1920×1080
Memory1TB
KeyboardSpecial design with shortcut buttons
Electric RollerSingle-phase
Imaging Features
X-ray SensorL-Shaped Photodiode Array, 12-bit
Image Processing24-bit real-time, 4-color analysis, ID/date marking, bag counting
Image Display1920×1080 high resolution
Image Enhancement1–64× zoom, Color/B&W, Partial Increase, High/Low Penetration, Over-Increasing, Organic Removal, Inorganic Removal, Inverting, Brightening, Darkening, Gray Sweeping
Explosives & Narcotics DetectionSuspicious organics highlight (Zeff 7, 8, 9)
Suspicious AlarmAlarm + box line for explosives, drugs, and hard-to-penetrate materials
Threat Image Projection (TIP)Inserts realistic threat images for operator training and vigilance
Image RecallHundreds
Miscellaneous FunctionsTime/date display, counters, user management, system timers, self-test, diagnostics, system log, standby mode, training mode
Scanning DirectionDual-direction
Operating Environment
Storage Temperature-20℃ to 40℃
Operating Temperature5℃ to 40℃
Relative Humidity0%–90% RH (non-condensing)
Storage Humidity0%–90% RH (non-condensing)
Options
AI Feature41 classes in 15 major types
CamerasReal-time video recording for item–person association
UPS1.5KVA (15–20 minutes)
OEM BrandingApplied on metal frame; built-in interface branding
Packaging Information
Packing ListConsole Table, Manual, Cable, Tools (set)
Packaging MethodWooden Pallet
Packaging Dimensions2920mm L × 1640mm W × 1800mm H
N.W.650 kg
G.W.750 kg
Regulatory Compliance
China StandardGB 12664-2024
InternationalCE, ROHS, FCC

XR3G-8065D Product Description

High-Performance 160kV Imaging Technology

The core strength of the XR3G-8065D lies in its high-performance 160kV X-ray generator. While standard scanners struggle with thick metallic casings, this model achieves an impressive 42mm steel plate penetration.

This allows security operators to:

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Superior Clarity: The 160kV source ensures that even when a 200kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.

VARITO XR3G 8065D Baggage Scanner
VARITO XR3G 8065D Baggage Scanner

Heavy-Duty Design for High-Traffic Hubs

The physical build of the VARITO XR3G-8065D reflects its industrial purpose. Weighing in at 950 kg, this is a stable, rugged machine designed for 24/7 operation in demanding environments.

1. 200kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.

2. Industrial-Grade Build: Weighing 650 kg, the equipment provides a stable, vibration-free scanning environment, which is essential for producing high-resolution, sharp images.

3. Large Format Tunnel: The 1010mm x 820mm opening is the "gold standard" for Out-of-Gauge (OOG) baggage, fitting items that standard airport scanners simply cannot accommodate.

4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO XR3G 8065D Baggage Scanner
X-Ray Generator
X-Ray Generator
Detector Array
Detector Array
Conveyor Belt
Conveyor Belt
Radiation Shield
Radiation Shield
Scanning Tunnel
Scanning Tunnel
Image Processing
Image Processing
Operator Control Console
Operator Control Console

XR3G-8065D Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

XR3G 8065D Baggage Scanner – installation view
XR3G 8065D Baggage Scanner – product view

XR3G-8065D Details and Dimensions

All the details and dimensions can be customized according to your project site

XR3G 8065D Baggage Scanner front view
  • X-Ray Generator
  • Screening Monitor
  • Conveyor Belt
  • Full 304 stainless steel
XR3G 8065D Baggage Scanner dimensions

More About the XR3G 8065D Baggage Scanner

Smart Access Control Solution for Modern Security

VARITO XR3G-8065D X-Ray Baggage Scanner

In the demanding world of modern security, the ability to see clearly through dense materials is the difference between safety and a security breach. The VARITO XR3G-8065D X-Ray Baggage Scanner is engineered for professionals who refuse to compromise on clarity. Featuring a specialized 800mm x 650mm tunnel size, this model is the perfect medium-to-large format solution for airport checkpoints, government buildings and high-end commercial hubs.

As a signature product from the VARITO brand, the XR3G-8065D embodies combining massive 160kV power with intelligent software to align with Experience, Expertise, Authoritativeness and Trustworthiness standards.

High-Performance 160kV Imaging Technology

The core strength of the XR3G-8065D lies in its high-performance 160kV X-ray generator. While standard scanners struggle with thick metallic casings, this model achieves an impressive 42mm steel plate penetration.

This allows security operators to:

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Superior Clarity: The 160kV source ensures that even when a 200kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.

Heavy-Duty Design for High-Traffic Hubs

The physical build of the VARITO XR3G-8065D reflects its industrial purpose. Weighing in at 950 kg, this is a stable, rugged machine designed for 24/7 operation in demanding environments.

1. 200kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.

2. Low Profile Design: With a Conveyor Belt Height of only 310mm, loading and unloading heavy items is significantly easier for staff, reducing physical strain and improving the speed of the checkpoint.

3. Industrial-Grade Build: Weighing 650 kg, the equipment provides a stable, vibration-free scanning environment, which is essential for producing high-resolution, sharp images.

4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.

Building a Synchronized Defense with VARITO

A truly secure perimeter requires more than just high-quality scanning, it requires a unified ecosystem. The VARITO brand offers a comprehensive range of products that work together to create an impenetrable security blanket.

To maximize your facility's safety, we recommend integrating the XR3G-8065D with:

* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.

* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.

* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.

By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.

Ideal Applications of Baggage Scanner

  • Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
  • Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
  • Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
  • Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.

Conclusion: Invest in Authoritative Security

Choosing the VARITO XR3G-8065D (160kV) means investing in a future-proof security solution. Its superior penetration, ergonomic tunnel size, and industrial-strength load capacity make it an invaluable asset for any high-security site. When you choose the VARITO brand, you are choosing a partner dedicated to technical excellence and global security leadership.

Frequently Asked Questions (FAQs)

1. Is 42mm steel penetration enough for airport security? Yes. 42mm is an exceptional standard for baggage scanners, allowing the XR3G-8065D to see through almost all commercial luggage and thick metallic casings.

2. Can the conveyor handle industrial parcels? Absolutely. With a 200kg load capacity and an 800x650mm tunnel, it is perfectly suited for both passenger luggage and medium-sized industrial freight.

3. Is it safe for food, medicines, and electronic devices? Yes. The radiation levels are strictly controlled to meet international ISO and CE safety standards, ensuring that food, laptops, and pharmaceuticals remain completely unaffected.

4. How does the 4-color imaging help the security operator? It acts as a primary visual filter. By highlighting organic materials in orange, it allows operators to immediately focus on suspicious items like liquids or plastic explosives.

5. Does the machine support image storage for forensic review? Yes, it features a massive internal storage capacity (100,000+ images) and supports LAN/USB export for training or investigation purposes.
