Dual Energy Baggage Scanner

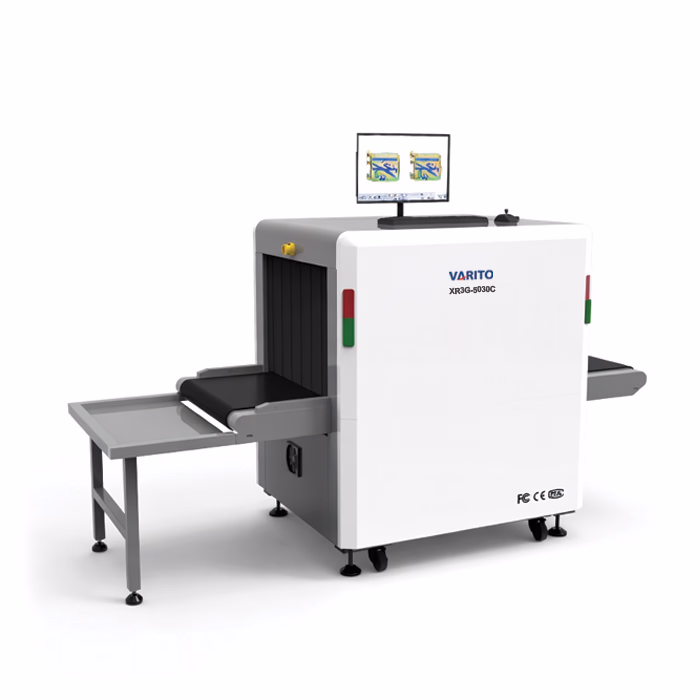

VARITO XR3G-5030C X-Ray Baggage Scanner

Model: XR3G-5030C Brand: VARITO

VARITO XR3G-5030C X-Ray Baggage Scanner, a streamlined, high-efficiency system designed for the rapid screening of small bags, briefcases and mail.

Product Details

Brand OriginGermany
Dimensions2762mm×766mm×1211mm (L×W×H)
Tunnel Size (mm)500mm×300mm
X-Ray Generator80kV
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

XR3G-5030C Key Features

Key highlights of the VARITO XR3G 5030C Baggage Scanner at a glance.

Elegant dark-gray design delivers

Elegant dark-gray design delivers a premium visual appearance

Front and rear LED indicators

Front and rear LED indicators enhance user experience quality

Extended dual tables provide seamless

Extended dual tables provide seamless throughput for busy checkpoints

One-touch start

One-touch start and stop ensures quick, easy operation

Bidirectional scanning improves

Bidirectional scanning improves throughput and inspection flexibility

Sunken outlet table design

Sunken outlet table design allows smooth baggage handling

Double-layer radiation

Double-layer radiation curtain ensures safety and durability

Emergency stop buttons

Emergency stop buttons on all corners for rapid response

XR3G-5030C Specifications

Physical Specfications
Dimensions2762mm × 766mm × 1211mm (L×W×H)
Tunnel Size500mm × 300mm (W×H)
Console TableNA
Equipment Weight245Kg
Conveyor Speed0.22 m/s (adjustable)
Conveyor Load100KG
Conveyor Belt Height660mm (from ground)
X-Ray Generator
X-Ray Generator80kV
EnergySingle-energy
Penetration12mm steel plate
Wire ResolutionAWG 38 (φ0.102mm)
Material SeparationLow Z, Medium Z, High Z to 0.5 Z accuracy
Spatial ResolutionHorizontal: 1.0mm; Vertical: 1.0mm
Single Inspection Dose<5μGy/h
X-ray Leakage<0.5μGy/h at 5cm outside external surface
OrientationTop irradiation
Generator CoolingSealed oil cooling / 100%
Tube Current0.5–1.25mA
Power Consumption500W
Noise<55 dB
Film SafetyGuarantee ASA/ISO1600 Film
Power SupplyAC 220V, 50 HZ
System & Monitor
Operating SystemEmbedded Windows 10 operating system
Monitor21.5-inch LCD, 1920×1080
Memory1TB
KeyboardSpecial designed with shortcut buttons
Electric RollerSingle-phase
Imaging Features
X-ray SensorL-Shaped Photodiode Array, 12bit deep
Image Processing24bit real time processing ,4 colors analysis, Images displayed markeddateand ID No., Count the number of bags
Image DisplayHigh resolution of 1920*1080 pixel;
Image Enhancement:1-64x image zoom in / Color/Black & White / Partial Increasing /HighPenetration / Low Penetration / Over-Increasing / Organic Removal /
Explosives & Narcotics DetectionSuspicious organics highlight (Zeff = 7, 8, 9)
Suspicious AlarmAlarm and box line the suspicious objects including hard to penetratematerial, explosives and drugs
Threat Image Projection (TIP)Inserting fictional, but realistic images of threat items into baggageduringscreening operation, for maintenance of vigilance, as well as trainingandassessment of image
Image RecallHundreds
Misc FunctionsTime/date display, counters, user management, system-on/X-ray-ontimers, power on self test, built-in diagnostic facilities, system log, systemstandbyand stimulant training, etc.
Scanning DirectionDual-direction
Operating Environment
Storage Temperature-20℃ to 40℃
Operating Temperature5℃ to 40℃/10%to 90
Relative Humidity0%–90% RH (non-condensing)
Storage Humidity0%–90% RH (non-condensing)
Options
AI Feature41 classes in 15 major types
CamerasCarmera solution:Real-time video recording for item-person association and lost item retrieval.
UPS1.5 KVA, 15–20 mins backup
OEM BrandingMetal frame & interface
Packaging Information
Packing ListEnglish Manual ×1; Cable ×1; Tools ×1 set
Packaging MethodWooden Pallet
Packaging Dimensions1700mm × 870mm × 1460mm
N.W.290KG
G.W.340KG
Regulatory Compliance
China StandardGB 12664-2024
InternationalCE, ROHS, FCC

XR3G-5030C Product Description

Precision 80kV Imaging for High-Detail Detection

The XR3G-5030C is powered by a specialized 80kV X-ray generator. While optimized for lower power consumption, it does not compromise on the clarity required to identify hidden threats.

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Single-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, can handle heavy loads with consistent, smooth movement.

4. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.

VARITO XR3G 5030C Baggage Scanner
VARITO XR3G 5030C Baggage Scanner

Engineered for Small Spaces & High Mobility

1. 100kg Load Capacity: The heavy-duty conveyor belt is designed to handle up to 100 kg, easily accommodating heavy backpacks and commercial courier bags.

2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.

3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.

4. Heavy-Duty Conveyor: Built to support a staggering 500kg distributed load, ensuring the motor handles heavy cargo without lagging.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO XR3G 5030C Baggage Scanner
X-Ray Generator
X-Ray Generator
Detector Array
Detector Array
Conveyor Belt
Conveyor Belt
Radiation Shield
Radiation Shield
Scanning Tunnel
Scanning Tunnel
Image Processing
Image Processing
Operator Control Console
Operator Control Console

XR3G-5030C Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

XR3G 5030C Baggage Scanner – installation view
XR3G 5030C Baggage Scanner – product view

XR3G-5030C Details and Dimensions

All the details and dimensions can be customized according to your project site

XR3G 5030C Baggage Scanner front view
  • Screening Monitor
  • X-Ray Generator
  • Conveyor Belt
  • Full 304 stainless steel
XR3G 5030C Baggage Scanner dimensions

More About the XR3G 5030C Baggage Scanner

Smart Access Control Solution for Modern Security

VARITO VARITO XR3G-5030C X-Ray Baggage Scanner

In the world of urban security, space is often as valuable as safety. For facilities like boutique hotels, small office receptions, and private clinics, a massive industrial scanner is simply not practical. Enter the VARITO XR3G-5030C X-Ray Baggage Scanner, a streamlined, high-efficiency system designed for the rapid screening of small bags, briefcases and mail. With its 500mm x 300mm tunnel size, it is the industry’s most versatile "compact" guardian.

As a signature product from the VARITO brand, this model adheres to the highest global standards of reliability. VARITO has crafted a device that offers professional-grade detection in a footprint that fits almost anywhere.

Precision 80kV Imaging for High-Detail Detection

The XR3G-5030C is powered by a specialized 80kV X-ray generator. While optimized for lower power consumption, it does not compromise on the clarity required to identify hidden threats.

1. 12mm Steel Penetration: Effortlessly sees through standard suitcase frames, laptops, and thick clothing to identify hidden metallic objects.

2. Single-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Reduced Energy Consumption: The 80kV source is more energy-efficient, making it ideal for 24/7 operation in facilities looking to maintain a lower carbon footprint without sacrificing safety.

Engineered for Small Spaces & High Mobility

The VARITO XR3G-5030C is designed with the user’s environment in mind. It is lightweight enough for easy relocation but robust enough for 24/7 duty.

1. 100kg Load Capacity: The reinforced conveyor belt can handle heavy backpacks and courier bags weighing up to 100 kg, ensuring a steady flow at your entrance.

2. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the belt speed can be fine-tuned to match your security team’s pace, preventing bottlenecks during peak hours.

3. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.

Total Security Integration with VARITO Authority

A high-quality checkpoint is only as strong as its weakest link. To achieve a 360-degree security posture, the XR3G-5030C should be integrated into a wider ecosystem provided by the VARITO brand.

For a complete "Smart Entrance" setup, we recommend pairing this scanner with:

* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.

* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.

* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.

By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.

Key Technical Specifications

* Tunnel Size: 500(W) × 300(H) mm

* Penetration: 12mm Steel Plate (Elite Standard)

* Generator: 80kV (Oil-cooled for continuous use)

* Weight: 245 kg (Highly Mobile)

* Safety: Double-layer lead-impregnated curtains for maximum operator protection.

Ideal Applications of Baggage Scanner

  • Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
  • Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
  • Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
  • Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.

Conclusion: Invest in Authoritative Security

The VARITO XR3G-5030C proves that you don't need a massive machine to provide world-class security. Its combination of high-resolution 80kV imaging, 100kg load capacity, and compact design makes it an invaluable asset for any modern facility. When you choose the VARITO brand, you are choosing an authority in safety, precision and technical innovation.

Frequently Asked Questions (FAQs)

1. Is a 500x300mm tunnel big enough for most bags? Yes. This size is specifically designed for "hand luggage"—laptops, backpacks, purses, and mail parcels—which account for the majority of items carried into office buildings and hotels.

2. Can the XR3G-5030C be moved easily? Compared to standard scanners, yes. At 245 kg and with built-in heavy-duty casters, it can be repositioned within a building with relative ease.

3. Is X-ray radiation safe for laptops and tablets? Absolutely. The system is designed to be 100% safe for all electronic devices, photographic film (up to ISO 1600), and pharmaceuticals.

4. Does it require a specialized power supply? No, the XR3G-5030C is highly energy-efficient and runs on standard commercial power outlets. It also includes an eco-mode to save power when not in use.

5. How does the 4-color imaging work? The software analyzes the atomic number of the scanned items. Organic materials appear orange, making it easy for operators to spot suspicious liquids or powders instantly.
