Dual Energy Baggage Scanner

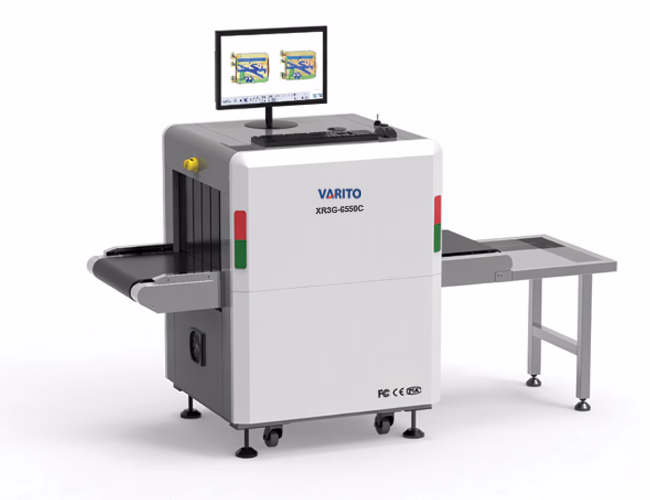

VARITO XR3G-6550C X-Ray Baggage Scanner

Model: XR3G-6550C Brand: VARITO

The VARITO XR3G-6550C X-Ray Baggage Scanner is engineered for facilities that demand high-penetration imaging within a space-saving footprint.

Product Details

Brand OriginGermany
Dimensions2890mm×916mm×1411mm
Tunnel Size (mm)650mm×500mm
X-Ray Generator140kV
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

XR3G-6550C Key Features

Key highlights of the VARITO XR3G 6550C Baggage Scanner at a glance.

140kV source delivers 40mm

140kV source delivers 40mm penetration for clearer imaging

Elegant dark-gray finish delivers

Elegant dark-gray finish delivers a modern, premium appearance

Front and rear LED panels

Front and rear LED panels support multilingual customizable messages

Dual matching extension tables

Dual matching extension tables enhance visual harmony and functionality

Sunken outlet design allows smoother

Sunken outlet design allows smoother baggage transfer

Bidirectional scanning improves

Bidirectional scanning improves inspection flexibility and throughput

Double-layer radiation

Double-layer radiation curtains ensure superior safety and durability

Emergency stop buttons

Emergency stop buttons on all corners enable quick response operation

XR3G-6550C Specifications

Physical Specfications
Dimensions2890mm × 916mm × 1411mm (L×W×H)
Tunnel Size650mm × 500mm (W×H)
Console Table700mm L × 600mm W × 750mm H
Equipment Weight380Kg
Conveyor Speed0.22 m/s (adjustable)
Conveyor Load100KG
Conveyor Belt Height660mm (from ground)
X-Ray Generator
X-Ray Generator140kV
EnergyDual-engery 4 Color Imaging
Penetration40mm steel plate
Wire ResolutionAWG 38 (φ0.102mm)
Material SeparationLow Z, Medium Z, High Z to 0.5 Z accuracy
Spatial ResolutionHorizontal: 1.0mm; Vertical: 1.0mm
Single Inspection Dose<5μGy/h
X-ray Leakage<0.5μGy/h at 5cm outside external surface
OrientationBottom irradiation
Generator CoolingSealed oil cooling / 100%
Tube Current0.5–1.25mA
Power Consumption800W
Noise<55 dB
Film SafetyGuarantee ASA/ISO1600 Film
Power SupplyAC 220V, 50 HZ
System & Monitor
Operating SystemEmbedded Windows 10 operating system
Monitor21.5-inch LCD monitor, 1920 × 1080
Memory1TB
KeyboardSpecial designed with shortcut buttons
Electric RollerSingle-phase
Imaging Features
X-ray SensorL-Shaped Photodiode Array, 12bit deep
Image Processing24bit real-time processing, 4-color analysis, date & ID display, bag counter
Image Display1920 × 1080 resolution
Image Enhancement1–64x zoom, Color/B&W, Partial Increasing, High/Low Penetration, Over-Increasing, Organic Removal, Inorganic Removal, Inverting, Brightening, Darkening, Gray Sweeping
Explosives & Narcotics DetectionSuspicious organics highlight (Zeff = 7, 8, 9)
Suspicious AlarmAlarm & box-line for explosives, drugs, and hard-to-penetrate materials
Threat Image Projection (TIP)Inserts fictional threat images for training and vigilance
Image RecallHundreds
Misc FunctionsTime/date display, counters, user management, timers, power-on self-test, diagnostics, system log, standby mode, stimulant training
Scanning DirectionDual-direction
Operating Environment
Storage Temperature-20℃ to 40℃
Operating Temperature5℃ to 40℃ / 10%–90% RH
Relative Humidity0%–90% RH (non-condensing)
Storage Humidity0%–90% RH (non-condensing)
Options
AI Feature41 classes in 15 major types
CamerasReal-time video for item-person association & lost item retrieval
UPS1.5 KVA, 15–20 mins backup
OEM BrandingMetal frame & interface branding
Packaging Information
Packing ListEnglish Manual ×1; Cable ×1; Tools ×1 set; Console Table ×1
Packaging MethodWooden Pallet
Packaging Dimensions2040mm × 1020mm × 1660mm
N.W.380KG
G.W.440KG
Regulatory Compliance
China StandardGB 12664-2024
International CertificationsCE, ROHS, FCC

XR3G-6550C Product Description

High-Performance 140kV Imaging Technology

The standout feature of the XR3G-6550C is its high-energy 140kV X-ray generator. While many scanners in this size class use lower-powered sources, VARITO has equipped this model with the energy required to achieve a staggering 40mm steel plate penetration.

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, can handle heavy loads with consistent, smooth movement.

4. Identify Complex IEDs: Detect thin wires and detonators even when buried under layers of dense materials.

VARITO XR3G 6550C Baggage Scanner
VARITO XR3G 6550C Baggage Scanner

Building a Unified Security

1. 100kg Load Capacity: The heavy-duty conveyor belt is designed to handle up to 100 kg, easily accommodating heavy backpacks and commercial courier bags.

2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.

3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.

4. Heavy-Duty Conveyor: Built to support a staggering 500kg distributed load, ensuring the motor handles heavy cargo without lagging.

We Provide Multiple Solutions

Can integrate a variety of access control equipments

VARITO XR3G 6550C Baggage Scanner
X-Ray Generator
X-Ray Generator
Detector Array
Detector Array
Conveyor Belt
Conveyor Belt
Radiation Shield
Radiation Shield
Scanning Tunnel
Scanning Tunnel
Image Processing
Image Processing
Operator Control Console
Operator Control Console

XR3G-6550C Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

XR3G 6550C Baggage Scanner – installation view
XR3G 6550C Baggage Scanner – product view

XR3G-6550C Details and Dimensions

All the details and dimensions can be customized according to your project site

XR3G 6550C Baggage Scanner front view
  • Screening Monitor
  • X-Ray Generator
  • Conveyor Belt
  • Full 304 stainless steel
XR3G 6550C Baggage Scanner dimensions

More About the XR3G 6550C Baggage Scanner

Smart Access Control Solution for Modern Security

VARITO XR3G-6550C X-Ray Baggage Scanner

In the fast-paced world of modern security, efficiency and clarity are the two pillars of success. The VARITO XR3G-6550C X-Ray Baggage Scanner is engineered for facilities that demand high-penetration imaging within a space-saving footprint. With its specialized 650mm x 500mm tunnel size, this model is the industry standard for scanning backpacks, handbags, and medium-sized parcels at corporate offices, hotel lobbies, and government checkpoints.

As a flagship product of the VARITO brand, the XR3G-6550C providing security managers with a reliable, authoritative tool to combat modern threats.

High-Performance 140kV Imaging Technology

The standout feature of the XR3G-6550C is its high-energy 140kV X-ray generator. While many scanners in this size class use lower-powered sources, VARITO has equipped this model with the energy required to achieve a staggering 40mm steel plate penetration.

This allows security operators to:

1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.

2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.

3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.

4. Identify Complex IEDs: Detect thin wires and detonators even when buried under layers of dense materials.

Heavy-Duty Design for High-Traffic Hubs

The VARITO XR3G-6550C is built to handle the physical demands of a busy checkpoint. Every component is optimized for durability and speed:

1. 200kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.

2. Optimal Tunnel Size: The 650mm x 500mm opening comfortably processes oversized backpacks, large check-in bags, and medium-sized boxes that standard scanners simply cannot accommodate.

3. Threat Image Projection (TIP): Maintains operator alertness by injecting virtual threat items into the workflow.

4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.

Integrating the VARITO Security Ecosystem

A high-quality scanner is most effective when it is part of a synchronized defense. The VARITO brand provides an authoritative, all-in-one ecosystem to secure your premises from every angle.

To create a 360-degree security strategy, we recommend pairing the XR3G-6550C with:

* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.

* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.

* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.

By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.

Key Technical Specifications

* Tunnel Size: 650(W) × 500(H) mm

* Penetration: 42mm Steel Plate (Elite Standard)

* Generator: 140kV (Oil-cooled for continuous use)

* Imaging: Dual-energy, 4-color material identification

* Safety: Multi-layer lead curtains and zero-leakage housing for absolute operator safety

Ideal Applications of Baggage Scanner

  • Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
  • Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
  • Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
  • Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.

Conclusion: Invest in Authoritative Security

The VARITO XR3G-6550C is a testament to what happens when power meets precision. Its ability to scan everyday items with the clarity of a high-energy industrial machine makes it an invaluable asset for any security-conscious organization. When you choose the VARITO brand, you are choosing a global leader in safety and technical innovation.

Frequently Asked Questions (FAQs)

1. Is 40mm steel penetration enough for high-security government zones? Absolutely. 40mm is an elite penetration standard for this tunnel size, allowing operators to see through almost all consumer luggage and most heavy-duty commercial containers.

2. Can the conveyor speed be slowed down for manual inspection? Yes. The 0.22 m/s speed is fully adjustable, allowing operators to slow down the belt for a more detailed look at suspicious items.

3. Is the XR3G-6550C safe for photographic film and laptops? Yes. The radiation dosage is strictly controlled and complies with international safety standards, making it 100% safe for high-speed photographic film (up to ISO 1600), pharmaceuticals, and sensitive electronic devices.

4. How does the 4-color imaging help identify threats? It acts as an immediate visual filter. If an operator sees an orange mass (organic) hidden inside a blue metallic box, they know to focus their attention on potential explosives or prohibited organic materials.

5. How much space is required for installation? With a tunnel size of 650x500mm, the machine is designed with a relatively small footprint, making it ideal for hotel lobbies, office receptions, and narrow security corridors.
