Automatic Boom Barrier Gate
Brand : VARITO
Model: VCB-DCN
Country of origin: Germany
  • Description

Product Introduction :

Automatic barriers are used to block pedestrian or vehicular access through a controlled point. They operate through
a variety of different technologies, such as pushbuttons, remote control, loop detectors, any third-party control device
and optoelectronic sensors.

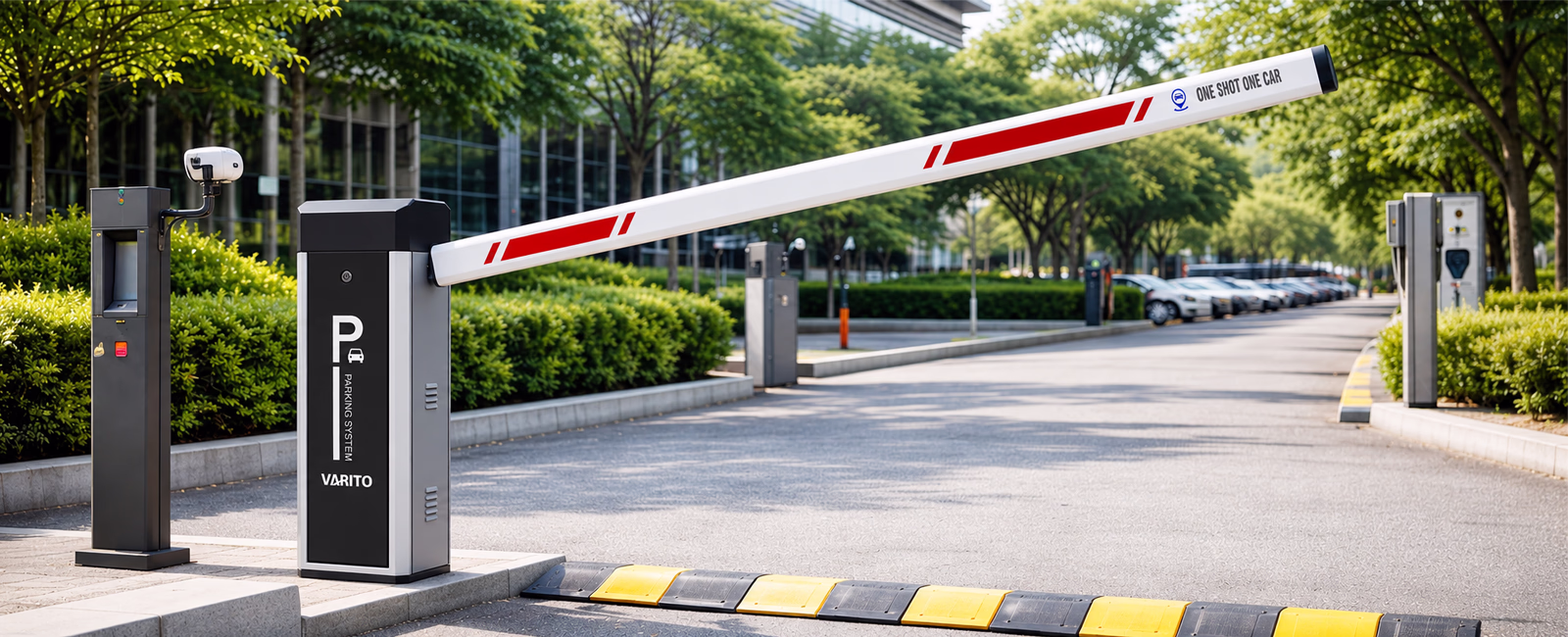

A boom barrier, also known as a boom gate, is a bar or pole pivoted to allow the boom to block vehicular or pedestrian
access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near vertical position.
Boom gates are often counterweighted, so the pole is easily tipped.

Quick Details :

Material : Aluminium
Open Time : 3s / 6s
Lever Length : 6m (adjustable)
Position : Vehicle Fence
Lever to Ground : 890mm
Upright Post : 1035mm
Remote Distance : within 30m
Parking Voltage : AC220V 10% 50Hz
Motor Watt : 60W
IP Rating : IP65
Warranty : 1 Year
Barrier Arm Type : Straight, Fencing, Folding
Function : Separation, Obstruction
Size : 355mmx245mmx1035mm

Another Features :

Direction is adjustable
Auto bounce back function : Built-in sensor can detect when the arm hits an obstacle
Intelligent limited sensor : The limited sensor can check the open & close position automatically
Position memory function : The motor can remember a limited position
Lower working temperature : No thermal protection even we don’t add a fan to cool the motor
Longer working life : It can open and close 3million times

Max Beam Length 4M 6M 4M
Opening/Close Time 4s 6s 6s
Framework Material 1.8mm Cold-roll sheet
Beam Aluminum alloy
Motor 65W to 140W second-stage brushless copper DC motor with variable speed
Mechanical Structure Left or Right
Input Interface Photo cell, loop detector, parking system
Input 12V relay signal or Pulse Wide>100MS
Shell Material A3 steel
Shell Thickness 2.0mm
Base Frame Cast Iron
Push Button Support
Remote Control Two button remote transmitter, Distance,30m
Control panel connector Traffic light connector, pressure wave connector, 485/422 connector.
Ingress Protection IP65 level
Housing color keeping 3-5 years
MCBF 5 million time
Weight 55 to 68KG
Dimension ~350 × 282 × 1000mm
Working Temperature -40°C to +85°C
Relative Humidity ≤95%
Power Supply AC220V/110V, 50/60Hz
Functions Remote control, Solid and endurable structure, strong bearing capacity.
Complete system 1 × DC Brushless Motor
1 × Control panel
1 × Aluminum Arm
2 × U Bracket for base mounting
4 × Raw loot screw
Optional Accessories Loop detector; IR photo cell

DIMENSION Measurements are in mm
