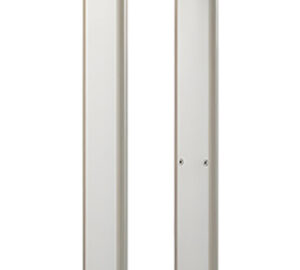

Walk Through Metal Detector

The high-performance security doors have the following advantages: high metal detection sensitivity, Strong
anti-interference ability, Multiple detection regions, each region can be set separately sensitivity, Self-diagnostic
program, power on self-test; Using high strength materials, can fire, corrosion, shock and so on, Background
environmental interference that can be monitored in real time.

In the material selection, appearance structure, software copyright and other obtained a number of patents
and copyright certificates.

Brand : VARITO
Model:VA800D

  • Description

Multiple Advanced Features And Functions:

1. Multi-defense area technology: 33 detection defense areas, the sensitivity of each detection defense area
can be adjusted arbitrarily (with adaptive adjustment technology).
2. Superior case protection technology: IP55 superior protection performance (optional).
3. Adaptive diagnosis system: System adaptive diagnosis and detection power at start-up.
4. Adaptive debugging system: Adaptive debugging detection standard when the system enters the debugging. 5. Start and stop technology: Infrared device has automatic start and stop technology.
6. Alarm function: Alarm light, alarm sound, arbitrary adjustment Settings.
7. Working frequency: The working frequency can be changed manually or automatically.
8. Detection technology: Beyond imagination, uniform detection technology, no blind area.
9. Professional detection procedures: 72 standard procedures for detection of different occasions are built
into the system
10. Working frequency band: Super wide 100 working frequency band.
11. Safety level: With 100 safety levels
12. Detection area sensitivity: The sensitivity of a single area can be up to 0-255 level.
13. Alarm mode: The system has a variety of alarm sound optional mode, suitable for different occasions.
14. Intelligent standby: The system has an intelligent standby function.
15. Detection ability: It can pass the detection of more than 30-50 people in one minute.

Technical Parameters

Product 33 Zones 7-inch touch screen
Vertical Dimension 2190 x 535 x 892mm
Vertical Channel Dimension 2030 x 716mm
Net weight 45KG
Gross weight 52KG
Operating Voltage AC90V~240V 50/60Hz
Power Dissipation 15W
Operating frequency range 1-100 Bands
Working Environmental Temperature -20ºC ~ 70ºC
Maximum Sensitivity >6g metal

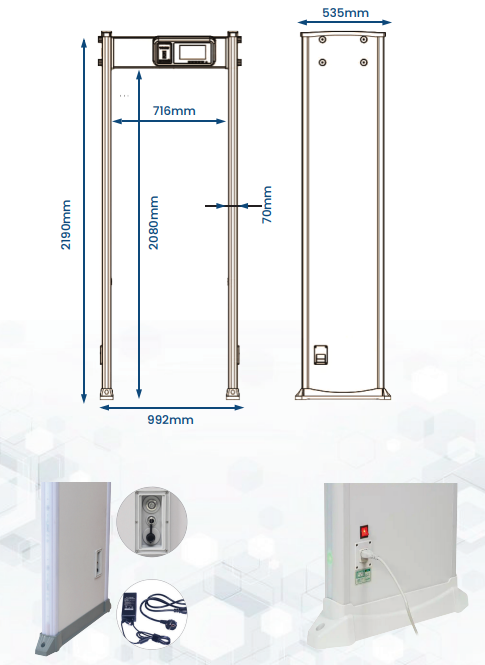

Dimension
