Many Features
Power-on self-test function
The only digital display self-test
function in the country. When the detection door is activated, the
system will automatically detect and diagnose each port (infrared,
LED light, location, etc.) without initial or periodic calibration, plug
and play. Easy to operate;
Digital tube display
Automatic counting of the number of people passing through and the number of alarms, the highest
display is 99999 times;
Adaptive debugging system
Adaptive debugging system: Adaptive debugging detection standard when the system enters the debugging.
Multi-location detection
18 detection zones to accurately determine the location of metal objects;
Double-column LED indicator
Double-column LED indicator, which is displayed with the human body contour to accurately locate prohibited items;
Sound and light alarm function
It can alarm multiple locations at the same time according to different positions of metal;
The overall sensitivity is adjustable
To meet the different testing requirements of users in different places;
Password protection function
Double password protection is adopted, only authorized personnel are allowed to operate, passwords can be modified as needed, and password loss recovery settings are provided, and security is higher;
Specification
| Product | : 18 Zones 7.0 Inch LCD Screen |
| Vertical Dimension | : 2200 x 900 x 810mm |
| Vertical Channel Dimension | : 2000 x 800 x 570mm |
| Net weight | : 35KG |
| Gross weight | : 45KG |
| Operating Voltage | : AC110~240V 50/60Hz |
| Power Consumption | : 12W |
| Operating frequency range | : 1–100 Bands |
| Working Environmental Temperature | : -20°C ~ 65°C |
| Maximum Sensitivity | : >6g metal |
Product Description
Functional Configuration

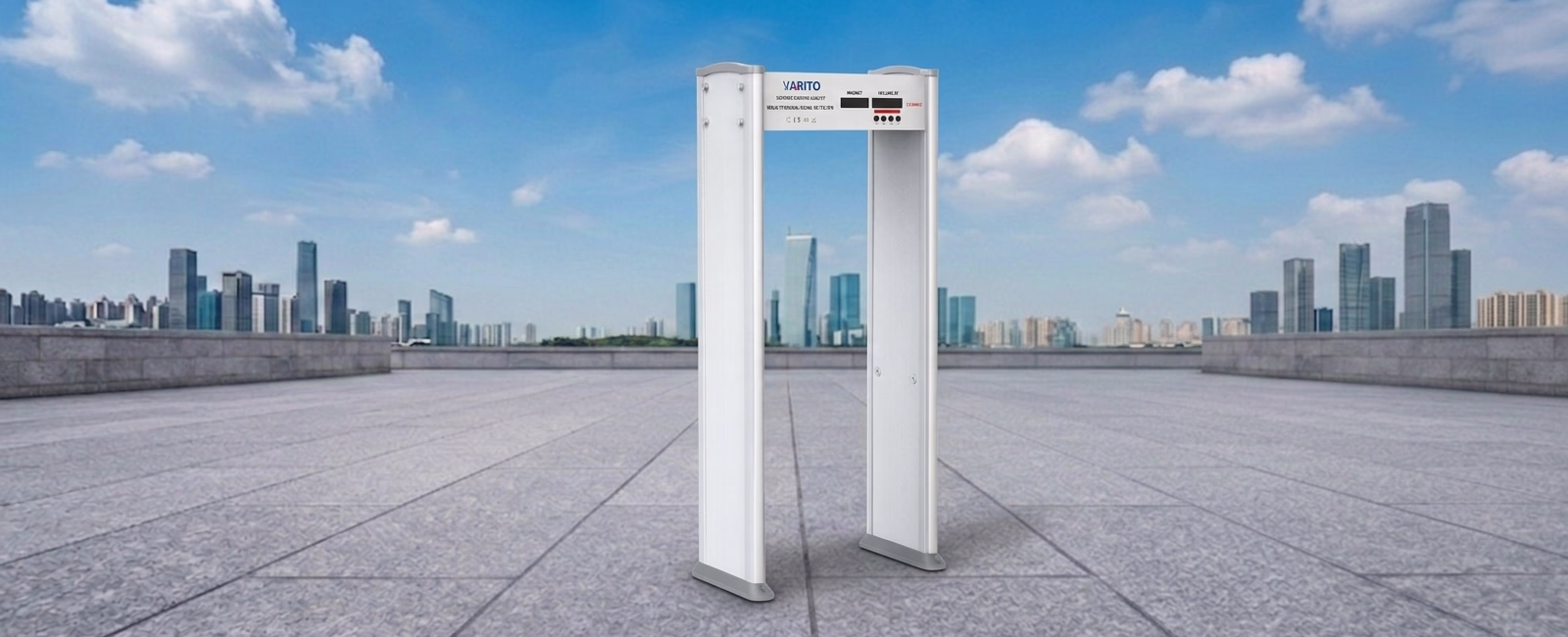

The VARITO ZA3000C 18 Zones Walk Through Metal Detector Door is a professional security screening solution for detecting metal and alloy objects hidden on the human body. It is suitable for busy entrance points where fast, accurate and non-contact inspection is required.
With 18 independent detection zones, the system can help security staff identify the approximate location of suspicious metal objects from head to toe. The double-column LED indicators on both sides of the door frame provide clear visual guidance, while sound and light alarms help operators respond quickly during screening.
ADVANCED FEATURES
The VARITO ZA3000C supports adjustable sensitivity for different security environments. Users can configure detection levels according to site requirements, helping reduce unnecessary alarms from small daily objects such as coins, keys or belts while maintaining reliable detection performance for prohibited metal items.
The system includes a 7-inch LCD display, digital control, people-counting and alarm-counting functions. Password protection helps prevent unauthorized setting changes, while the power-on self-test function checks key components automatically when the device starts. Its stable anti-interference design makes it suitable for public security areas, commercial buildings, schools, factories, exhibitions, prisons, transport terminals and event venues.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
