Many Features
Multi-defense area technology
Multi-defense area technology: 18 Detection Defense Areas, the sensitivity of each detection defense area
can be adjusted arbitrarily (with adaptive adjustment technology).
Adaptive diagnosis system
Adaptive diagnosis system: System adaptive diagnosis and detection power at start-up.
Adaptive debugging system
Adaptive debugging system: Adaptive debugging detection standard when the system enters the debugging.
Start and stop technology
Start and stop technology: Infrared device has automatic start and stop technology.
Alarm function
Alarm function: Alarm light, alarm sound, arbitrary adjustment Settings.
Working frequency
Working frequency: The working frequency can be changed manually or automatically.
Professional detection procedures
Professional detection procedures: 72 standard procedures for detection of different occasions are built
into the system (upgrade service is provided)
Detection area sensitivity
Detection area sensitivity: The sensitivity of a single area can be up to 0-100 level
Specification
| Technical Parameters | |
|---|---|
| Product | 18 Zones Digital |
| Vertical Dimension | 2210 × 840 × 490mm |
| Vertical Channel Dimension | 2000 × 700mm |
| Net Weight | 45KG |
| Gross Weight | 50KG |
| Power Supply | AC100V–240V 50/60Hz |
| Working Temperature | -20°C – 65°C |
| Maximum Sensitivity | ≥ 6g Metal |
| Technical Standards | |
| Electrical refer to EN60950 safety standard | Compliance |
| Radiation refer to EN50081-1 standard | Compliance |
| Anti-interference refer to EN50082-1 standard | Compliance |
| Implementation GB15210-2003 standard | Available |
| Functional Configuration | |
| Portable metal case design | Available |
| LED display panel | Available |
| Password protection | Available |
| Automatic counting | Available |
| Multi-zone detection | Available |
Product Description
High-performance walk through

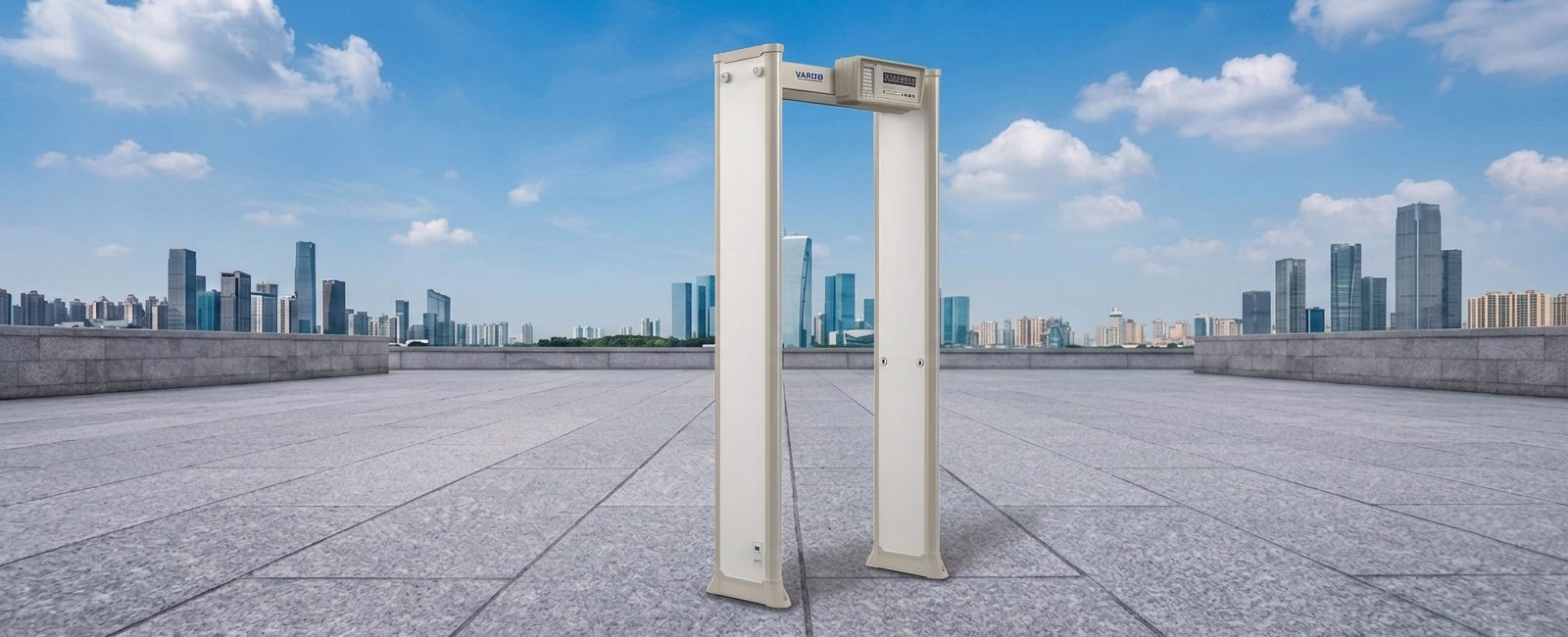

The VA800C high-performance walk through metal detector is supplied with a digital control box at 18 detection
zones, this advanced security solution provides utmost accuracy and efficiency.
The VA-800C have the following advantages: High Metal Detection Sensitivity, Strong anti-interference ability, Multiple detection regions, each region can set separately sensitivity, Self-diagnostic program, power on self-test; Using high strength materials, can fire, corrosion, shock and so on, Background environmental interference that can be monitored in real time.
Feature Highlights:
1. Safety level: With 100 safety levels.
2. Detection area sensitivity: The sensitivity of a single area can be up to 0-100 level.
3. Alarm mode: The system has a variety of alarm sound optional mode, suitable for different occasions.
4. Data statistics: The system has both PASS & return dual data records, like FAIL and return dual data records.
5. Query function: The system has real-time information query function.
6. Intelligent standby: The system has an intelligent standby function.
7. Detection ability: It can pass the detection of more than 30-60 people in one minute.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
