Features
Brand & Model

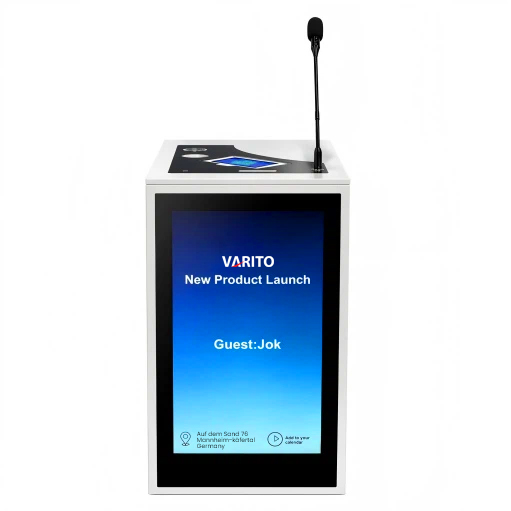

VARITO VA-DP12 (Low-Profile Cabinet Digital Podium Series)
Interactive Display
21.5-Inch Full HD (1920 × 1080) 10-Point Capacitive Touch Screen
Cabinet Design
Heavy-Duty Steel Enclosure with Lockable Slide-Open Top Cover
Display Mechanism
Manual / Motorized Screen Tilt Angle Adjustment for Comfortable Viewing
Embedded Computing
Modular Intel Core i5 / i7 OPS PC (8GB/16GB RAM, 256GB/512GB SSD)
Microphone System
Professional Cardioid Gooseneck Condenser Mic with XLR Shock Mount
Equipment Storage
Spacious Lockable Lower Cabinet with 19-Inch Standard Rack Space
Warranty & Service
1 (One) Year Comprehensive Hardware & Component Warranty
Specification
| General & Structural Architecture | |
|---|---|
| Brand Name | VARITO |
| Model Number | VA-DP12 |
| Device Category | Low-Profile Cabinet Type Smart Interactive Digital Podium / Rostrum |
| Body Construction | High-Grade Cold-Rolled Carbon Steel (1.5mm – 2.0mm) & Aviation Aluminum Trims |
| Surface Finish | Electrostatic Anti-Corrosion Powder Coating with Brushed Metallic Trim Accents |
| Desktop Protection | Smooth Sliding Lockable Desktop Cover (Safeguards Display and Controls) |
| Internal Storage | Lockable Lower Cabinet with Standard 19-Inch Equipment Rack Rails & Shelves |
| Overall Dimensions (W × D × H) | Approx. 750 mm × 650 mm × 1050 mm – 1100 mm |
| Mobility & Base | 4 Heavy-Duty Concealed Omnidirectional Castor Wheels with Dual Foot Brakes |
| Net Weight | Approx. 65 kg – 75 kg (Rigid Anti-Vibration Stationary Footprint) |
| Display, Touch & Optical Performance | |
| Main Display Screen Size | 21.5-Inch IPS LED Backlit Interactive Touch Display |
| Native Resolution | Full HD 1080p (1920 × 1080 Pixels, 16:9 Aspect Ratio) |
| Touch Technology | Projected Capacitive (PCAP) 10-Point Simultaneous Touch |
| Writing / Input Support | High-Precision Capacitive Stylus Pen or Direct Finger Touch |
| Screen Tilt Angle | Adjustable Tilt Elevation (0° to 45° Angle for Writing and Presentation Ease) |
| Display Brightness | 300 cd/m² Anti-Glare (AG) Optical Surface |
| Contrast Ratio | 1000:1 Static Contrast Ratio |
| Viewing Angle | 178° Horizontal / 178° Vertical Ultra-Wide Viewing Angle |
| Surface Glass Hardness | Mohs Level 7 Anti-Scratch, Anti-Fingerprint Tempered Safety Glass |
| Touch Response Speed | ≤ 5 ms Ultra-Fast Handwriting and Annotation Response |
| Computing, Audio & System Integration | |
| Embedded PC Module (OPS) | Standard Modular Intel Core i5 / i7 High-Performance Processor |
| System Memory & Storage | 8 GB / 16 GB DDR4 RAM | 256 GB / 512 GB M.2 NVMe High-Speed SSD |
| Operating System | Windows 10 / 11 Pro (Compatible with Ubuntu Linux & Android Dual-Boot) |
| Microphone Setup | 1 × Professional Flexible Gooseneck Condenser Microphone with XLR Shock Mount |
| Audio Processing | Integrated Pre-Amplifier, Noise Gate & Audio Feedback Filter |
| Central AV Controller | Integrated Control Panel for Projector/LED Screen Power, Audio Volume & Input Mute |
| Desktop Connectivity Ports | Pop-Up Socket Box: HDMI In/Out, Type-C, USB 3.0 × 2, RJ45 LAN, 3.5mm Audio In/Out, Universal AC Socket |
| Wireless Screen Sharing | Supports Wireless Cast from Laptops, Tablets, and Smartphones (iOS, Android, Windows, Mac) |
| Electrical, Power & Warranty | |
| Power Supply Input | AC 100V – 240V, 50/60 Hz Universal Mains Supply |
| Power Consumption | Operating: ≤ 180W | Standby Mode: ≤ 5W |
| Internal Cable Management | Concealed Internal Wiring Ducts with Grounding and Anti-Interference Shielding |
| Operating Temperature & Humidity | 0°C to +45°C | 10% to 80% Non-Condensing Relative Humidity |
| Warranty Coverage | 1 (One) Year Comprehensive Service Warranty with Technical Support |
| Delivery & Commissioning | Complete Supply, Auditorium Placement & AV Commissioning Across Bangladesh |
Product Description
Low-Profile Comfortable Body Design
The proprietary low-profile cabinet body is close to common sofa height, making it suitable for reception areas, lounge-style meeting rooms, exhibition halls and small speaking spaces. Unlike traditional floor podiums, this compact low-profile podium is ideal for short speeches and casual interactions.

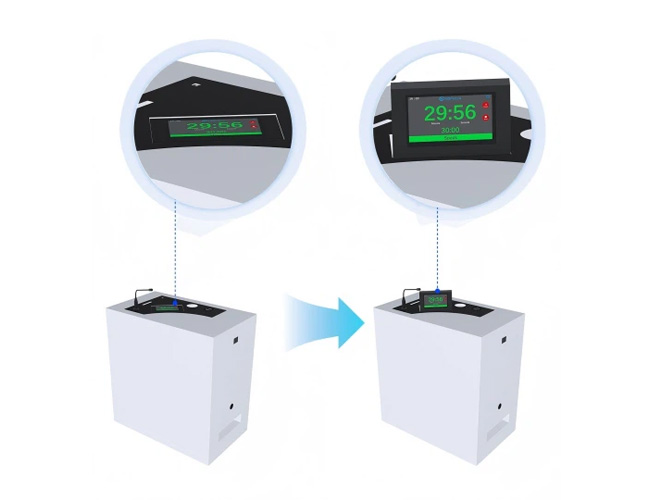

The built-in 7-inch capacitive touch timer uses a foldable hidden design. Speakers can unfold it for countdown reminders and timing settings during speeches, then fold it away when not in use to keep the desktop area cleaner.

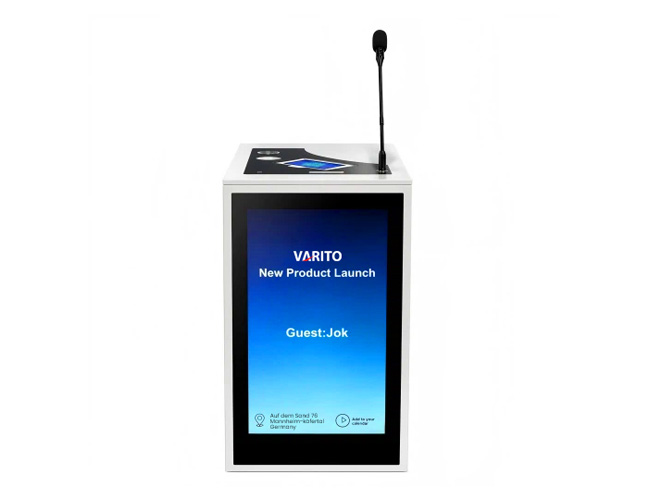

The front 32-inch TFT LED display features 1920 × 1080 Full HD resolution, 350 cd/m² brightness, 178° wide viewing angle and 3000:1 contrast ratio.

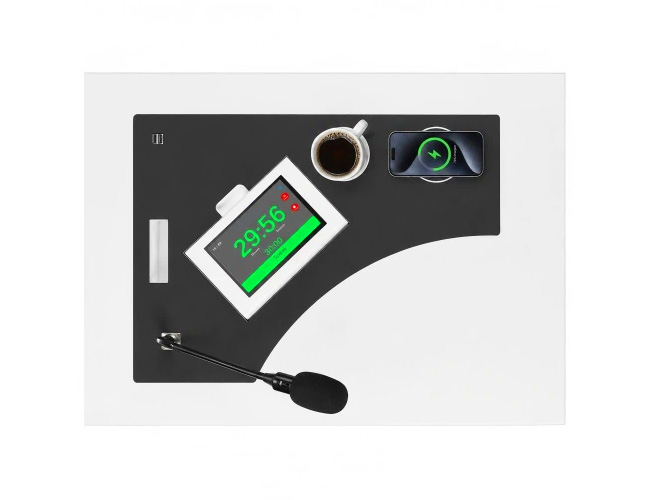

Practical Top Functional Layout
The top operation area integrates a gooseneck microphone, foldable touch timer, wireless charging area, and a cup holder. The layout is designed for short speeches, reception introductions and mini presentations, keeping daily essentials within easy reach.
A gooseneck microphone is integrated for clear voice pickup during brief speeches and presentations. According to the venue size, the podium can also be configured with a matching amplifier and a speaker system for small-range audio coverage.
External connection ports are arranged at the rear of the cabinet, including a power switch, power socket, a network port, HDMI output, audio output and Wi-Fi antenna.
We Provide Multiple Solutions
Rear Interface and Wiring Layout, Foldable 7-Inch Touch Timer
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
VARITO VA-DP42 Smart Digital Podium for Lecture Halls & Conference Rooms
VARITO VA-DP22 T-Shaped Digital Podium
The VARITO VA-DP22 T-Shaped Digital Podium is an interactive rostrum engineered by VARITO for smart classrooms, university lecture theaters, corporate training suites, medical seminar rooms, and government conference halls across Bangladesh. Designed with an ergonomic T-shaped profile manufactured from aviation-grade aluminum alloy and cold-rolled carbon steel, the VA-DP22 provides a compact yet authoritative presentation presence on stage. At the center of the podium desktop is a 21.5-inch Full HD (1920 × 1080) interactive touch display equipped with 10-point projected capacitive (PCAP) touch technology. This display allows teachers, professors, and keynote presenters to annotate PowerPoint slides, navigate digital course materials, draw on interactive whiteboards, and control presentation software with precision. An integrated motorized linear lifting actuator enables speakers to smoothly adjust the display tilt angle from 0° up to 60° using touch-sensitive desktop buttons, providing optimal visibility whether the speaker is presenting standing or seated. The VA-DP22 houses a modular Intel Core i5/i7 OPS mini PC with high-speed NVMe SSD storage and Windows 10/11 Pro, allowing users to run digital presentations without connecting an external computer. For clear audio delivery, the podium includes a professional cardioid gooseneck condenser microphone mounted on an anti-vibration XLR base with built-in feedback filtering. A built-in central AV control system and a hydraulic pop-up desktop connectivity box provide HDMI, Type-C, USB 3.0, and wireless screen-sharing ports, allowing presenters to easily connect external laptops, document visualizers, or stage displays.
Can the podium display be mirrored to auditorium projectors or interactive flat panels?
Yes, the integrated central AV switcher includes HDMI video outputs that mirror the 21.5-inch touch screen and live on-screen annotations directly onto auditorium projectors, stage LED walls, or large interactive flat panels with zero transmission delay.
