Digital Podium

VARITO VA-DP42 Arc-Shaped Digital Podium

Model: VA-DP42 Brand: VARITO

The VARITO VA-DP42 Digital Podium is an arc-shaped smart interactive digital podium designed for modern university lecture halls, executive corporate boardrooms.

Product Details

DesignProprietary Arc-Shaped
Signage Screen43" 4K UHD
Control Screen21.5" BOE TFT-LCD
Touch Type10 Points Capacitive Touch
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

VA-DP42 Key Features

Key highlights of the VARITO VA-DP42 Arc-Shaped Digital Podium at a glance.

Brand & Model

VARITO VA-DP42 (Arc-Shaped Smart Digital Podium Series)

Interactive Display

43-Inch 4K UHD (3840 × 2160) 10-Point Capacitive Touch Screen

Chassis Architecture

Aerodynamic Arc-Shaped Heavy-Duty Aluminum Alloy & Steel Body

Motorized Adjustment

Electric Motorized Height Lifting & Screen Tilt Elevation

Embedded Computing

Modular Intel Core i5 / i7 OPS Mini PC (8GB/16GB RAM, 256GB/512GB SSD)

Audio Architecture

Dual Professional Gooseneck Condenser Mics + Wireless Microphone

Control & Connectivity

Integrated Central AV Control System with HDMI, USB 3.0, Type-C & LAN

Warranty & Support

1 (One) Year Comprehensive Hardware & Component Warranty

VA-DP42 Specifications

General & Structural Architecture
Brand NameVARITO
Model NumberVA-DP42
Device CategoryInteractive Smart Multimedia Arc-Shaped Digital Podium / Rostrum
Body ConstructionAerodynamic Curved Arc Structure, Aviation Aluminum Alloy & Solid Cold-Rolled Steel
Surface FinishAnodized Metallic Brushed Finish with High-End Anti-Scratch Powder Coating
Height Adjustment TypeMotorized Linear Electric Height Lifting Column with Electronic Push-Button Control
Overall Dimensions (W × D × H)Approx. 1100 mm × 750 mm × 1000 mm – 1250 mm (Adjustable Height Range)
Net WeightApprox. 75 kg – 85 kg (Stable Heavy Base with Concealed Locking Castor Wheels)
Display, Touch & Optical Performance
Main Display Screen Size43-Inch Ultra-Wide IPS LED Backlit Interactive Panel
Native Resolution4K Ultra HD (3840 × 2160 Pixels)
Touch TechnologyProjected Capacitive (PCAP) 10-Point Simultaneous Touch with Stylus / Finger Support
Display Brightness350 cd/m² to 400 cd/m² High-Luminance Anti-Glare Surface
Contrast Ratio1200:1 Dynamic Contrast Ratio
Viewing Angle178° Horizontal / 178° Vertical Ultra-Wide Viewing Angle
Surface Hardness7H Hardness Tempered Optical Safety Glass (Anti-Fingerprint, Anti-Reflective)
Touch Response Time≤ 5 ms Ultra-Fast Handwriting Annotation Response
Computing, Audio & System Integration
Built-in PC Module (OPS)Standard Modular Intel Core i5 / i7 High-Performance Processor
System Memory & Storage8 GB / 16 GB DDR4 RAM | 256 GB / 512 GB M.2 NVMe High-Speed SSD
Operating SystemWindows 10 / 11 Pro Pre-installed (Compatible with Ubuntu Linux & Android Dual OS)
Microphone Configuration2 × Professional Gooseneck Condenser Microphones with XLR Bases + 1 × UHF Wireless Handheld Mic
Audio ProcessingIntegrated DSP Audio Feedback Suppressor, Equalizer & Digital Pre-Amplifier
Central AV ControllerIntegrated Control Panel for Projector/LED Screen Power, Motorized Screen Lift & Audio Mute
Desktop Connectivity PortsPop-Up Socket Box: HDMI In/Out, USB 3.0 × 4, Type-C, RJ45 LAN, 3.5mm Audio In/Out, Universal AC Socket
Wireless Screen SharingSupports Wireless Cast from Laptops, Tablets, and Smartphones (iOS, Android, Windows, Mac)
Electrical, Power & Warranty
Power Supply InputAC 100V – 240V, 50/60 Hz Universal Mains Supply
Power ConsumptionOperating: ≤ 250W | Standby Mode: ≤ 5W
Internal Cabling ManagementConcealed Internal Drag-Chain Wire Trunking with Anti-Interference Shielding
Operating Temperature & Humidity0°C to +45°C | 10% to 80% Non-Condensing Relative Humidity
Warranty Coverage1 (One) Year Comprehensive Service Warranty with Technical Support
Delivery & CommissioningComplete Supply, Stage Setup & AV Auditorium Integration Across Germany & Europe

VA-DP42 Product Description

Proprietary Arc-Shaped Design

The streamlined arc-shaped structure creates a premium presentation appearance for lecture halls, auditoriums and executive conference rooms. The modern industrial design helps the podium match high-end campus and conference environments.

The 21.5-inch BOE TFT-LCD control screen supports automatic lifting and 15° tilt adjustment, allowing speakers to adjust the viewing angle for comfortable operation.

The 10-point capacitive touch panel supports finger touch and compatible stylus input, with a tested lifespan of over 80 million touch operations.

VARITO VA-DP42 Arc-Shaped Digital Podium
VARITO VA-DP42 Arc-Shaped Digital Podium

43-Inch Audience-Facing Signage Screen

The 43-inch 16:9 audience-facing display features a 178° ultra-wide viewing angle and 3000:1 contrast ratio, helping audiences clearly view presentation information, welcome messages or event content.

Motorized Height Lifting, Built-in electric motorized actuator allows smooth height and tilt adjustments with push-button control for ergonomic presentation posture.

Built with an Android-based signage system and CMS software, it supports remote content publishing, scheduled playback and centralized content management.

We Provide Multiple Solutions

Rich Reserved I/O Interfaces, Built-in Audio Amplifier System, Dual Gooseneck Microphones

Digital Podium
Thoughtful-Panel
Thoughtful-Panel
Reliable-Structure
Reliable-Structure
Multi-Touch
Multi-Touch
Dual-OS
Dual-OS
Easy-Connection
Easy-Connection
Lockable-Wheels
Lockable-Wheels
BOE-Screen
BOE-Screen

VA-DP42 Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

VA-DP42 Arc-Shaped Digital Podium – installation view

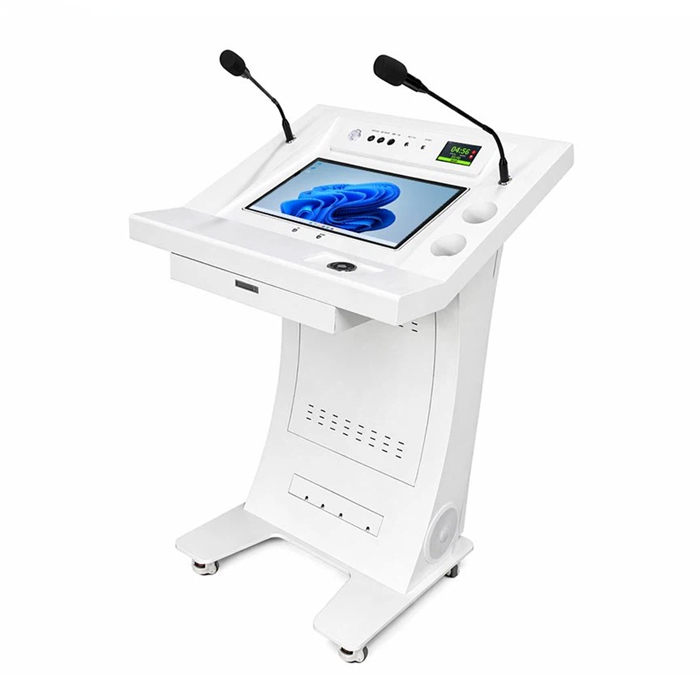

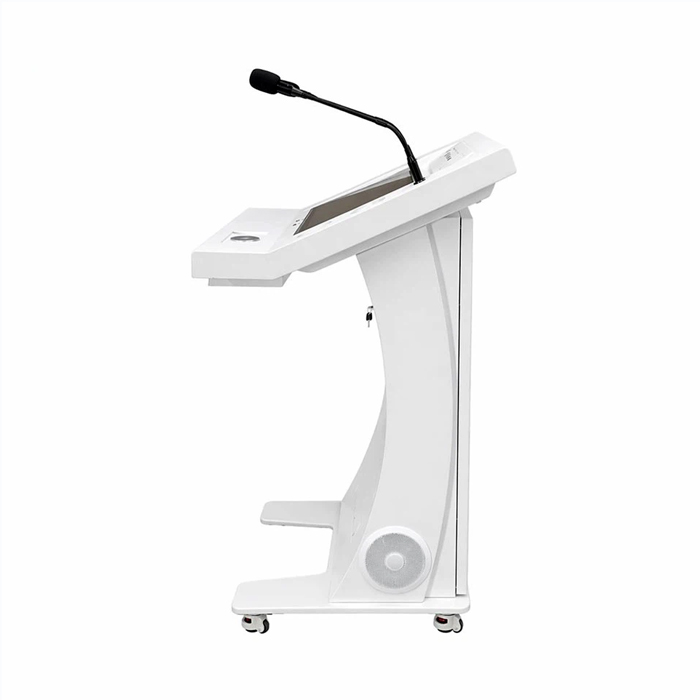

VA-DP42 Arc-Shaped Digital Podium – product view

VA-DP42 Details and Dimensions

All the details and dimensions can be customized according to your project site

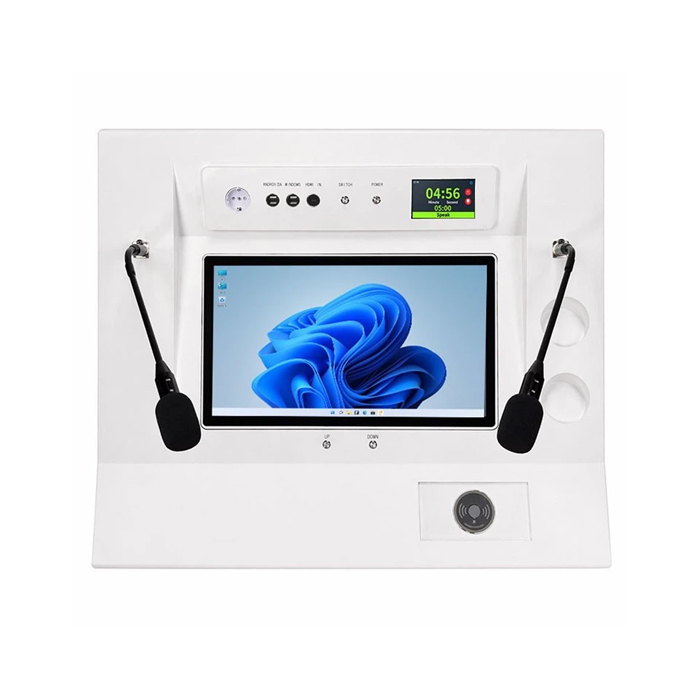

VA-DP42 Arc-Shaped Digital Podium front view
  • Dual Microphones
  • Touch Control
  • Arc-Shaped
  • Audio Amplifier

More About the VA-DP42 Arc-Shaped Digital Podium

VARITO VA-DP42 Smart Digital Podium for Lecture Halls & Conference Rooms

The VARITO VA-DP42 Digital Podium is an arc-shaped smart interactive digital podium designed for modern university lecture halls, executive corporate boardrooms, government auditoriums, international conference centers, and training institutes across Germany and Europe. Crafted from an aluminum alloy and steel chassis featuring an aerodynamic curved arc body, the VA-DP42 integrates an ultra-large 43-inch 4K UHD 10-point capacitive touch interactive display with motorized electronic height and tilt adjustment. Equipped with a high-performance Intel Core i5/i7 OPS computing module, dual professional gooseneck condenser microphones, built-in wireless presentation casting, central AV controller switching, and multi-format audio-visual connectivity interfaces, it simplifies lecture and speech delivery.

The VARITO VA-DP42 Arc-Shaped Digital Podium

The VARITO VA-DP42 Arc-Shaped Digital Podium is an interactive rostrum engineered by VARITO for university lecture halls, executive corporate boardrooms, parliament chambers, government auditoriums, medical symposiums, and training centers across Germany and Europe. Built with an aerodynamic curved arc body crafted from heavy-gauge aluminum alloy and cold-rolled steel, the VA-DP42 provides an elegant, clutter-free focal point on any presentation stage. At the core of the podium is a 43-inch 4K UHD (3840 × 2160) interactive display featuring 10-point projected capacitive (PCAP) touch technology. This display allows presenters, professors, and keynote speakers to annotate slides, play video demonstrations, write digital whiteboard notes, and control multi-window applications with responsive touch response. The podium incorporates an electric motorized linear lifting system that enables speakers to adjust the overall podium height and screen angle via desktop touch buttons, ensuring ergonomic comfort for speakers of any height whether standing or seated.
