Digital Podium

VARITO VA-DP22 T-Shaped Digital Podium

Model: VA-DP22 Brand: VARITO

The VARITO VA-DP22 Digital Podium is a professional T-shaped interactive multimedia digital podium rostrum engineered for university smart classrooms.

Product Details

DesignT-Shaped
Screen21.5" TFT-LCD
Display Area477*268mm
Resolution1920*1080
  • Expert project consultation
  • Datasheets & technical support
  • Supply for Germany & the EU

VA-DP22 Key Features

Key highlights of the VARITO VA-DP22 T-Shaped Digital Podium at a glance.

Brand & Model

VARITO VA-DP22 (T-Shaped Smart Digital Podium Series)

Touch Display

21.5-Inch Full HD (1920 × 1080) 10-Point Capacitive Interactive Screen

Chassis Architecture

Ergonomic T-Shaped Aviation Aluminum Alloy & Solid Steel Body

Motorized Elevation

Electric Motorized Screen Tilt Angle Adjustment (0° to 60°)

Embedded Computing

Modular Intel Core i5 / i7 OPS Mini PC (8GB/16GB RAM, 256GB/512GB SSD)

Microphone System

Professional Cardioid Gooseneck Condenser Mic with XLR Base

Desktop Connectivity

Pop-Up Box with HDMI, Type-C, USB 3.0, Audio, LAN & Power Socket

Warranty & Service

1 (One) Year Comprehensive Hardware & Component Warranty

VA-DP22 Specifications

General & Structural Architecture
Brand NameVARITO
Model NumberVA-DP22
Device CategoryInteractive Smart Multimedia T-Shaped Digital Podium / Rostrum
Chassis ConstructionAviation Aluminum Alloy Frame + Cold-Rolled Carbon Steel Body
Surface FinishAnodized Metallic Brushed Treatment with Anti-Scratch Powder Coating
Structure ProfileErgonomic T-Shaped Column Pedestal with Concealed Cable Management
Overall Dimensions (W × D × H)Approx. 770 mm × 640 mm × 1050 mm – 1150 mm
Net WeightApprox. 55 kg – 65 kg (Weighted Anti-Tip Base with Concealed Castor Wheels)
Display, Touch & Optical Performance
Touch Screen Size21.5-Inch IPS LED Backlit Interactive Display Panel
Native ResolutionFull HD 1080p (1920 × 1080 Pixels, 16:9 Aspect Ratio)
Touch TechnologyProjected Capacitive (PCAP) 10-Point Simultaneous Touch
Touch Input MethodsCapacitive Stylus Pen or Direct Finger Touch
Screen Tilt ElevationMotorized Electric Tilt Adjustment from 0° (Flat) to 60° (Angled)
Display Brightness300 cd/m² Anti-Glare (AG) Optical Surface
Contrast Ratio1000:1 Static Contrast Ratio
Viewing Angle178° Horizontal / 178° Vertical Ultra-Wide Viewing Angle
Surface Protection4mm Mohs Level 7 High-Impact Tempered Optical Safety Glass
Response Time≤ 5 ms Ultra-Fast Writing & Annotation Speed
Computing, Audio & System Integration
Built-in PC Module (OPS)Modular Intel Core i5 / i7 High-Performance Computing Core
RAM & Storage8 GB / 16 GB DDR4 RAM | 256 GB / 512 GB M.2 NVMe High-Speed SSD
Operating SystemWindows 10 / 11 Pro (Compatible with Ubuntu Linux & Android Dual-Boot)
Microphone Setup1 × Professional Flexible Gooseneck Condenser Microphone (XLR Shock Mount)
Audio ProcessingIntegrated Pre-Amplifier, Noise Gate & Audio Feedback Filter
Central Control PanelIntegrated Control Panel for Display Power, Screen Tilt, Projector & Volume
Desktop Interface BoxHydraulic Pop-Up Module: HDMI In/Out, Type-C, USB 3.0 × 2, RJ45 LAN, 3.5mm Audio, AC Power
Wireless Screen SharingSupports Wireless Cast from Laptops, Tablets, and Smartphones (iOS, Android, Windows, macOS)
Electrical, Power & Warranty
Power InputAC 100V – 240V, 50/60 Hz Universal Mains Supply
Power ConsumptionOperating: ≤ 150W | Standby Mode: ≤ 3W
Internal CablingConcealed Drag-Chain Internal Wire Ducts with EMI Shielding
Operating EnvironmentTemperature: 0°C to +45°C | Humidity: 10% to 80% Non-Condensing
Warranty Coverage1 (One) Year Comprehensive Service Warranty with Component Support
Delivery & InstallationComplete Supply, Auditorium Placement & AV Commissioning Across Germany & Europe

VA-DP22 Product Description

T-Shaped Digital Podium

The best choice for standard classrooms, training rooms, and large-scale school bulk orders. This podium offers a perfect balance of essential teaching tools, intuitive operation, and high cost-efficiency, making it ideal for campus-wide deployment.

The main control screen uses a 21.5-inch BOE TFT-LCD panel with LED backlight, 16:9 aspect ratio, 1920 × 1080 Full HD resolution and 350 cd/m² brightness for indoor classroom use./p

The 10-point capacitive touch panel supports both finger and stylus input, enabling intuitive control of presentation software and seamless interaction during classroom instruction./p

VARITO VA-DP22 T-Shaped Digital Podium
VARITO VA-DP22 T-Shaped Digital Podium

4.3-Inch Independent Touch Timer

The independent 4.3-inch touch timer is designed for classroom timing management. Teachers can manage class durations, activity countdowns, and speech reminders through an intuitive touch interface. Because the timer operates independently, it does not interfere with the primary display during instruction.

The podium can be configured for regular classroom use with a gooseneck microphone and built-in speakers. Reserved audio output for larger classrooms or rooms with existing sound reinforcement equipment connects to external amplifiers or wall-mounted speakers.

The desktop space can be furnished with a stylus slot and a tiny accessory area for mobile phones, remote controls or teaching materials. The structure is created for teachers' everyday standing teaching routines, and help teachers to have commonly used objects at hand.

We Provide Multiple Solutions

Teaching Tools Desktop Layout, Classroom Mobility and Locking Casters

Digital Podium
BOE-Screen
BOE-Screen
Dual-OS
Dual-OS
Easy-Connection
Easy-Connection
Lockable-Wheels
Lockable-Wheels
Multi-Touch
Multi-Touch
Reliable-Structure
Reliable-Structure
Thoughtful-Control
Thoughtful-Control

VA-DP22 Installation View

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

VA-DP22 T-Shaped Digital Podium – installation view

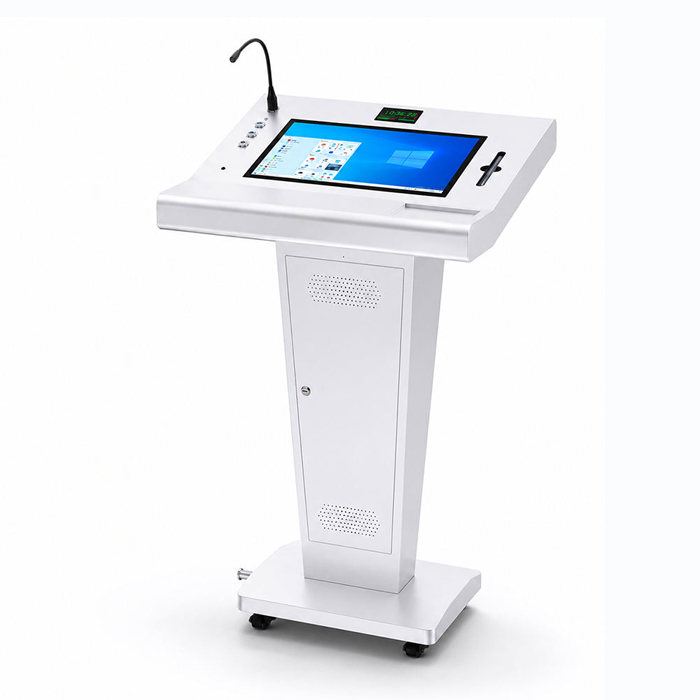

VA-DP22 T-Shaped Digital Podium – product view

VA-DP22 Details and Dimensions

All the details and dimensions can be customized according to your project site

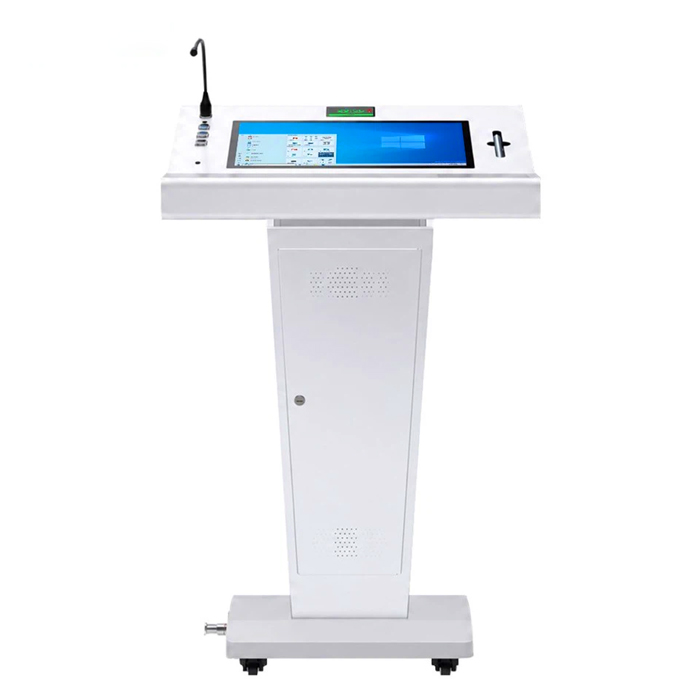

VA-DP22 T-Shaped Digital Podium front view

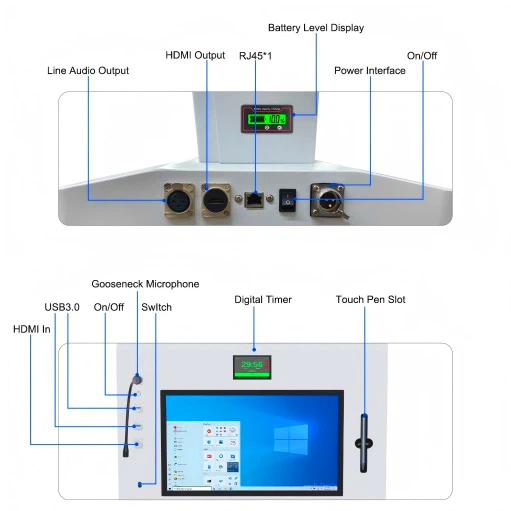

  • Digital Timer
  • Instigated controller
  • Rear side ports
  • Locking Casters
VA-DP22 T-Shaped Digital Podium dimensions

More About the VA-DP22 T-Shaped Digital Podium

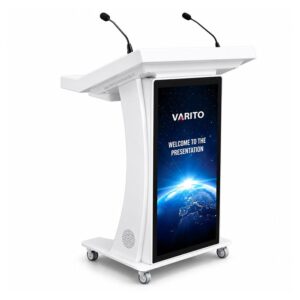

VARITO VA-DP42 Smart Digital Podium for Lecture Halls & Conference Rooms

T-Shaped Podium Ideal for Classroom Deployment

Most standard classrooms and vocational training rooms do not need overdesigned, premium presentation equipment built for auditoriums or formal conferences. Teachers and school IT teams simply need intuitive, durable, and easy-to-maintain podium hardware that supports daily coursework. Ultra-sensitive 21.5-inch 10-point capacitive touch screen, supporting stylus and finger annotation for flexible classroom interaction. Native Windows OS compatibility, fully adaptable to mainstream teaching software, office tools, and campus management systems. Independent dual-screen setup with a dedicated 4.3-inch timing panel to optimize classroom rhythm management. Comprehensive classroom-focused AV connectivity that supports everyday classroom device integration. Simplified functional configuration with zero redundant features, delivering outstanding cost performance for government tenders and bulk school orders.
