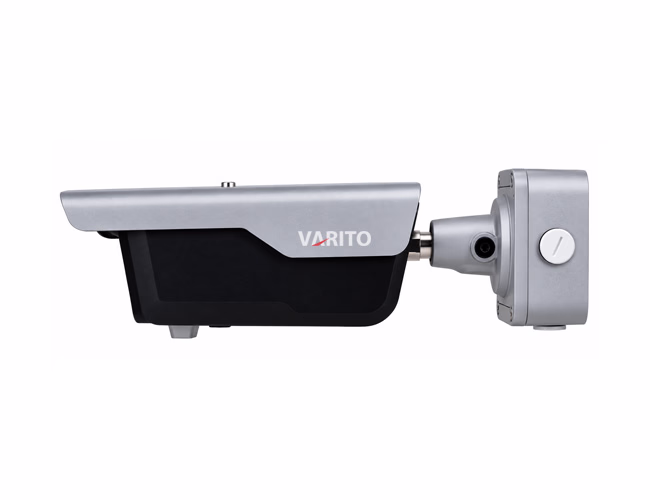

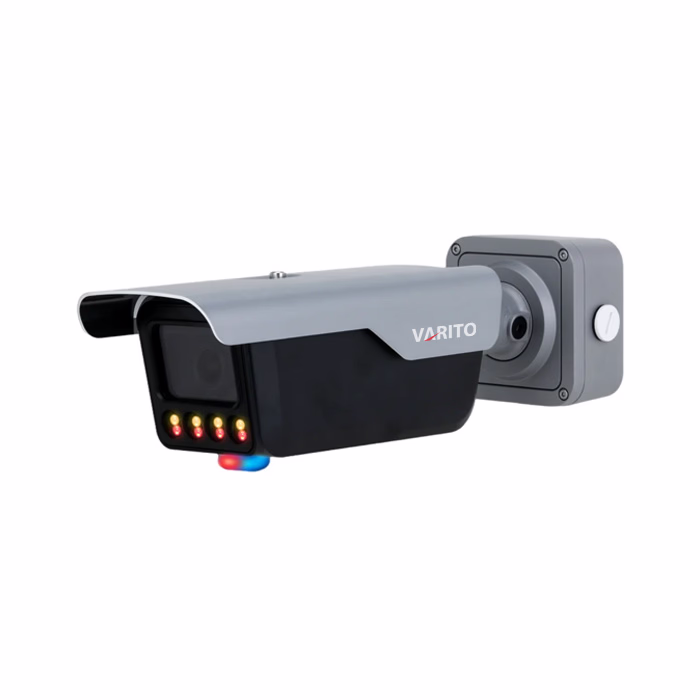

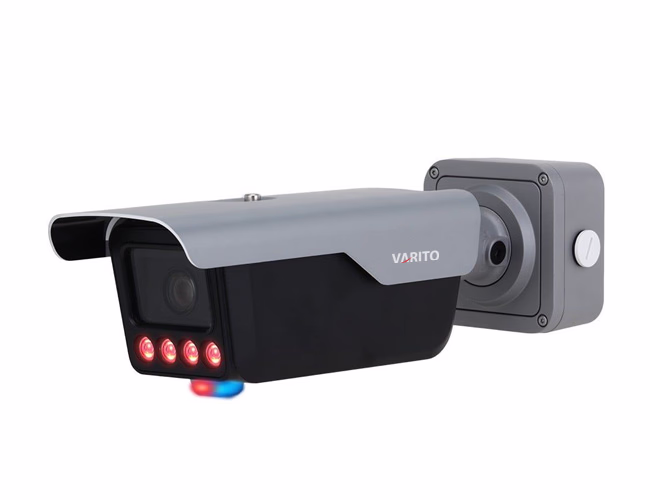

VARITO ITC413-PW4D-IZ1 4MP ANPR Camera

Managing vehicle access control, modern parking automation, and high-security checkpoints requires fast, reliable, and razor-sharp identification. The VARITO ITC413-PW4D-IZ1 4MP ANPR Camera delivers intelligent optical surveillance powered by German design standards, ensuring high-accuracy vehicle plate recognition even in difficult illumination and weather conditions.

Product Details:

Brand:	VARITO
Model	ITC413-PW4D-IZ1
Brand Origin:	Germany
Sensor:	1/1.8″ CMOS
Lens Type:	Motorized Vari-focal
Adapt to vehicle speed :	≤35km/h
Recognition distance	3-10meters

Request a Quote

Many Features

Application

4MP High-Resolution Imaging

Pots

Intelligent ANPR Recognition

Hardware configurations

2.7–12 mm Motorized Vari-Focal Lens

Operating temperature

Smart IR Night Vision

Specification

Camera

Image Sensor

1/1.8″ CMOS

Image Resolution

2688 × 1520

Electronic Shutter Speed

Auto/Manual 1/25 s–1/100,000 s

Max. Detection Speed

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 80 km/h
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 120 km/h

Min. Illumination

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:
0.0004 Lux@F1.4 (Color, 30 IRE); 0.0001 Lux@F1.4 (B/W, 30 IRE); 0 Lux (Illuminator on)

DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
0.001 Lux@F1.6 (Color, 30 IRE); 0.0002 Lux@F1.6 (B/W, 30 IRE); 0 Lux (Illuminator on)

ROM / RAM

ROM: 4 GB / RAM: 1 GB

S/N Ratio

>56 dB

Scanning System

Progressive scanning

Lens

Focal Length

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 2.7 mm–12 mm
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 8 mm–32 mm

Field of View

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:
H: 92° (W)—46.1° (T) | V: 49° (W)—26.0° (T) | D: 109° (W)—52.8° (T)

DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
H: 39.9° (W)—15.1° (T) | V: 21.8° (W)—8.5° (T) | D: 46.6° (W)—17.4° (T)

Focus / Iris Control

Focus: Auto, area focus, manual
Iris: DC-Iris (Z1/IZ1), P-Iris (Z3/IZ3)

Lens Type & Max. Aperture

Motorized Vari-focal (1 lens) | Max. Aperture: F1.4 (Z1/IZ1), F1.6 (Z3/IZ3)

DORI Distance

Configuration	Detect	Observe	Recognize	Identify
W (Z1/IZ1)	60.4 m	24.2 m	12.1 m	6.0 m
T (Z1/IZ1)	128.7 m	51.5 m	25.7 m	12.9 m
W (Z3/IZ3)	160.0 m	64.0 m	32.0 m	16.0 m
T (Z3/IZ3)	406.9 m	162.8 m	81.4 m	40.7 m

Illuminator

Illuminator Number & Type

4 Illuminators | Auto/Manual Control
IZ1/IZ3: IR (850 nm) | Z1/Z3: Dual Illuminators (730 nm IR/warm light)

Illumination Distance

Z1/IZ1: ANPR: 10 m (32.81 ft), Video: 30 m (98.43 ft)
Z3/IZ3: ANPR: 30 m (98.43 ft), Video: 60 m (196.85 ft)

Smart Illumination

Automatically adjusts light intensity according to environmental brightness. Devices with warm light automatically adjust based on the time.

Video & Audio

Video Resolution

Main stream: 4M (2688 × 1520) / 1080p / 720p
Sub stream: 720p / 960H / D1 / CIF

Video Compression

H.264H; H.264B; H.264M (default); H.265; MJPEG

WDR & Noise Reduction

140 dB WDR | 3D NR | SSA | HLC | BLC

Audio Features

Built-in MIC (3m pick-up) | Built-in Speaker (2 W) | 1-channel RCA output

Function & Intelligence

Edge Storage

Built-in TF card port (Supports Kingston, Dahua, SanDisk up to 256 GB)

List Management

Allowlist: 110,000 | Blocklist: 110,000

AI Recognition

Recognizes vehicle types (10 types), brands/logos (147 logos), colors (12 colors), plate number, and plate-less vehicles.

Capture & Recognition Rate

Vehicle Capture Rate ≥ 99% | Recognition Rate ≥ 96% (European plates ≥ 98%)

Deterrence & Alarms

Red/Blue warning indicator lights, custom voice audio broadcast, IVS intrusion & loitering detection.

General & Environmental

Power Supply & Consumption

12 VDC, 2 A / PoE (802.3at, Type 2, Class 4) | Max Consumption: <17 W

Protection Rating

IP67 (Waterproof/Weatherproof) | IK10 (Vandal-proof)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Dimensions & Weight

395.0 mm × 120.8 mm × 127.8 mm | Net Weight: 2.3 kg (5.07 lb)

Housing Material

Aluminum alloy body + Plastic

Product Description

Intelligent license plate recognition and vehicle identification

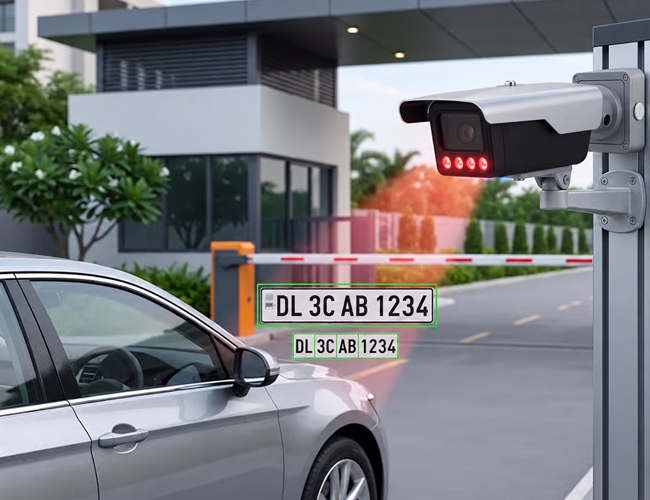

The VARITO ITC413-PW4D-IZ1 4MP ANPR Camera provides intelligent license plate recognition and vehicle identification for professional parking and vehicle access control systems. Its 4MP imaging sensor and motorized 2.7–12 mm lens capture clear vehicle and number-plate details across entrance and exit lanes, while integrated 850 nm infrared illumination supports reliable operation in low-light conditions.

For the IZ1 configuration, the recommended ANPR capture distance is approximately 3–8 metres, with vehicle detection speeds up to 80 km/h.

Designed for integrated parking access applications

Built-in AI can identify license plates as well as vehicle type, brand and color. Under recommended installation and lighting conditions, the platform specifies a vehicle capture rate of at least 99% and recognition rates of at least 96%, rising to at least 98% for European plates. Bangladesh is also included among the countries supported by the ANPR algorithm. Dahua Technology.

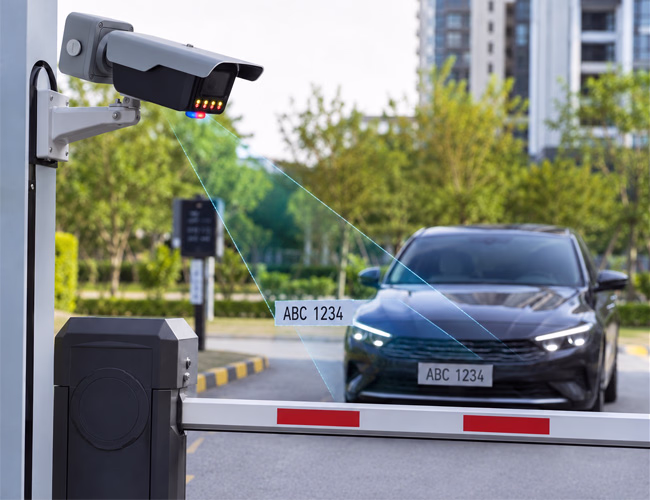

Designed for integrated parking access applications, the camera provides Wiegand, RS-485 and relay interfaces for connection with boom barriers and other access-control equipment. It also supports allow list and blocklist databases, built-in audio, active sound-and-light warning, local TF-card storage, PoE power and IP67/IK10 protection for demanding outdoor installations.
