Many Features
The movement adopts side stick installation
The movement adopts side stick installation, which is convenient for installation and compact in structure.
The main body of the movement
The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable
mech
The core adopts gear reducer
The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material
quality scm421, carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service
life far beyond worm gear transmission structure
DC24V safety voltage
DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal
injury safety is
Specification
| General Specifications | |
|---|---|
| Brand | VARITO |
| Model | VCB-DCY6L |
| Color | Black and Orange |
| Open/Close Time | 3s – 6s |
| Boom Length | 3-6 Meter |
| Remote Control Distance | Within 30m |
| Input Interface | +12V Relay Signal or ≥100ms Pulse Signal |
| Voltage | AC220V, 50Hz IP54 |
| Outdoor Waterproof | Multi-Environment adapted |
| Resistance Reaction | Lift when outer force applied |
| Multi-controlling | Remotely, Manually |
| Operating Temperature | -40°C to +80°C |
| Environmental Humidity | 90% (Non condensation) |
| Motor Movement | DC24V (Brushless Movement) |
| Barrier Size | 320mm × 240mm × 980mm |
| Barrier Weight | 60–80kg |
| Boom Type |
Straight arm / Telescopic Folding arm ≤5.5m (90°/180°) Fence arm ≤4.5m |

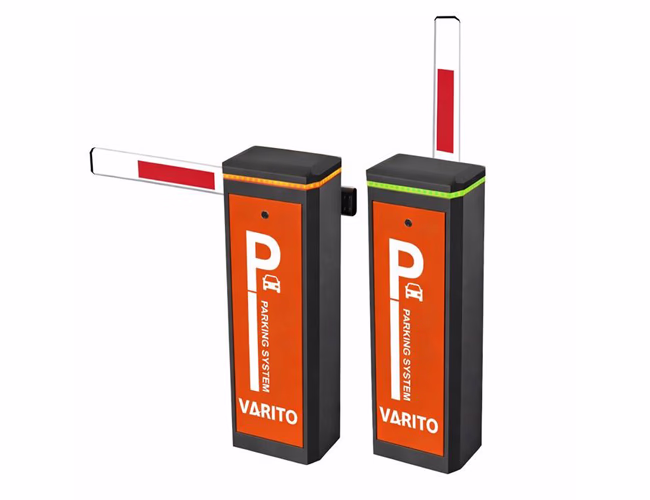

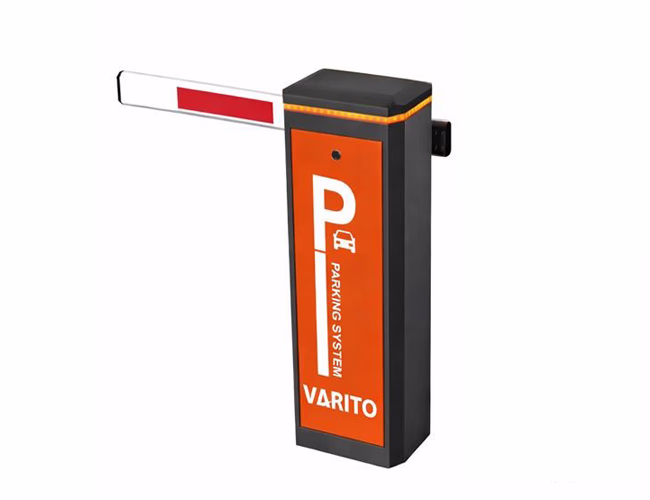

Product Description
Technological Advantages
1. High-Efficiency DC24V Brushless Motor
At the heart of the VARITO VCB-DCY6L is a DC24V brushless movement motor. This advanced motor design provides massive output torque while maintaining a compact physical footprint.
2. Advanced Gear Reducer & SCM421 Steel
Unlike low-cost barriers that rely on wear-prone worm gears, the VCB-DCY6L utilizes a three-stage reduction gear core made from premium SCM421 steel.
3. Adjustable Speed & Intelligent Deceleration
Say goodbye to the violent shaking and harsh stops that plague low-quality barrier gates. The VARITO intelligent controller features fully adjustable open/close speeds (ranging from 3 to 6 seconds).
4. Built with Safety in Mind
The internal motor operates on a safe 24-volt current, completely removing the risk of hazardous electric shock from potential structural leakage.
Seamless Access Control Integration
The VARITO VCB-DCY6L is highly adaptable and acts as a team player within larger smart ecosystems. It easily accepts standard relay and pulse signals, meaning it can seamlessly integrate with:
- Automatic boom barrier gate
- ANPR / LPR Cameras (Automatic Number Plate Recognition)
- Long-Range UHF RFID Readers & Tags
- Biometric & Face Recognition Access Control
- Barcode & QR Code Ticket Systems
- Loop Detectors & Safety Photocells
We Provide Multiple Solutions
Can integrate a variety of access control equipments

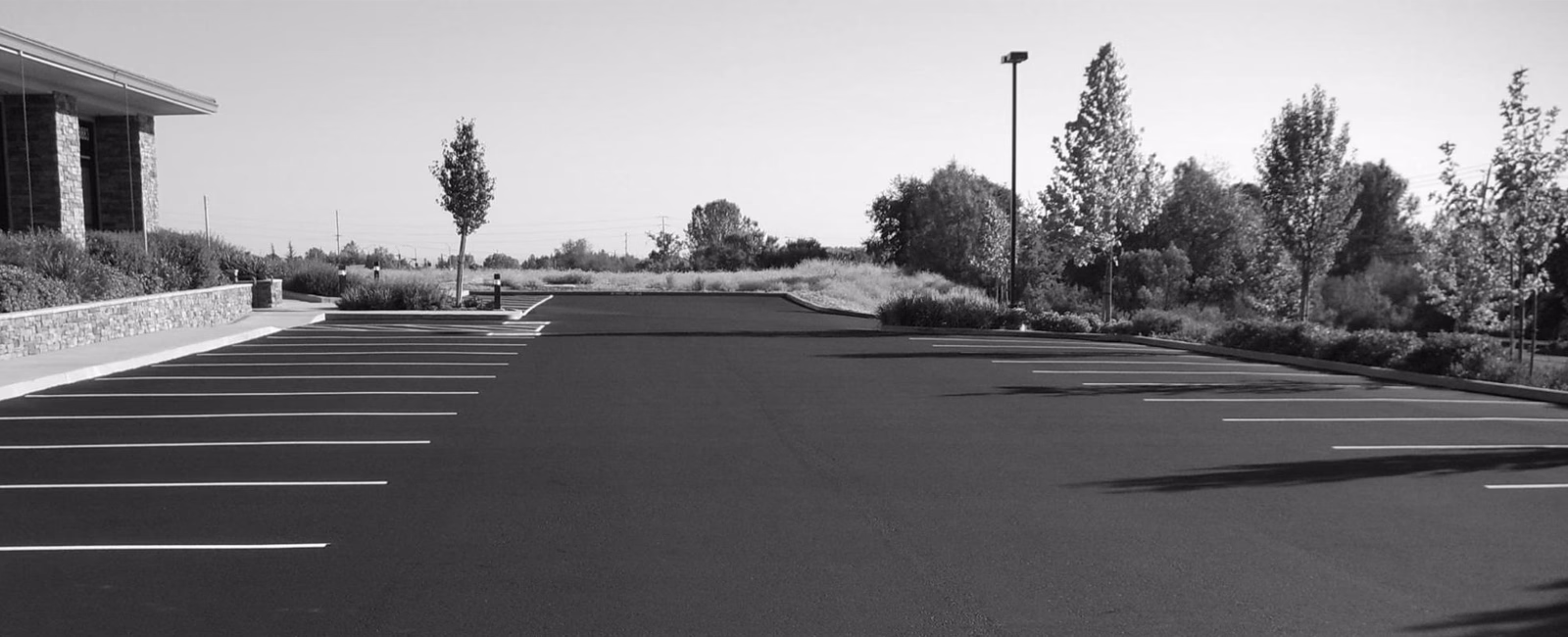

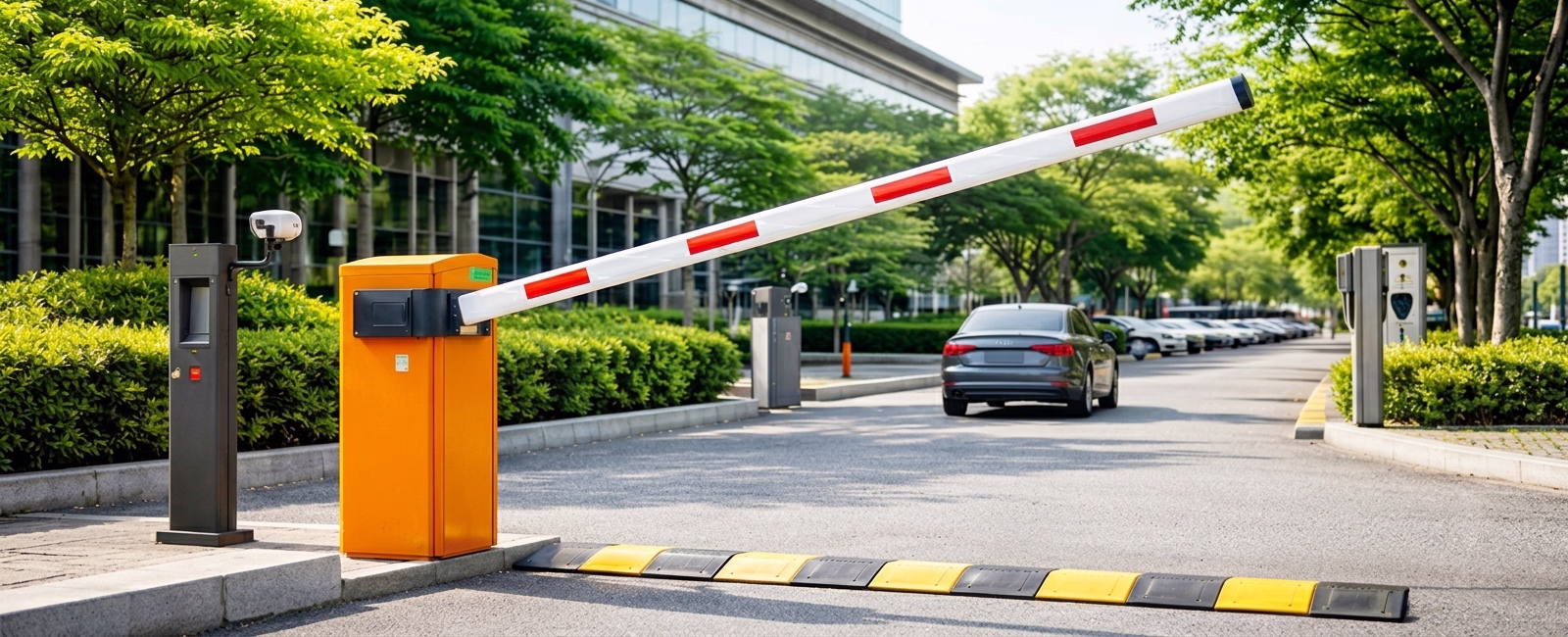

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
