Many Features
Ethernet communication
Ethernet communication is sued for Central Controller and upper computer.
It features stable
It features stable and reliable signal communication. Its transmission distance can reach 1.2km.
Industrial design
Industrial design is used overall. Through strict tests of static, lightning stroke & surge
and group pulse, the reliable use of the device is effectively guaranteed.
Industrial level design
Industrial level design is used for power. It features short circuit, overload & overvoltage
protection function..
Specification
| SPECIFICATION | |||
|---|---|---|---|
| Type | WBP-K02M | Working temperature | -20 ~ +65 |
| Dimension | 320*260*90mm | Operating voltage | AC 110～240V |
| Net weight | 3.2Kg | Power consumption | ≤2W |
| Casing material |
Cold steel and stoving varnish |
Communication mode | 1-circuit CAN 1-circuit 10/100 |
| Node capacity | 25 | Communication distance | ≤1000m (RVSP 1.0*2) Ethernet: 100m |
Product Description

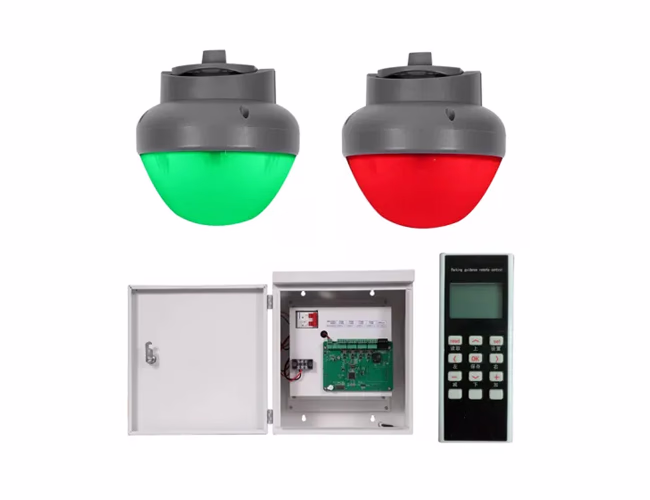

Central Controller for Intelligent Parking Guidance
The central controller is the main collection and control center of the parking guidance system. It receives parking occupancy information from the connected field devices and helps update LED guidance displays with real-time available-space information.
In a smart parking project, the PGC-400 plays an important role between parking bay detection devices and the display or management layer. When parking spaces become occupied or available, the system can update parking guidance information quickly so drivers can follow the correct direction inside the car park.
This makes the VARITO PGC-400 suitable for projects that need a reliable parking guidance controller, parking lot central controller, indoor parking guidance controller or smart parking system controller.
Key Features of VARITO PGC-400 Central Controller Box
Supports up to 25 Node Controllers: One PGC-400 Central Controller can control up to 25 node controllers. This makes it suitable for structured parking guidance networks across different areas, floors or zones inside an indoor parking facility.
CAN and Ethernet Communication: The PGC-400 supports CAN communication for field-level controller connection and Ethernet communication for the upper computer or management system. This communication structure helps connect parking guidance devices with display and software systems in an organized way.
Long-Distance Communication Support: The controller supports CAN communication distance up to 1000m and Ethernet communication distance up to 100m. This is useful for larger parking projects where controllers, display screens and management systems may be installed across different locations.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images

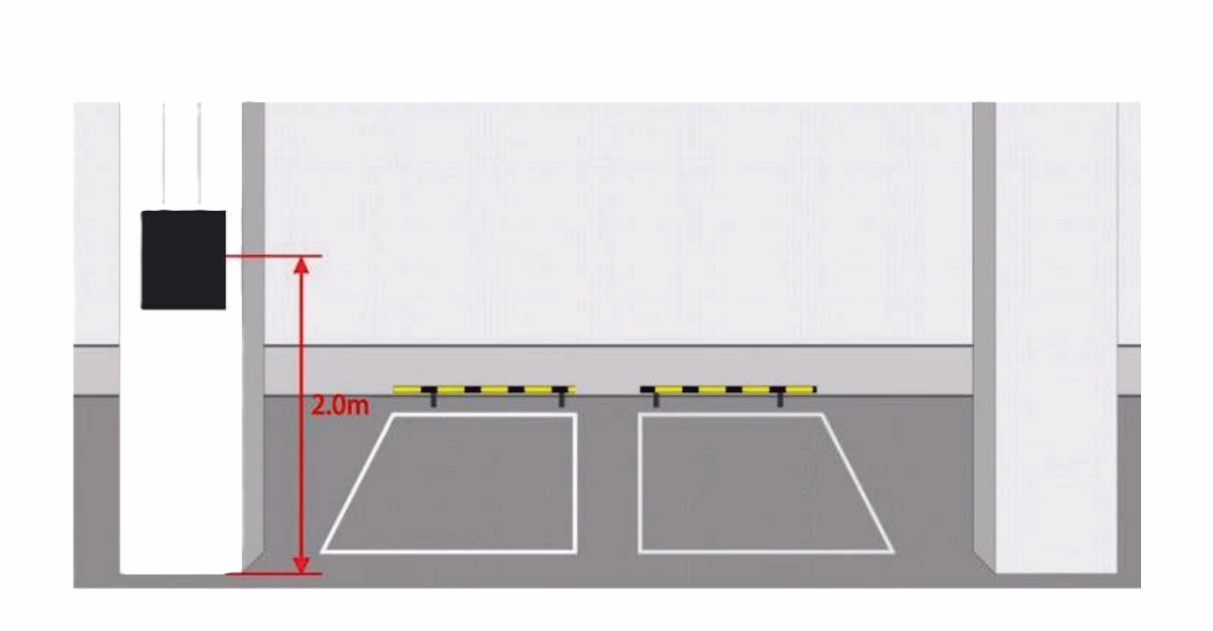

Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
