Many Features
Parking detector
Parking detector is integrated with the indicator light. It is installed right above each
parking. Compared to the traditional split-type ultrasonic parking guidance system.
The Integrated Ultrasonic Sensor
The Integrated Ultrasonic Sensor is directly installed on the cable tray right above each
parking space, thus the shielding of the upright is effectively avoided and the installation
effect is more beautiful.
Two-way independent receiving
Two-way independent receiving and sending ultrasonic circuit design is used for the
Integrated Ultrasonic Sensor. It effectively covers the detection zone. Meanwhile, it works
independently with two-way switching and redundant backup.
Various combined judgment modes
Various combined judgment modes are used for the receiving circuit to enhance the
anti-interference and detection stability of the equipment.
Specification
| SPECIFICATION | |||
|---|---|---|---|
| Type | WBP-T01F | Communication Mode | RS485 |
| Operating Voltage | DC 10~28V (Rated 24V) | Communication Interface | 2 RJ45 Ports |
| Power Consumption | <1W | Communication Distance | ≤300m |
| Working Temperature | -20°C ~ +65°C | Supply Power Distance | ≤150m |
| Storage Temperature | -40°C ~ +85°C | Response Time After Parking | <2s |
| Environment | 40%~70% RH | Indicator Light Type | Red and Green Two-tone High-light LED |
| Dimension | Φ126 × 125mm | Installation Location | Horizontal 0~0.5m Vertical 2~3m (Advised 2.2~2.8m) |
| Net Weight | 180g | Ranging Error | 2cm |
| Appearance Material | Grey ABS Engineering Plastics | Detection Accuracy | >99.9% |
Product Description
Smart Ultrasonic Parking Sensor for Real-Time Bay Detection

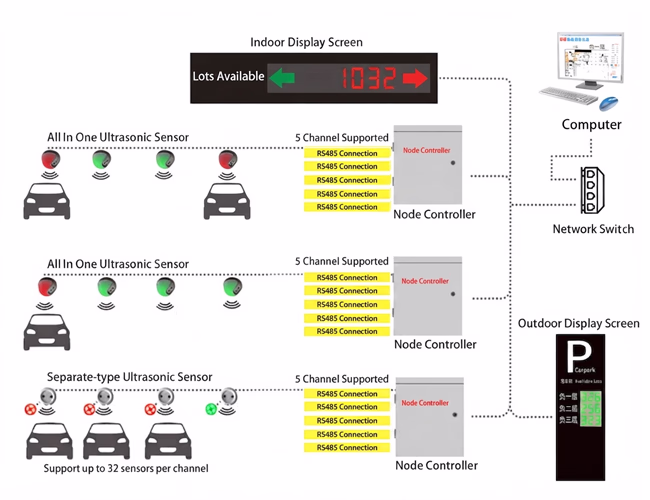

The VARITO IUS-200 uses ultrasonic ranging technology to detect whether a parking space is free or occupied. Once the parking status changes, the sensor updates the indicator light and sends parking data to the regional controller through RS485 networking. This makes the IUS-200 suitable for projects that need a reliable parking occupancy sensor for real-time parking space detection.
Unlike traditional split-type parking guidance systems, the IUS-200 integrates the sensor and indicator into one device. This helps simplify installation, reduce visual clutter and create a cleaner, more professional appearance inside the parking facility.

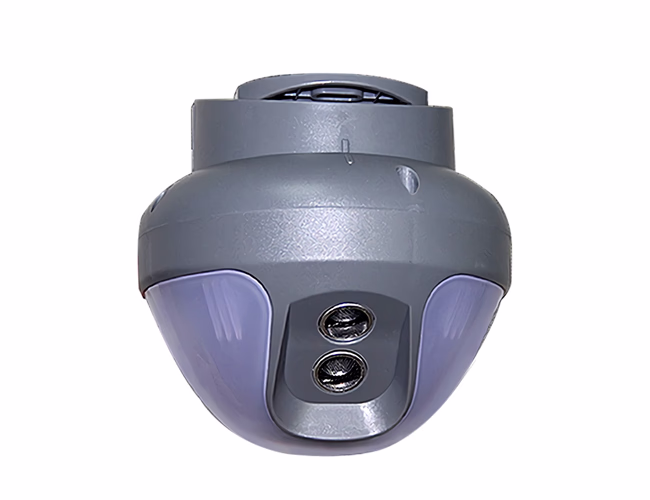

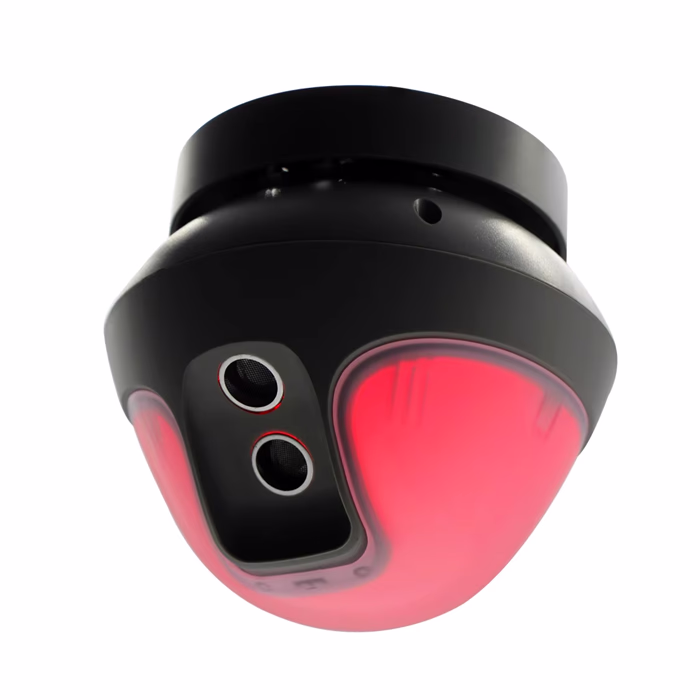

Integrated Sensor and Indicator Light Design

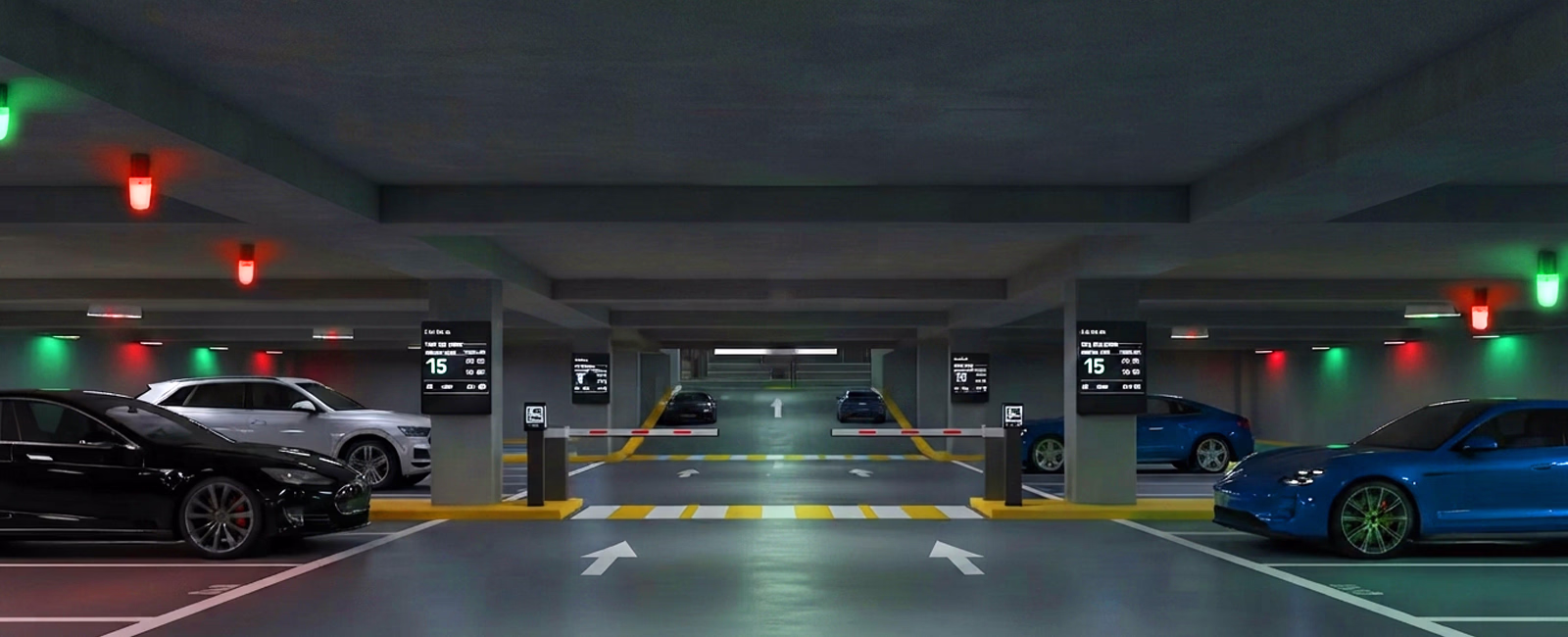

Each IUS-200 unit includes an ultrasonic detector and red/green LED indicator. When a parking bay is available, the indicator can show a clear free-space signal. When a vehicle occupies the bay, the status changes automatically. This visual guidance helps drivers find empty spaces faster without circling through every lane.

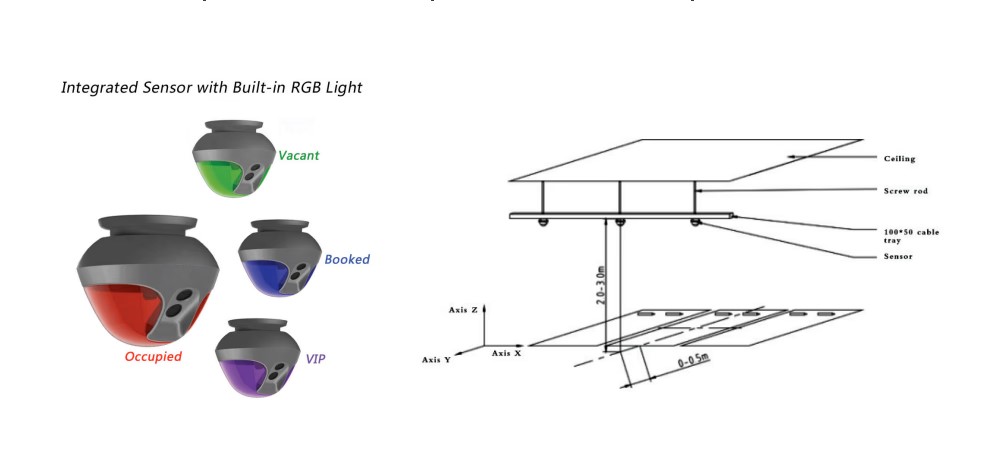

The sensor is installed directly above the parking line or bay area. This overhead position helps the device detect vehicle presence accurately while keeping the installation neat and organized. The recommended installation height is suitable for indoor parking garages, basement parking areas and multi-storey parking facilities.
The IUS-200 is built for professional parking guidance projects where performance, stability and clear visual indication matter. It supports parking operators, system integrators and facility owners who need a scalable ultrasonic parking guidance system for modern car parks.

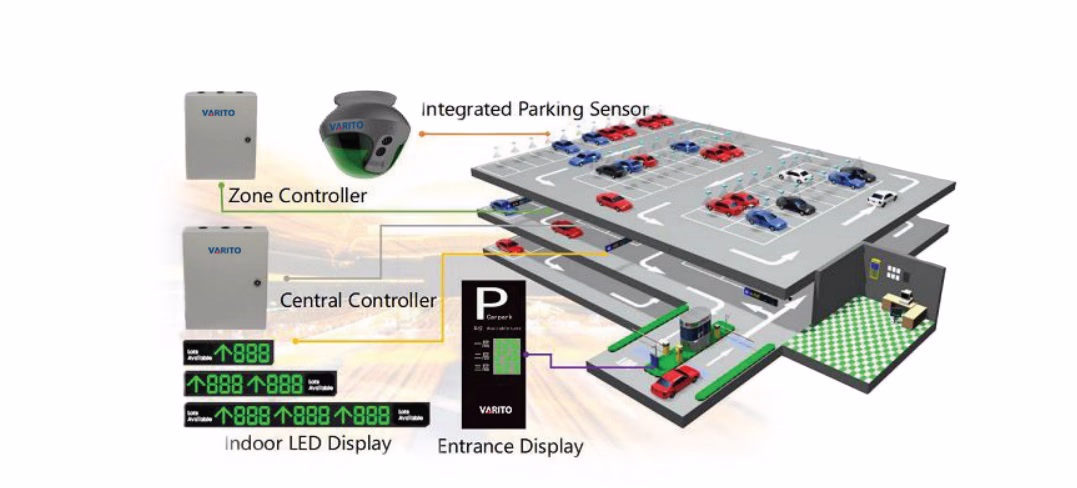

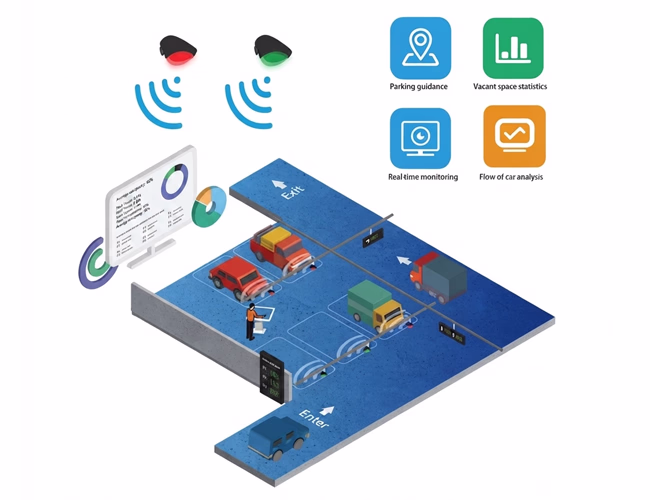

The sensor detects the occupied or unoccupied status of each parking bay in real time. This information can be used by parking guidance displays, central control units and management software to guide drivers toward available spaces.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
