Many Features
Auto bounce back function
Built-in sensor can detect when the arm hits an obstacle
Intelligent limited sensor
The limited sensor can check the open & close position automatically
Position memory function
The motor can remember a limited position
Lower working temperature
No thermal protection even we don’t add a fan to cool the motor
Specification
| Model No. | VCB-DC4 | VCB-DC6 | VCB-DCF4 |
|---|---|---|---|
| Max Beam Length | 4M | 6M | 4M |
| Opening/Close Time | 4s | 6s | 6s |
| Framework Material | 1.8mm Cold-roll sheet | ||
| Beam | Aluminum alloy | ||
| Motor | 85W to 140W second-stage brushless copper DC motor with variable speed | ||
| Mechanical Structure | Left or Right | ||
| Input Interface | Photo cell, loop detector, parking system | ||
| Ingress Protection | IP54 level | ||
| Working Temperature | -40°C to +85°C | ||
| Power Supply | AC220V/110V, 50/60Hz | ||
Product Description
Built for Superior Performance
1. Second-Stage Brushless Copper DC Motor
The structural core of the VCB-DC6 features a highly efficient 85W to 140W second-stage brushless copper DC motor with variable speed.
2. Lower Working Temperature & No Overheating
One of the engineering highlights of this system is its thermal efficiency. The VCB-DC6 features built-in architecture allowing for a lower working temperature without needing an external cooling fan.
3. Smart Sensors & Position Memory
Auto Bounce Back Function: Safety is integrated at a foundational level. If the boom arm contacts an unexpected obstacle or vehicle while closing, the built-in sensor triggers an immediate stop and reverse maneuver to minimize damage.
Ultimate Integration

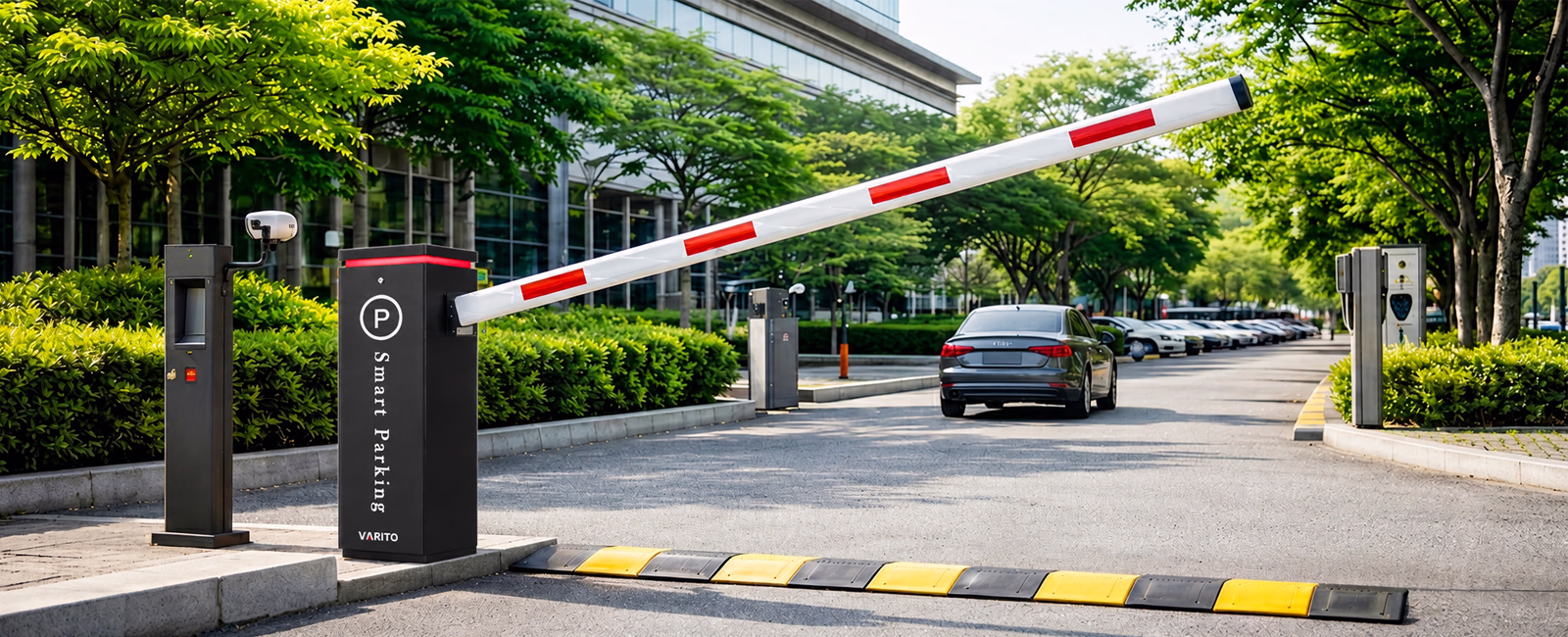

The VARITO VCB-DC6 is a highly flexible team player for automated operations. Its standard input interfaces allow for seamless wiring directly into structural parking automation grids. It pairs flawlessly with:
RFID Card Reader Systems (Both long-range UHF and short-range proximity readers)
ANPR / LPR Cameras (License Plate Recognition)
Under-Vehicle Inspection Arrays
Biometric & Face Recognition Access Terminals
Magnetic Loop Detectors & Safety Photocells
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
