Many Features
Auto bounce back function
Built-in sensor can detect when the arm hits an obstacle
Intelligent limited sensor
The limited sensor can check the open & close position automatically
Position memory function
The motor can remember a limited position
Lower working temperature
No thermal protection even we don’t add a fan to cool the motor
Specification
| Model No. | VCB-DCN4 | VCB-DCN6 | VCB-DCNF4 |
|---|---|---|---|
| Max Beam Length | 4M | 6M | 4M |
| Opening/Close Time | 4s | 6s | 6s |
| Framework Material | 1.8mm Cold-roll sheet | ||
| Beam | Aluminum alloy | ||
| Motor | 65W to 140W second-stage brush-less copper DC motor with variable speed | ||
| Mechanical Structure | Left or Right | ||
| Input Interface | Photo cell, loop detector, parking system | ||
| Input | 12V relay signal or Pulse Wide >100MS | ||
| Shell Material | A3 steel | ||
| Shell Thickness | 2.0mm | ||
| Base Frame | Cast Iron | ||
| Push Button | Support | ||
| Remote Control | Two button remote transmitter, Distance 30m | ||
| Control panel connector | Traffic light connector, pressure wave connector, 485/422 connector | ||
| Ingress Protection | IP54 level | ||
| Housing color keeping | 3–5 years | ||
| MCBF | 5 million time | ||
| Weight | 55 to 68KG | ||
| Dimension | ~350 × 282 × 1000mm | ||
| Working Temperature | -40°C to +85°C | ||
| Relative Humidity | ≤95% | ||
| Power Supply | AC220V/110V, 50/60Hz | ||
| Functions | Remote control, Solid and durable structure, strong bearing capacity | ||
Product Description

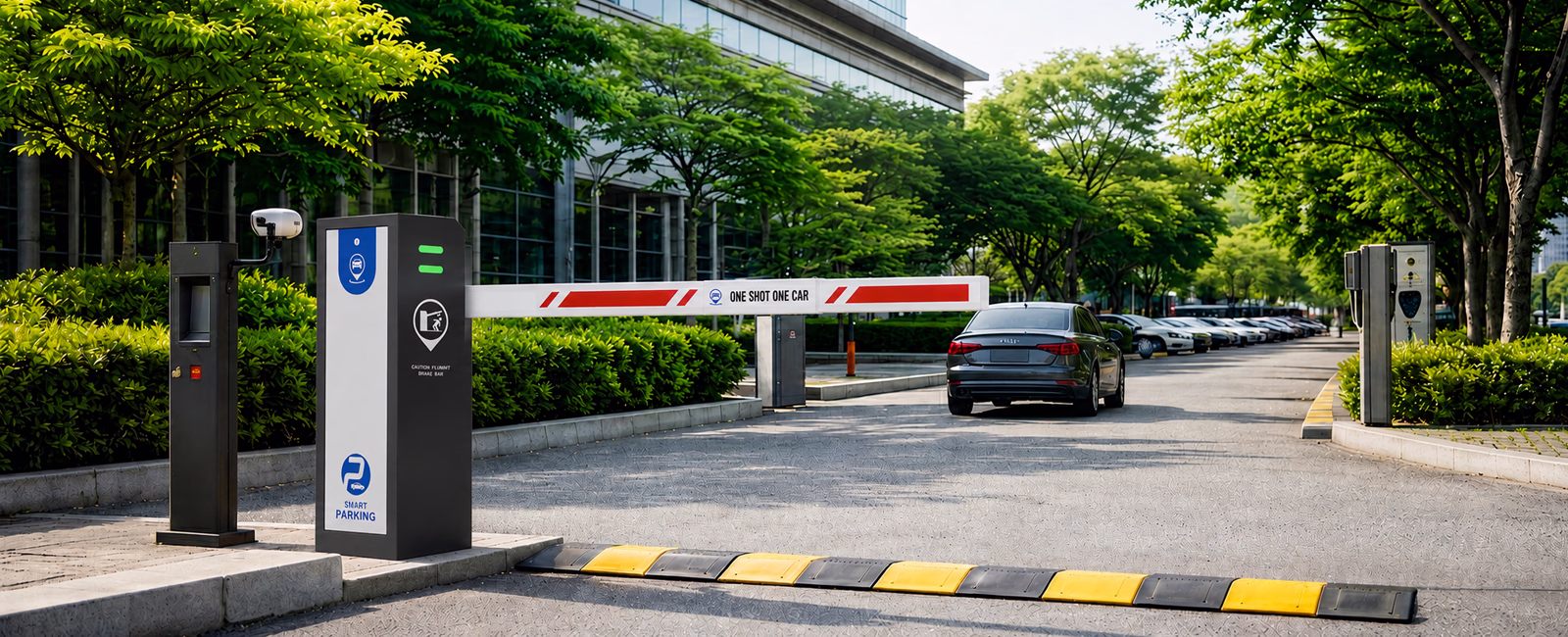

Varito VCB-DCN Boom Barrier
1. Ultra-Long Lifespan (3 Million Cycles)
While standard budget barriers fail after a few hundred thousand operations, the VCB-DCN is built for heavy-duty industrial endurance.
2. High-Precision DC24V Brushless Motor
The VCB-DCN features a state-of-the-art DC24V brushless motor. Brushless technology drastically reduces mechanical wear and tear, operates quietly, and generates high torque.
3. Precision Angle Sensor & Steady Movement
Unlike older barriers that rely on mechanical limits that drift over time, the VCB-DCN utilizes a high-precision Angle Sensor.
4. Comprehensive Safe-Guard Functions
If the arm encounters any obstacle while lowering, built-in sensors detect the force instantly and raise the arm to prevent vehicle damage or personal injury.
Multi-System Compatibility & Integration
The VCB-DCN functions as a highly adaptable node within any security network. Equipped with standard input interfaces (+12V Relay or 100ms Pulse signals), it integrates effortlessly with:
ANPR / LPR Systems: For completely automated, license plate-driven entry and exit.
UHF Long-Range RFID Readers: Allowing hands-free access for registered staff, residents, or VIP fleet vehicles.
Ticket & Card Dispensers: For paid commercial parking structures.
Safety Loop Detectors & Photocells: For added layers of vehicle presence detection.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
