Many Features
Auto bounce back function
Auto bounce back function. Aditional sensor can detect when arm hits obstacle
Auto slow down function
Auto slow down function. Barrier arm will auto slow down when it will fully close or open.
Intelligent limited sensor
Intelligent limited sensor. Limited sensor can check open & close position automatically. No need adjust it by hand.
Lower working temperature
Lower working temperature. No thermal protection even we don’t add fan to cool motor
Specification
| General Specifications | |
| Brand | VARITO |
| Model | EF-VM010 |
| Color | Black and Gray |
| Open/Close Time | 3s – 6s |
| Boom Length | 4–6m |
| Remote Control Distance | Within 30m |
| Input Interface | +12V Relay Signal or ≥100ms Pulse Signal |
| Voltage | AC220V, 50Hz | IP54 |
| Outdoor Waterproof | Multi-Environment adapted |
| Resistance Reaction | Lift when outer force applied |
| Multi-controlling | Remotely, Manually |
| High Integrated Feature | Accessories Available and Compatible |
| Open-Priority | Remotely Lift in any case to encounter emergency |
| Waterproof Grade | IP54 Rating |
| Operating Temperature | -40°C to +80°C |
| Angle Sensor | Instant boom position capture, high precision, steady movement |
| Texture Strips Surrounded | Precaution to any possible damage |
| Environmental Humidity | 90% (Non condensation) |
| Motor Movement | DC24V (Brushless Movement) |
| Barrier Size | 320mm × 240mm × 980mm |
| Barrier Weight | 60–80kg |
| Boom Type |
Straight arm / Telescopic Folding arm ≤5.5m (90° / 180°) Fence arm ≤4.5m |

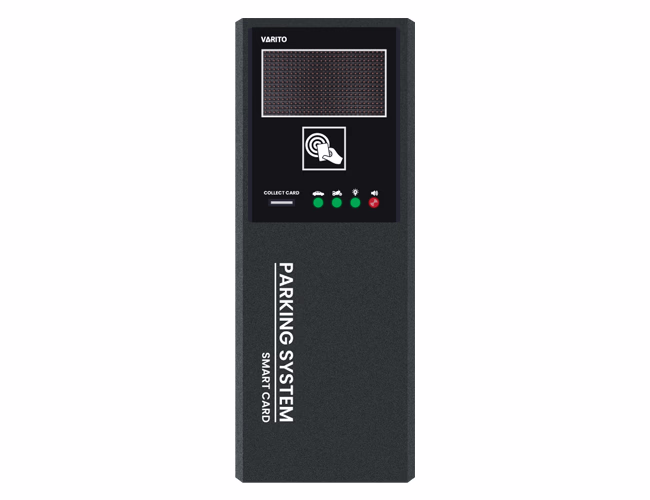

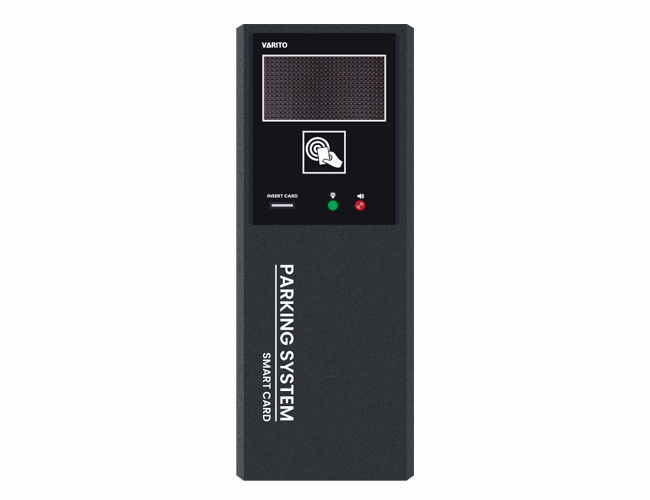

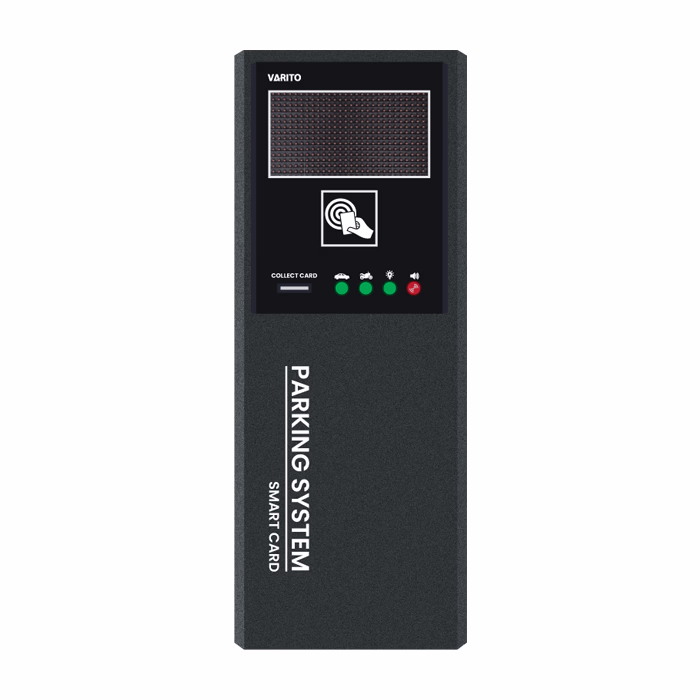

Product Description
Standout Features
1. High-Speed Thermal Ticket Dispensing & QR Integration
Equipped with an industrial-grade thermal printer cutter, the EF-VM010 prints and cuts barcode or QR code tickets in fractions of a second.
2. Multi-Card Reader & Smart IC/ID Support
While casual drivers receive a printed paper ticket, registered visitors, monthly pass holders, and corporate employees can swipe their IC, ID, or long-range RFID proximity cards directly at the terminal for instant entry.
3. All-Weather Heavy-Duty Chassis
Built to withstand punishing outdoor conditions, the internal electronics are protected by a rugged, industrial-grade steel enclosure.
4. Interactive Guidance & Voice Prompts
To minimize driver confusion, the VARITO EF-VM010 features a clear, high-contrast display panel accompanied by a built-in voice prompt module.
Seamless Integration with Modern Parking Ecosystems
The EF-VM010 acts as the brain of your entry lane. Thanks to its native TCP/IP communication protocols, it syncs instantly with central parking management software. It allows for effortless hardware integration with:

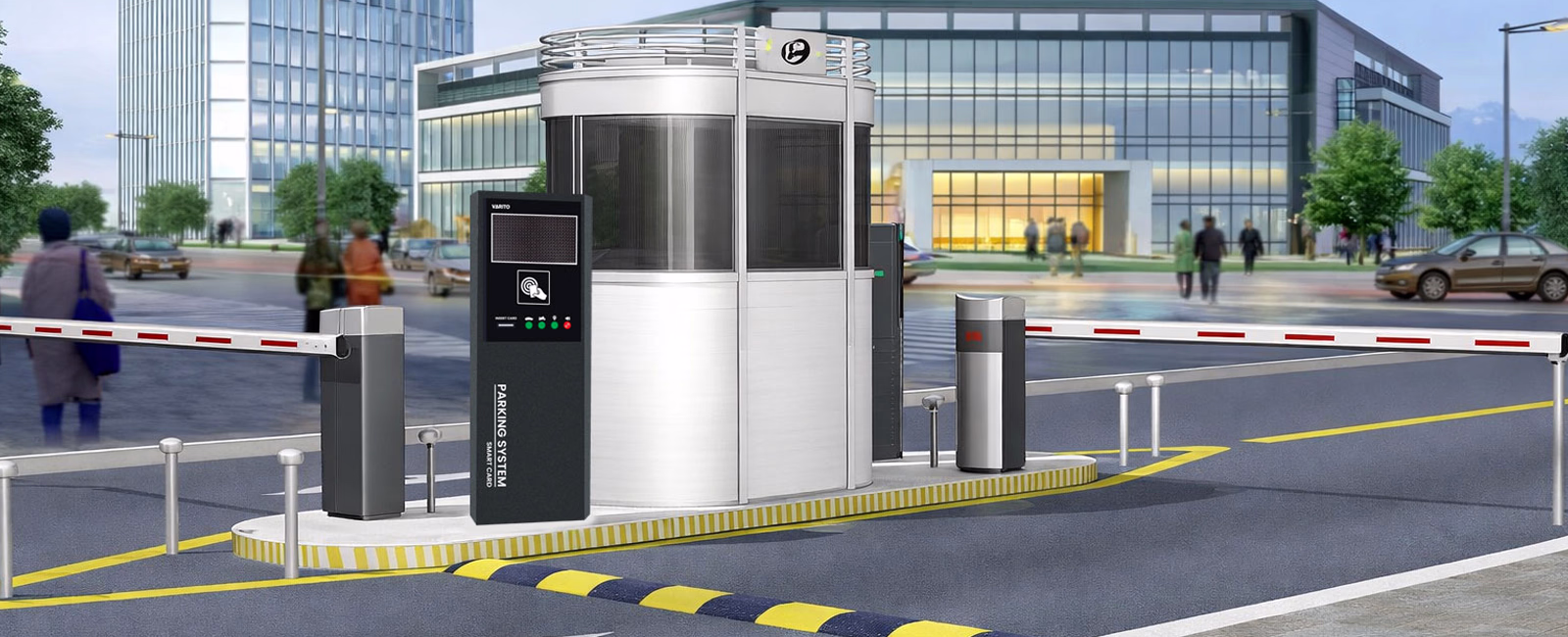

- Automatic Boom Barrier Gates: Instantly triggers the barrier to lift once a ticket is pulled or a card is authorized.
- Ground Loop Detectors: Ensures a ticket can only be issued if a vehicle is physically present over the loop, preventing accidental ticket wasting or fraud.
- ANPR / LPR Systems: Pairs ticket data directly with license plate images for elite security and anti-theft tracking.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
