Many Features
Application

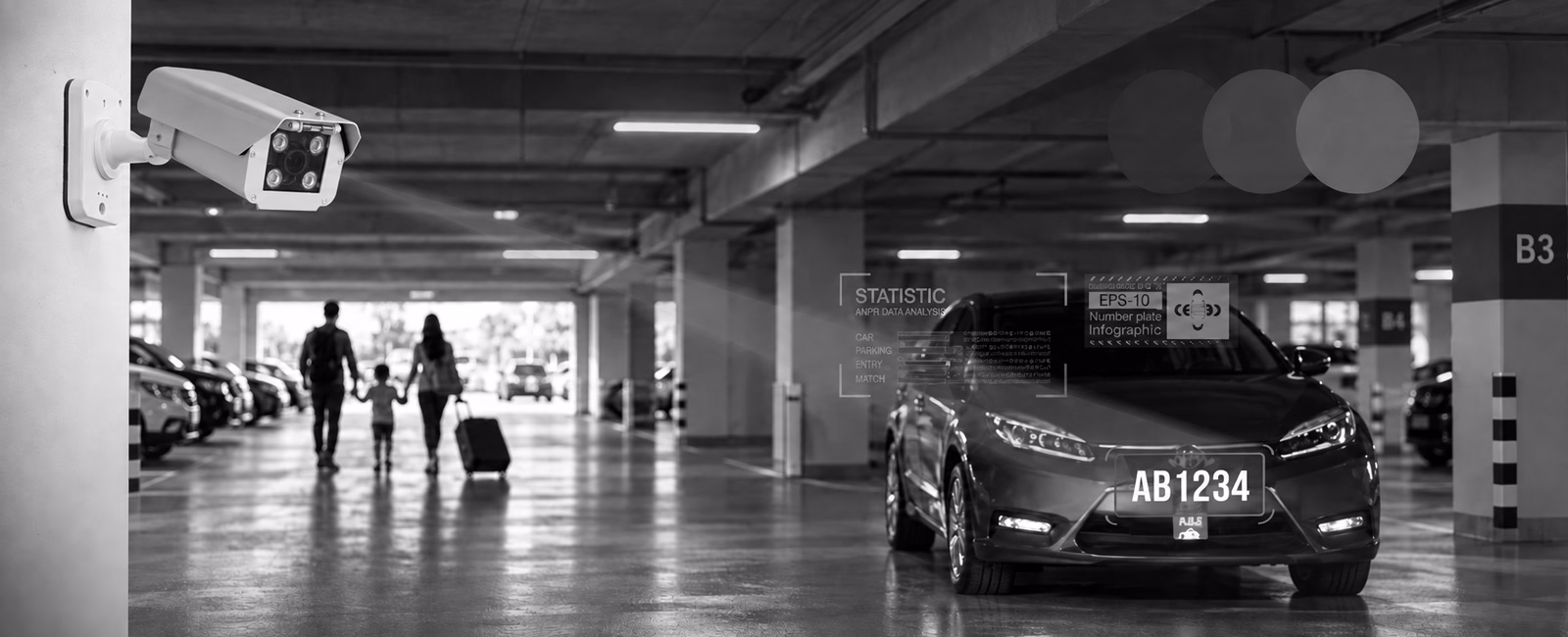

Central Parking Management, Commercial & Multi-Tenant Garages
Safety Sensors
Safety Sensors & Induction Loops
Hardware configurations
4MP (2688 × 1520), 1/2.8″ CMOS, Motorized Vari-focal
Recognition Distance
3 – 10 Meters
Specification
| SPECIFICATION | ||
|---|---|---|
| Camera | Model | VAR-LCVT |
| Application | Parking Lot, Car washing, etc. | |
| Ports | TCP/IP Ports, Power supply ports | |
| Hardware Configuration | Lens (2.8-12mm): 1pc Waterproof shell: 1pc Power supply: 1pc |
|
| Video Input | Sensor | 1/2.8″ CMOS |
| Min Illumination | 0.1 lux color | |
| Time of Exposure | 0-1ms or customize | |
| Lens | Variable lens, manual focus 2.8-12mm | |
| Video Compress | Compress Standard | H.264 |
| Compress Bit Rate | 512-5000kbps | |
| Dual-stream | Main: 1080P/720P/D1/CIF Sub: D1/CIF |
|
| Interface | Power Supply | 12V/2A, Support 9-15V DC |
| Internet | One RS485 | |
| TF Card | Default 8GB SD/TF card, extend capacity to 128G | |
| USB | USB Type A | |
| IO Interface | One in one out | |
| Audio | One in one out | |
| Reliability | IP Class | IP66, IK10 |
| Temperature | -20°C ~ +70°C | |
| Power Consumption | <7W | |
| Image ISP | Image Set | Brightness, Contrast, Saturability, Definition, Exposure |
| Low-light | Support | |
| 2D/3D Denoise | Support | |
| Wide Dynamic | Support | |

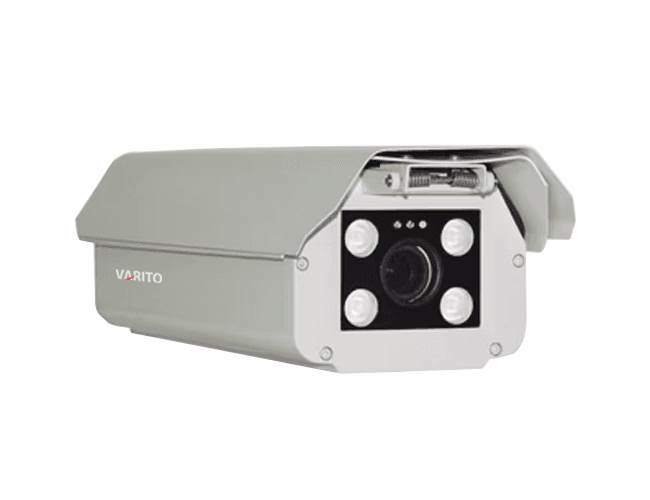

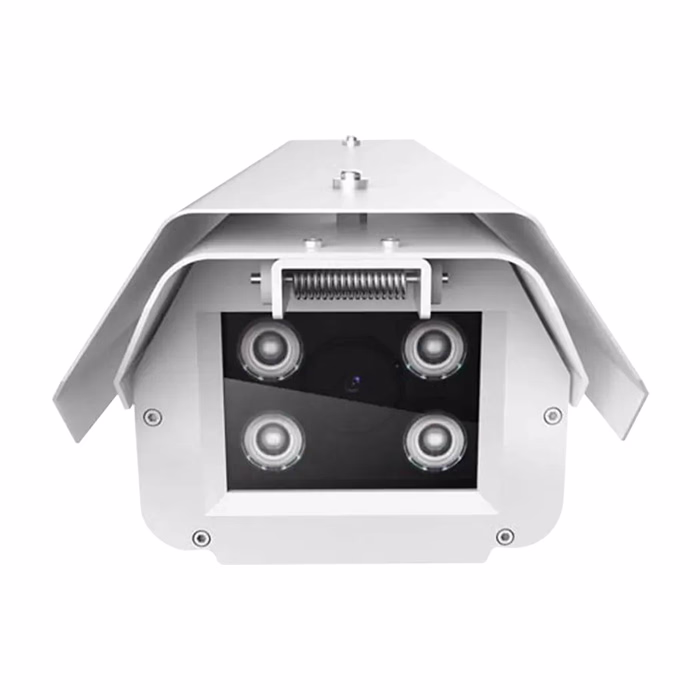

Product Description
Ultra-Clear 4MP Resolution with 1/2.8″ CMOS Sensor
The VAR-LCVT is powered by a 1/2.8″ CMOS sensor outputting an effective resolution of 2688 × 1520 pixels. This 4-megapixel clarity ensures sharp contrast on embossed and flat plate characters, improving OCR (optical character recognition) read accuracy across diverse lighting environments.
Motorized Vari-Focal Lens for Remote Tuning
Setting up and calibrating the camera’s field of view is effortless thanks to its motorized vari-focal lens. Installers can adjust zoom and focal sharpness remotely via the control interface, eliminating tedious manual lens adjustments on mounting poles or gantries.
Precision Lane Capture up to 35 km/h
Calibrated specifically for entrance and exit lanes, the VAR-LCVT accurately detects and logs plates on vehicles approaching at speeds up to 35 km/h.

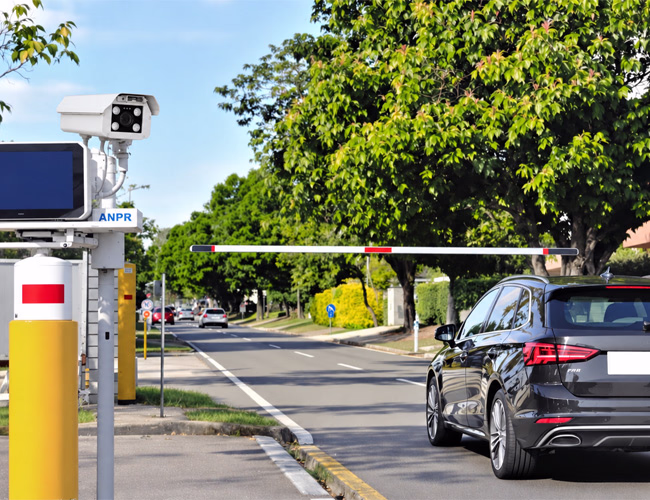

![ANPR Camera](https://varito.de/wp-content/uploads/2026/09/VARITO-VAR-LCVT-4MP-ANPR-Camera-Left.avif")
Optimized 3 to 10 Meter Recognition Zone
The optical focus and illumination range are engineered for a working distance of 3 to 10 meters. This range matches standard boom barrier placement, ensuring the plate is read and validated well before the vehicle reaches the gate for uninterrupted throughput.

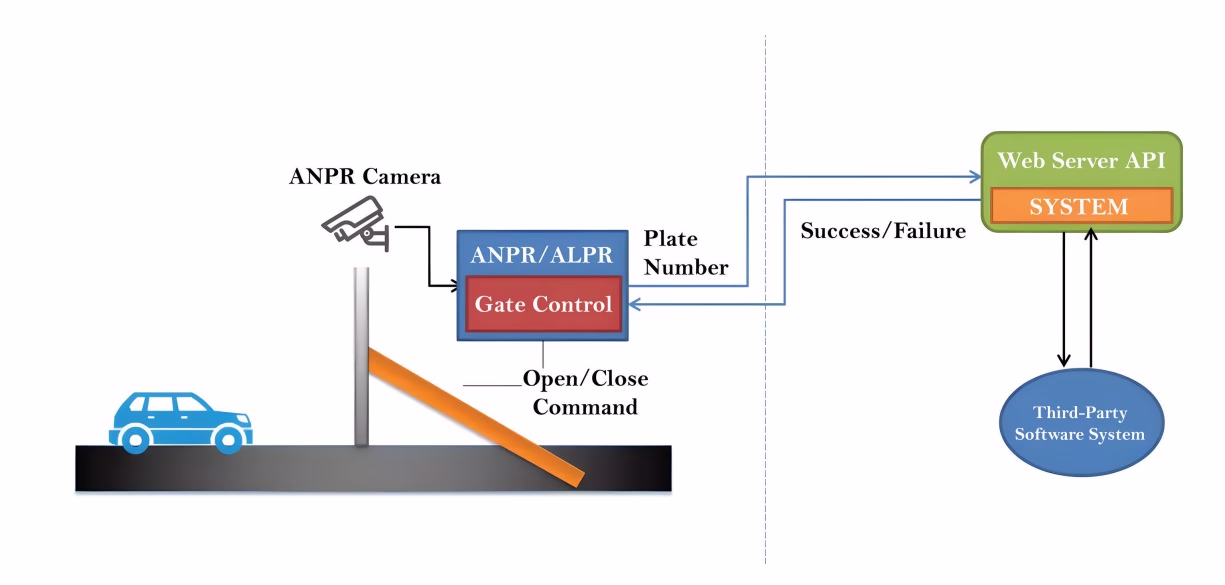

Automatic Boom Barrier Gates
Transmits instant relay triggers to lift gates upon recognizing authorized whitelist vehicles.
Under-Vehicle Surveillance Systems (UVSS)
Pairs license plate data directly with chassis inspection footage for audit tracking.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

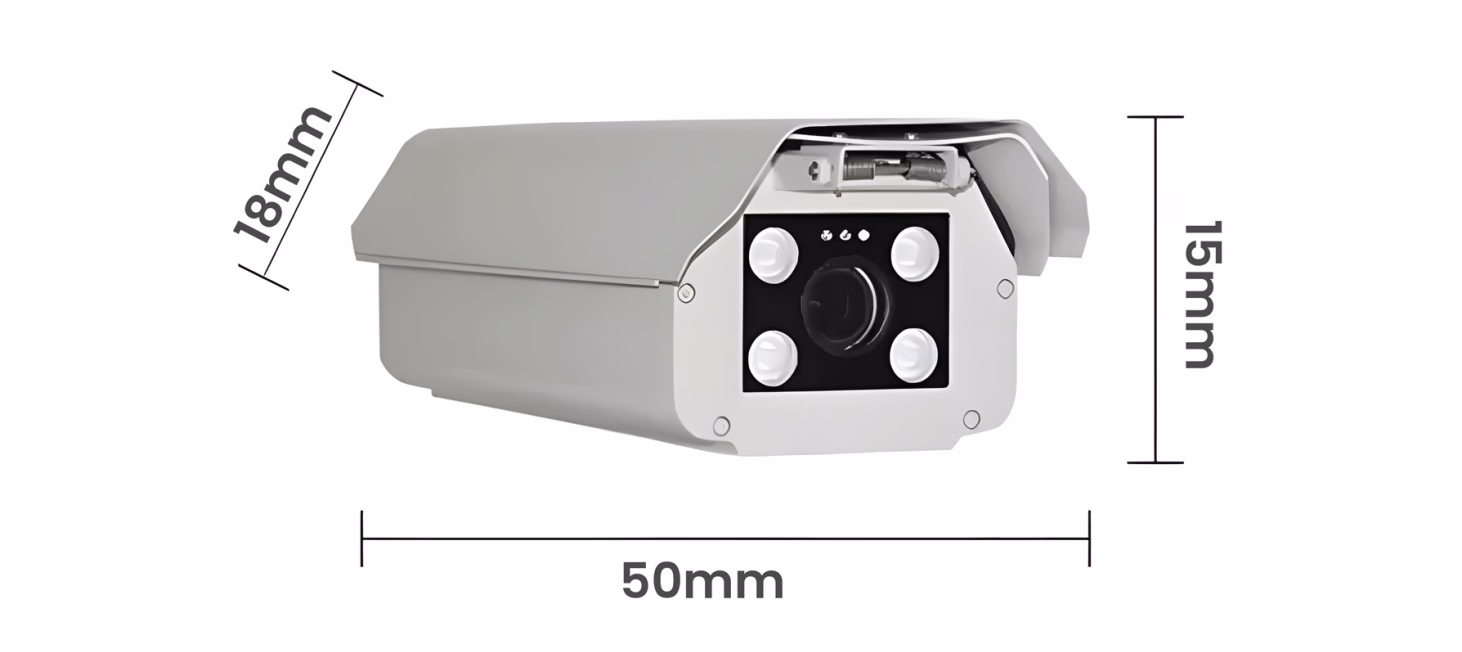

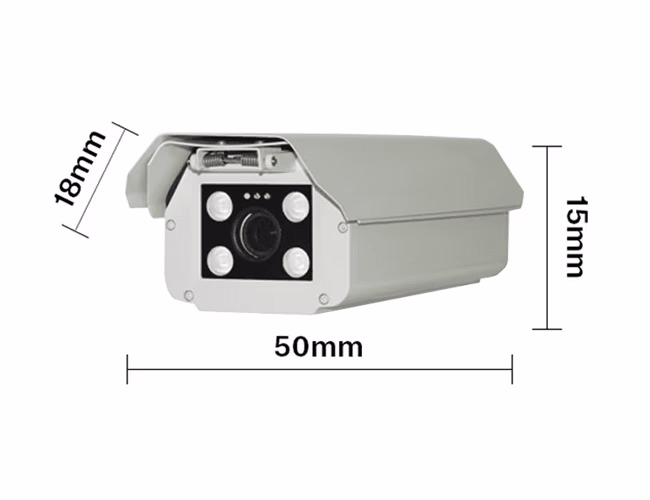

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
